1-10 Engine Mechanical Industrial 1.6L
Crank Drive, Cylinder Block

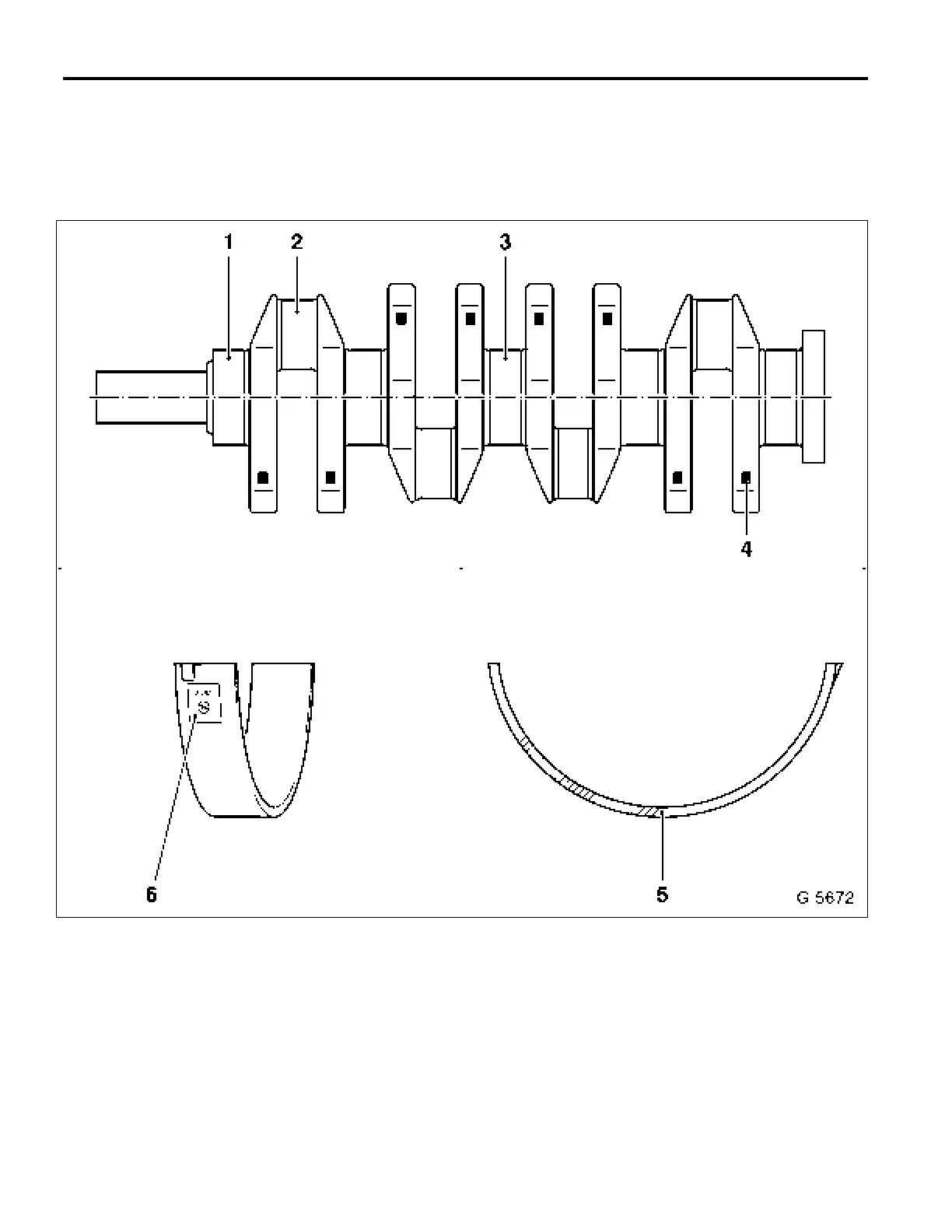

Illustration
1 Main Bearing Journals
2 Con–rod bearing journal
3 Main Bearing Journals (Guide Bearing)
4 Crankshaft color code
5 Bearing shell color code
6 Bearing shell identification
Crank Drive, Cylinder Block
