1-58 Engine Mechanical Industrial 1.6L
Important: Re-install the rod cap to the rod when the
piston is removed from the engine block. The mating
surfaces must be protected from damage.
Inspect
1. Check all parts, clean and if necessary, replace. Re-
place piston – see operation Piston, Replace.
Adjust
Before inserting con–rod journal of crankshaft, set to BDC
position and coat with engine oil.

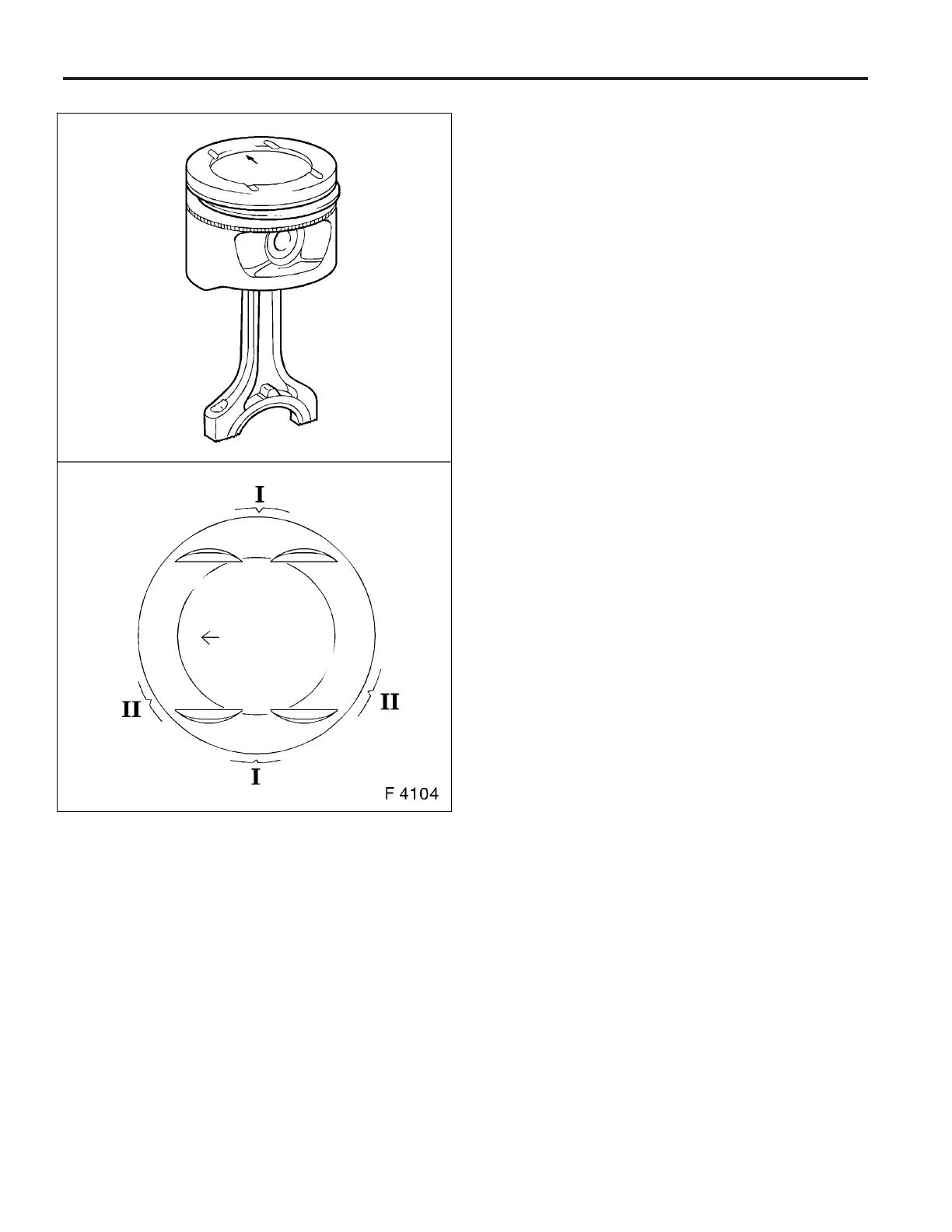

1. Adjust piston ring gaps:
Oil scraper ring II: offset ring gaps of the steel band rings
each 25 to 50 mm to the left or right of gap in intermedi-
ate ring.
Piston rings I: offset ring gaps by approx. 120°. Second
piston ring with identification ”TOP” uppermost.
