Industrial 1.6L Engine Mechanical 1-59
Installation
1. Coat piston rings with engine oil and compress with
piston ring pliers.

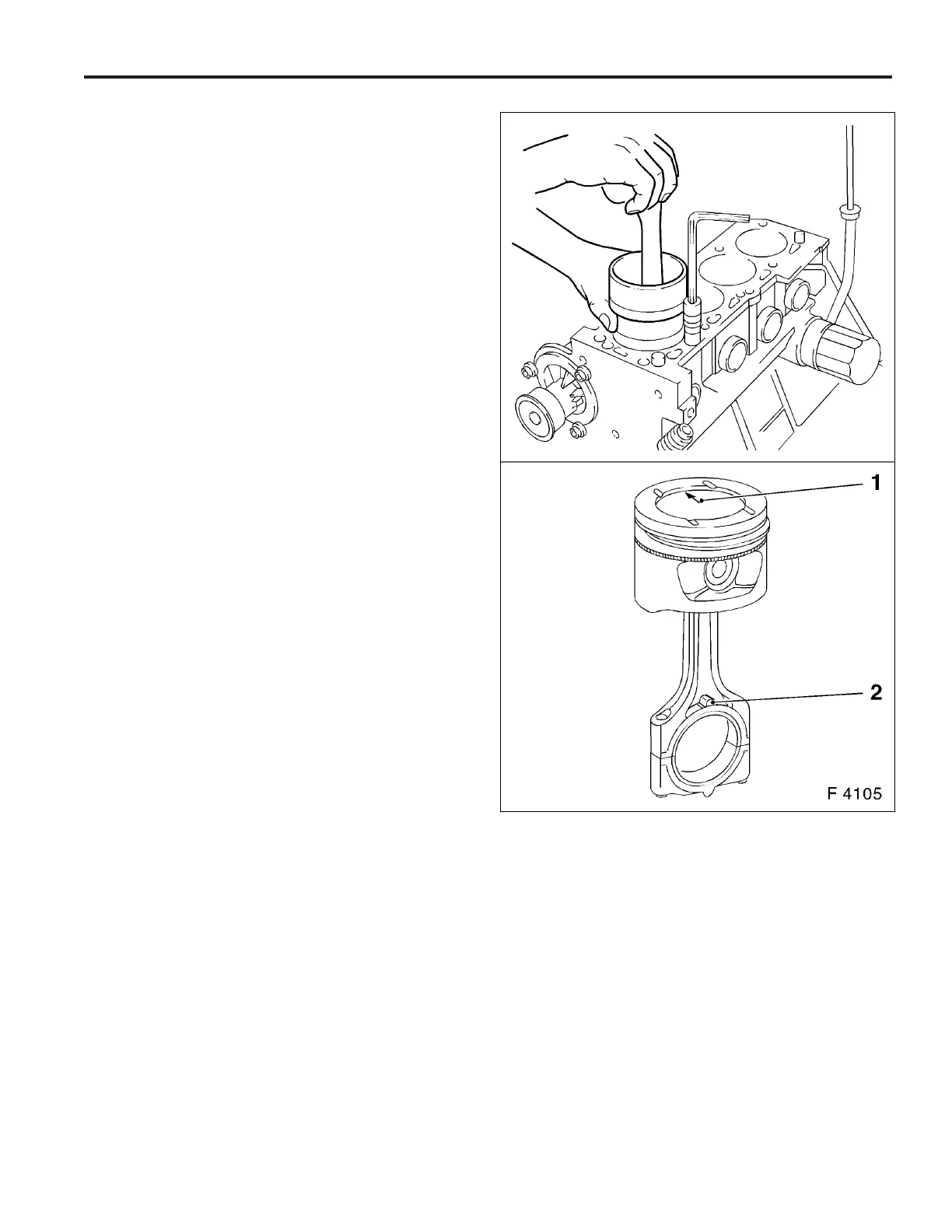

2. Push piston into cylinder bore with hammer shaft.
Important: Note installation position of piston and con–
rod. Arrow (1) on piston head points to engine timing side,
bead (2) on con–rod points to rear side of engine.
