1-60 Engine Mechanical Industrial 1.6L
Installation Procedure
Note: Note sequence of con–rod bearing caps.

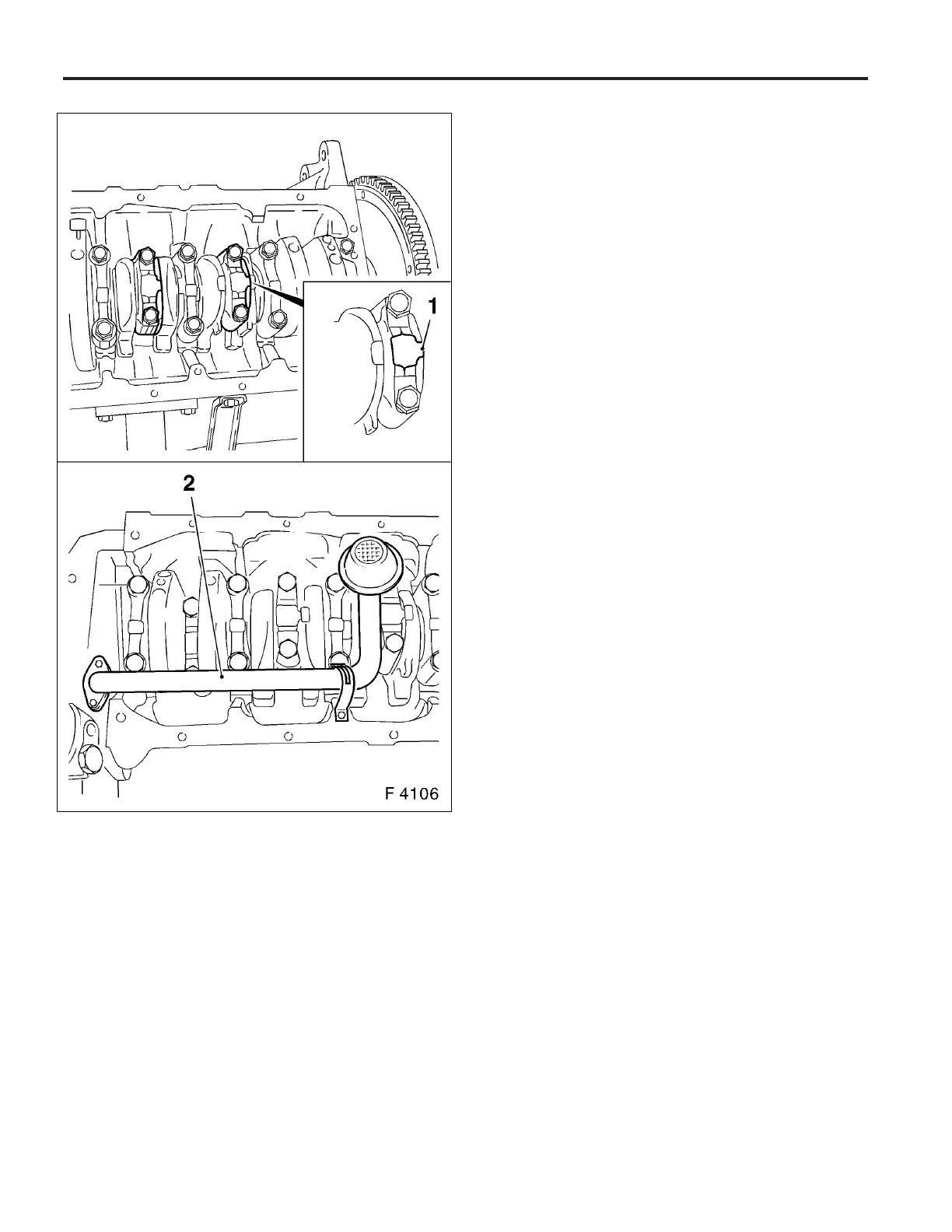

1. Install con–rod bearing cap – bead (1) of con–rod bearing
caps points to flywheel side.
2. Attach con–rod bearing cap to con–rod with new bolts.
Torque
Tightening torque 25 Nm / 18.5 lb. ft. + 30°.
3. Attach oil intake pipe (2) with new seal ring to oil pump.
Torque
Tightening torque 8 Nm / 6 lb. ft.
4. Attach oil intake manifold to cylinder block.
Torque
Tightening torque 8 Nm / 6 lb. ft.
5. Install cylinder head – see operation Cylinder Head,
Remove and Install.
6. Install oil pan – see operation Oil Pan, Remove and
Install.
Important: Clean up or recut threads with proper die before
reassembly and coat threads of new bolts with screw lock-
ing compound (red). The installation time including the torque
check is max. 10 min.
