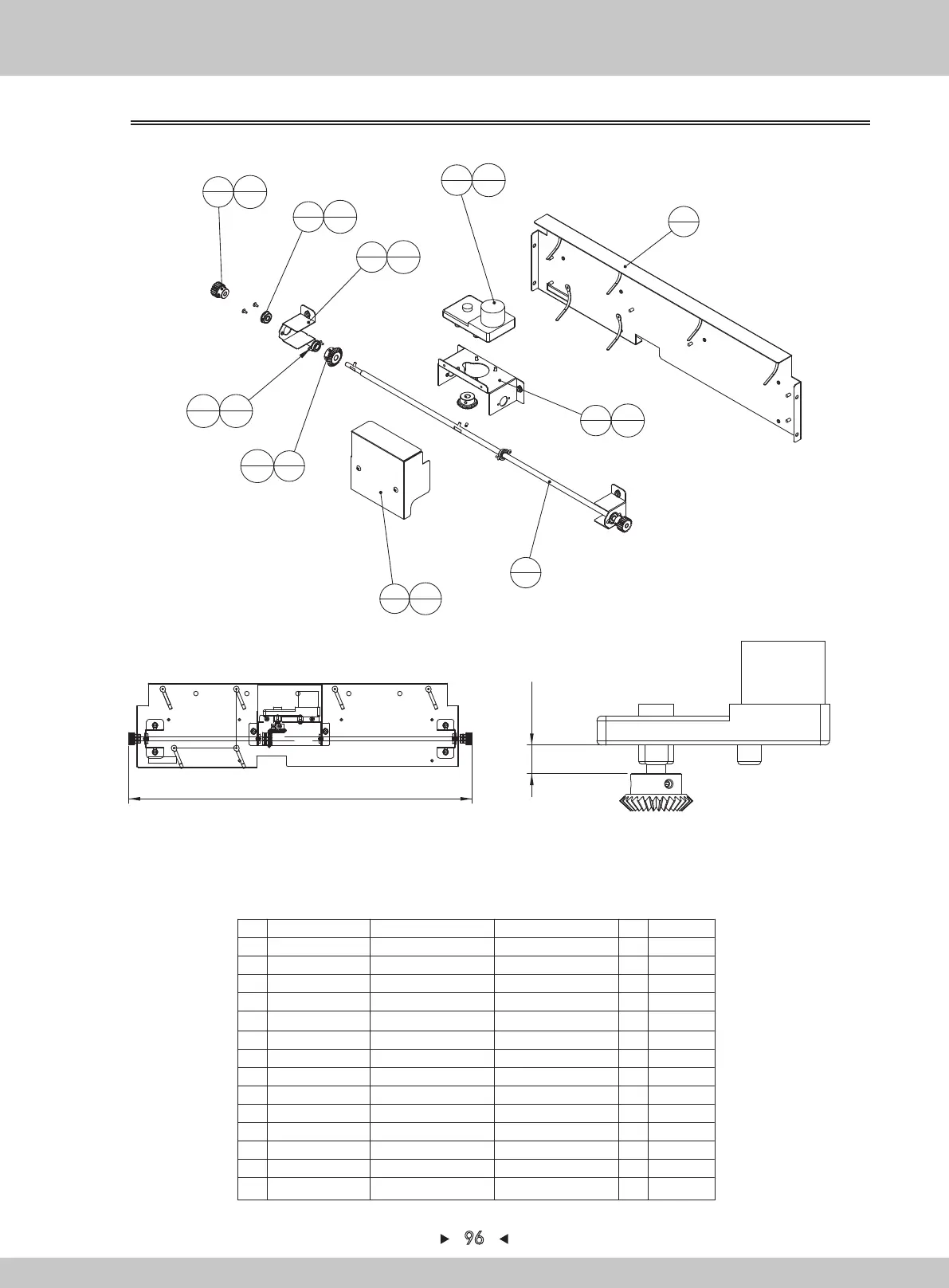

6.7.4 Horizontally-moving motor components (PP-0504000)
96
14
Cross flat-head screw
M3*6（chrome plated）
8
13
Hexagon nut with flange
M4（color coating）
6
12
Headless socket screw
M4*6（black coating）
12
11
Cross flat-head screw
M4*6（chrome plated）
6
10
Flange bearing LF-1680HH 2
9
Flange bearing F606-H-ZZ 2
8
Motor
TG-05K-BG-60-CKA，24V
1
7
KC-0704A02 Bevel gear Q235 2
6
PP-0503A13 Horizontally-moving motor-gear nylon 2
5 PP-0504A05
Horizontally-moving motor
cover-plate
SPCC-0.8T 1
4 PP-0504A04
Horizontally-moving motor
fixed-iron
SPCC-1.2T 1
3 PP-0504A03
Horizontally-moving shaft
45 1
2 PP-0504A02
Horizontally-moving shaft
supporting-iron
SPCC-1.2T 2
1 PP-0504A01
Horizontally-moving motor beam
SPCC-1.2T 1
SN Name Qty
Drawing No.
Materials/specifications
Note
6
2
9
2
2
2
1
1
8
1
4
1
3
1
5
1
7
2
12
6
14
4
13
4
10
2
14
4
12
6
13
2
11
4
11
2
