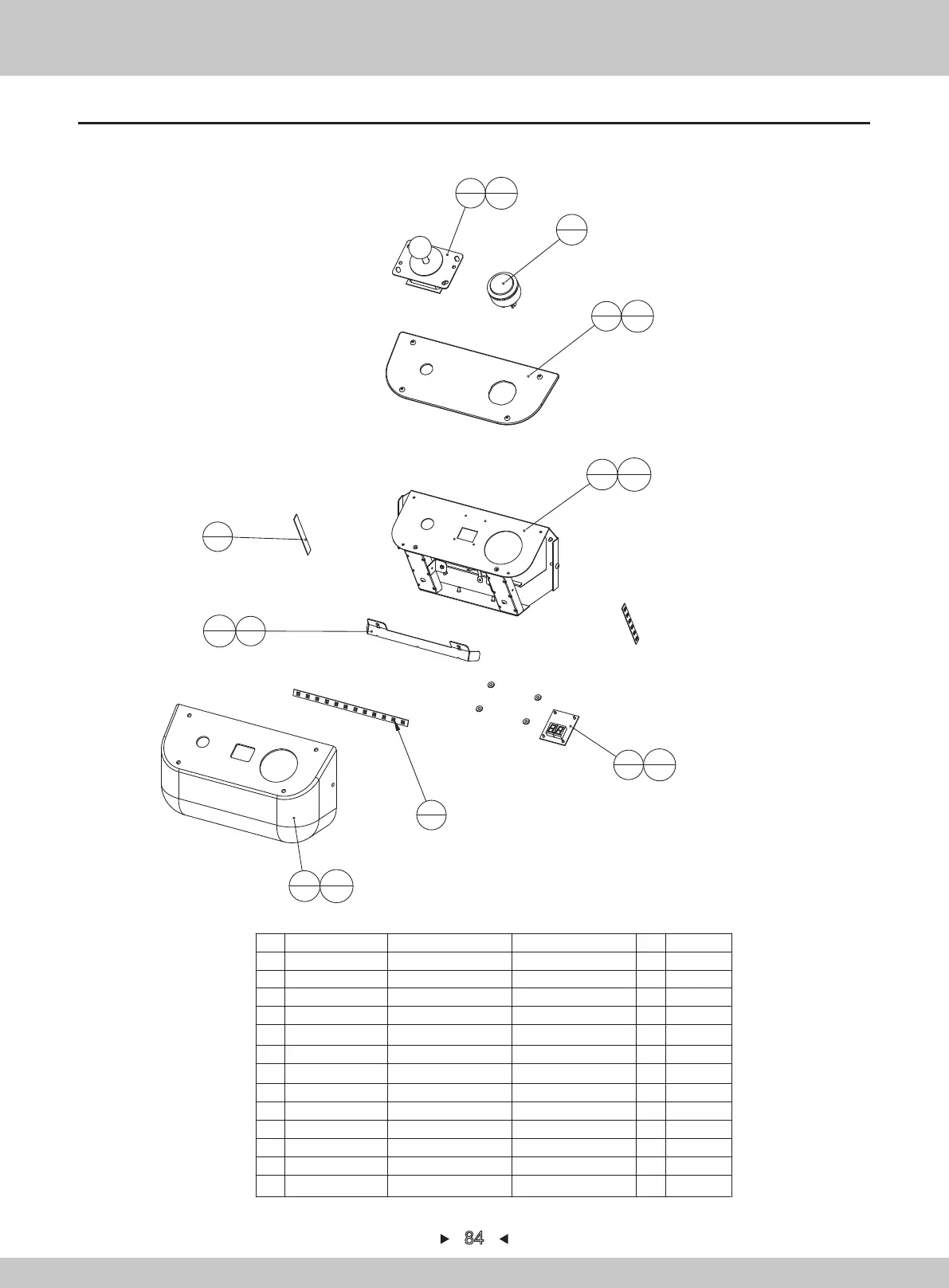

6.4 Control-panel components (PP-0200000)
84
3
1
1
1
10
4
11
4
5
1
8
1
9
2
2
1
4
1
6
1
7
1
11
2
10
4
12
4
13
4
Note：The joystick ball shall be coated with screw glue.
Note：The lamp-bar shall be tied
with the cable ties.
13
Hexagon nut with flange
M4（color coating）
4
12
Cross round-head screw
M3*6（chrome plated）
4
11
Hexagon flat-head screw
M4*8（chrome plated）
6
10
Hexagon flat-head screw M4*12（chrome plated）
8
9
5050 soft lamp-bar
DC12V RGB60 lamp L=100MM
2
8
5050 soft lamp-bar
DC12V RGB60 lamp L=200MM
1
7
Rocker with lamps
JS-EPCG-BU-45-CB
(Blue，In all directions)
1
6
Round button with lamp
(including lamp holder)
BLC-TNWA-PW-B-CR
1
5
Digital tube sheet
WL_KC_7SEG_V1.0 1
4 KC-0200D01
Acryl on control-panel
PC-3.0T 1
3 KC-0200C01
Plastic cover for control-panel
white gourd PMMA
1
2 KC-0200A02
Lamp-bar iron on control-panel
SPCC-1.2T 1
1 KC-0200A01
Fixed iron for control-panel
1
SN Name Qty
Drawing No.
Materials/specifications
Note
1.6.LM204013
1.6.LS830012
1.6.LS140032
1.6.LS141022
1.4.ZM9E0512
1.4.ZM9E0015
1.4.YG100031
1.4.AJ104043
1.4.ZJ030691
