WAHLAP TECH PUSHING POINTS - Jacking-Rod Components(PP-0505000-D)

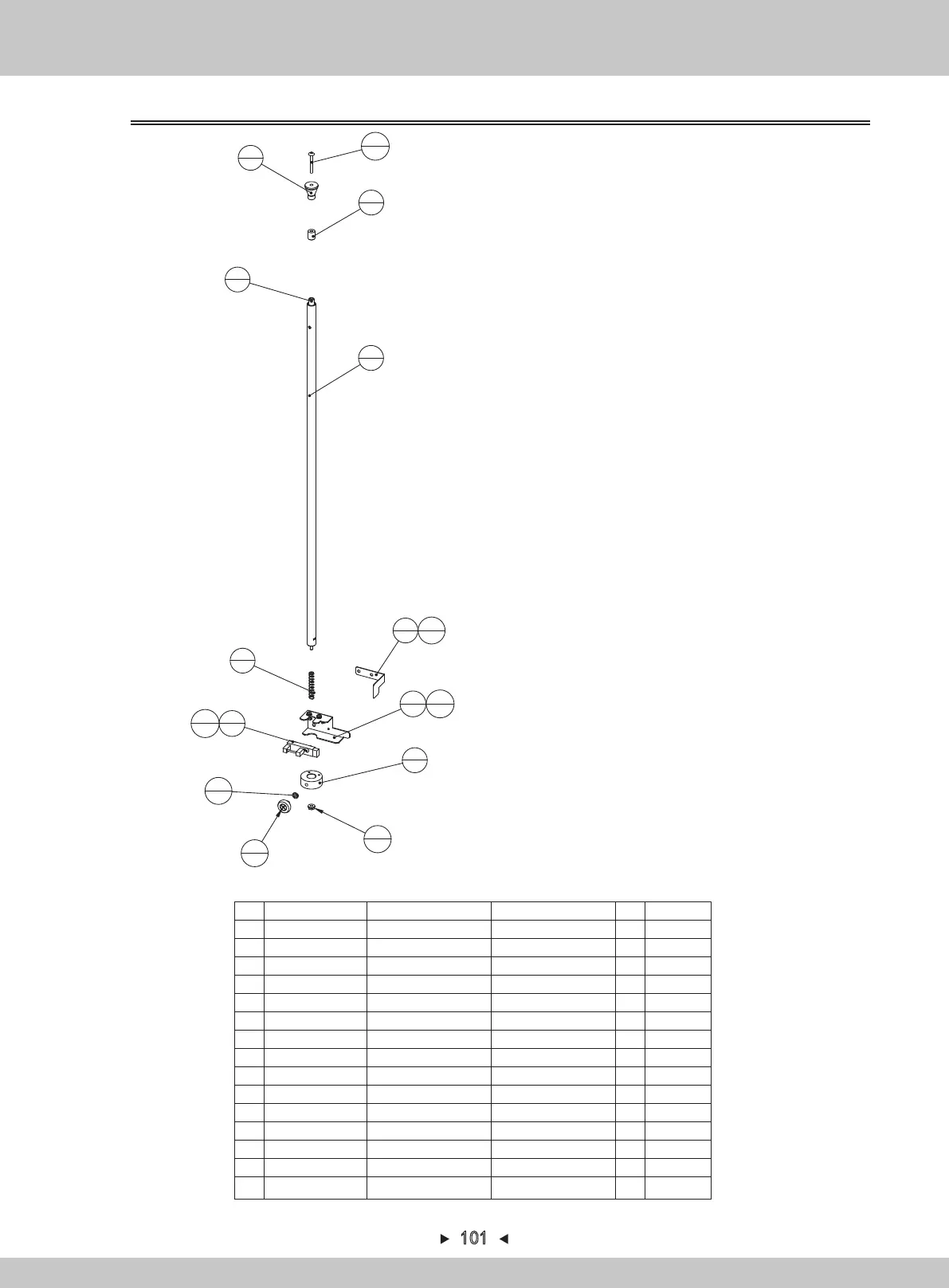

6.7.5.4 Jacking-rod components (PP-0505000-D)
101
10
1
14
1
2
1
9
1
4
1
3
1
13
1
8
1
5
1
7
1
1
1
6
1
11
1
12
4
12
4
Note：Before assembling, the tube outside should be cleaned, without oil.
15
1
Note：
1. Applying with screw glue
15
Hexagon nut with flange
M4（color coating）
1
14
Spring washer
M6 (chrome plated)
1
13
Hexagon flat-head screw
M4*30 (chrome plated)
1
12
Cross round-head combined
screw
M3*6 (chrome plated)
4
11
Cross flat-head screw
M3*12 (chrome plated)
1
10
Outer arc plastic-wheel
DO-19-B0.5 1
9
Sensor
KI1249-AALF 1
8 PP-0505A16
Small head
5052-O 1
7 PP-0505A13
Push-rod compression-spring
SUS304-WPB 1
6 PP-0505A12
Push-rod core
SUS304 1
5 PP-0505A11
Head bushing 02
5052-O 1
4 PP-0505A10
Lifting optical-eye baffle
SPCC-0.8T 1
3 PP-0505A09
Lifting electric eye fixing-iron
SPCC-1.2T 1
2 PP-0505A08
Iron-pipe retaining-ring
5052-O 1
1 PP-0505A07
Outer lifting steel-pipe
SUS304 1
SN Name Qty
Drawing No.
Materials/specifications
Note
1.6.LM204013
1.6.DP206012
1.6.LS143012
1.6.LS830012
1.6.LS231022
1.4.HL010011
1.4.GY100050
