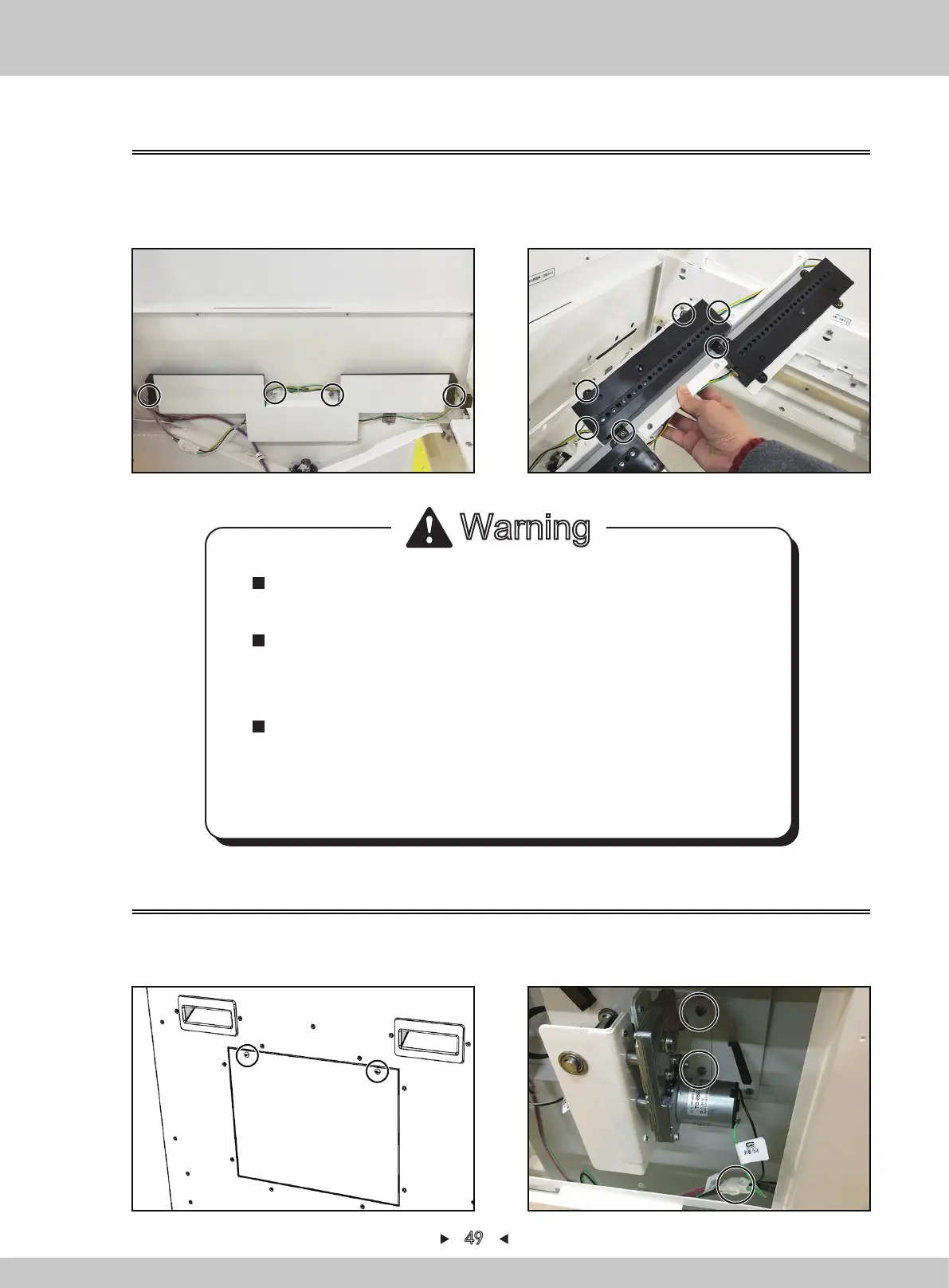

5.2.17 Replacement of optical-eye box
5.2.18 Replacement of sealing-plate motor
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen, remove 4
nuts to fix the eyelet fixing-iron.
2. Remove 4 nuts to fix the optical-eye box, pull out the corresponding terminal and remove the
optical-eye box, reinstall in a reverse order after replacing.
49
1. Remove 2 screws to fix the small-door on the left-side of the game-machine.
2. Pull out the corresponding terminal and remove 2 nuts that fix No.1 motor iron on the
prize door.
Warning
All the headless socket screws in the motor shall be coated
with medium-strength screw-glue.
If the screws with high-strength screw-glue are too tight to
remove, use a heat-gun to properly heat the position with
high-strength screw-glue and then remove the screws.
When using the heat-gun to heat the high-strength screw glue,
be careful not to overheat so as not to damage the parts or
burn the technicians.
