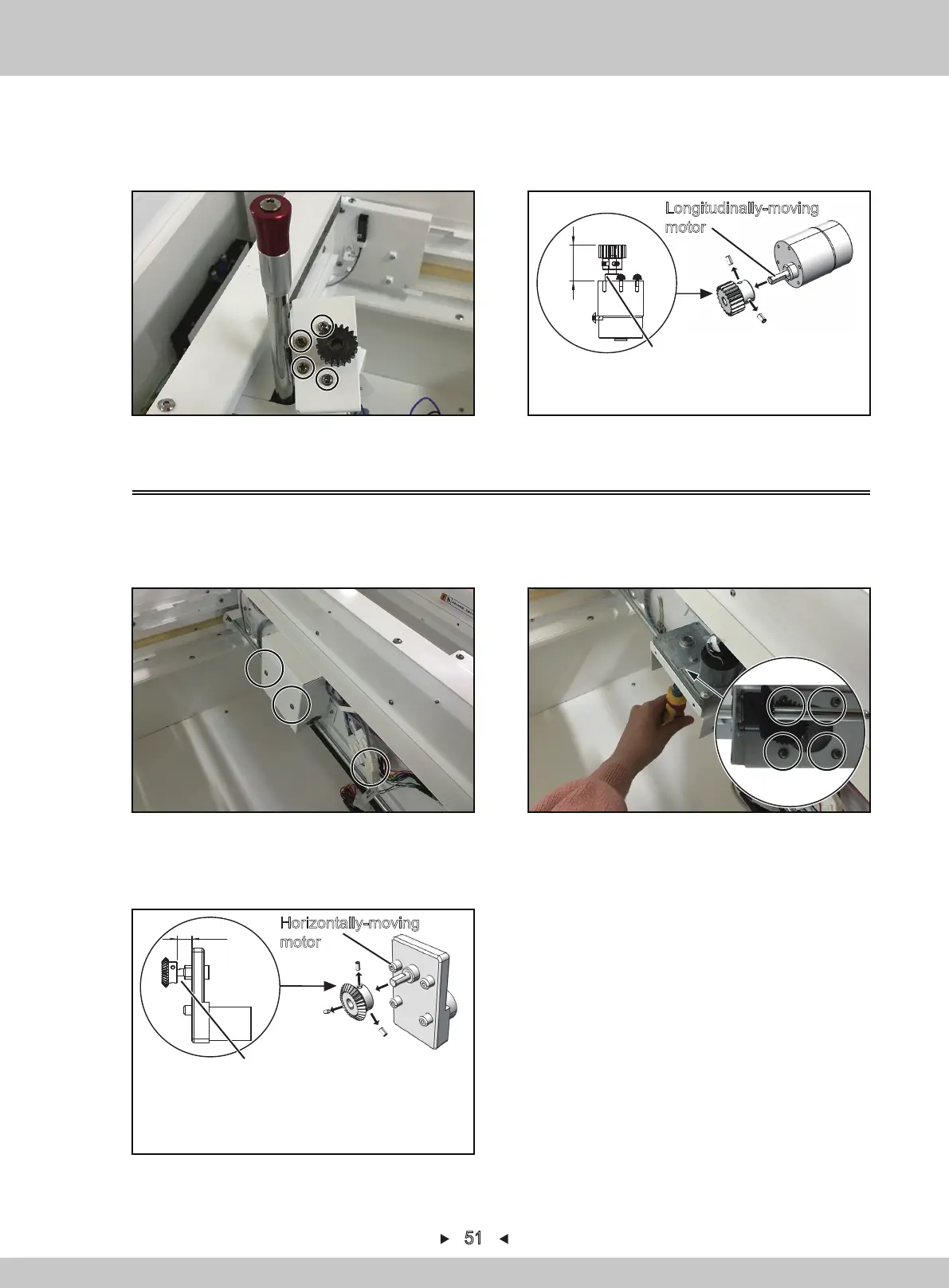

WAHLAP TECH PUSHING POINTS - Replacement of Horizontally-Moving Motor

3. Remove 4 screws to fix the longitudinally-moving motor.
4. Remove the screws to fix the bevel gear and the longitudinally-moving motor, reinstall in a
reverse order after replacing.
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,remove 2
screws to fix the cover-plate of the horizontally-moving motor and pull out the corresponding
terminal.
2. Remove 4 screws to fix the horizontally-moving motor.
51
TG-301DA-SR-65-CHA,24V
3. Remove the screws to fix the bevel gear and horizontally-moving motor, reinstall in a reverse
order after replacing.
Note：1.The gears should be adjusted
properly so that they are fully
engaged（12.2mm）
2.The headless screws shall be
coated with screw glue。
12.2mm
Horizontally-moving
motor
TG-05K-BG-60-CKA，24V
Note：1.Adjust the gear
mesh-clearance（29mm）
2.Coating with screw glue.
29mm
Longitudinally-moving
motor
5.2.20 Replacement of horizontally-moving motor
