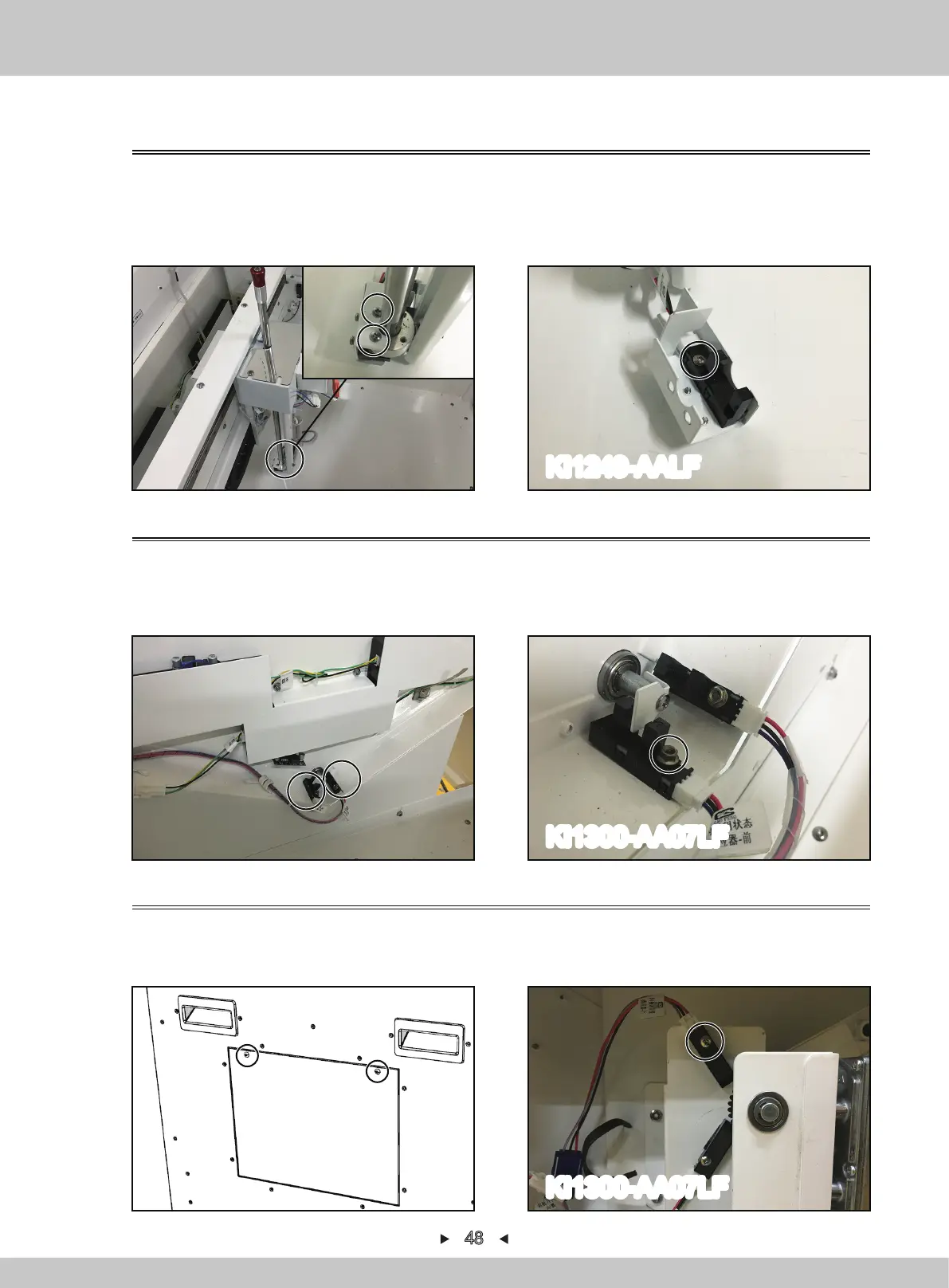

WAHLAP TECH PUSHING POINTS - Replacement of Colliding-Sensors; Replacement of Sealing-Plate Opening;Closing Status Sensors; Replacement of Sealing-Plate Opening;Closing Position Sensors

1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,there is 1
sensor on the jacking-rod, remove 2 screws to fix the lifting electric-eye fixing-iron and
rermove the lifting electric-eye fixing-iron.
2. Remove the screw to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
5.2.14 Replacement of colliding-sensors
KI1249-AALF
5.2.16 Replacement of sealing-plate opening/closing position sensors
1. Remove 2 screws to fix the small-door on the left-side of the game-machine.
2. Remove the screw to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
KI1300-AA07LF
5.2.15 Replacement of sealing-plate opening/closing status sensors
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,there are 2
sensors on the eyelet fixing-iron.
2. Remove the nut to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
KI1300-AA07LF
