5.2.33 Specification for height-adjusting net

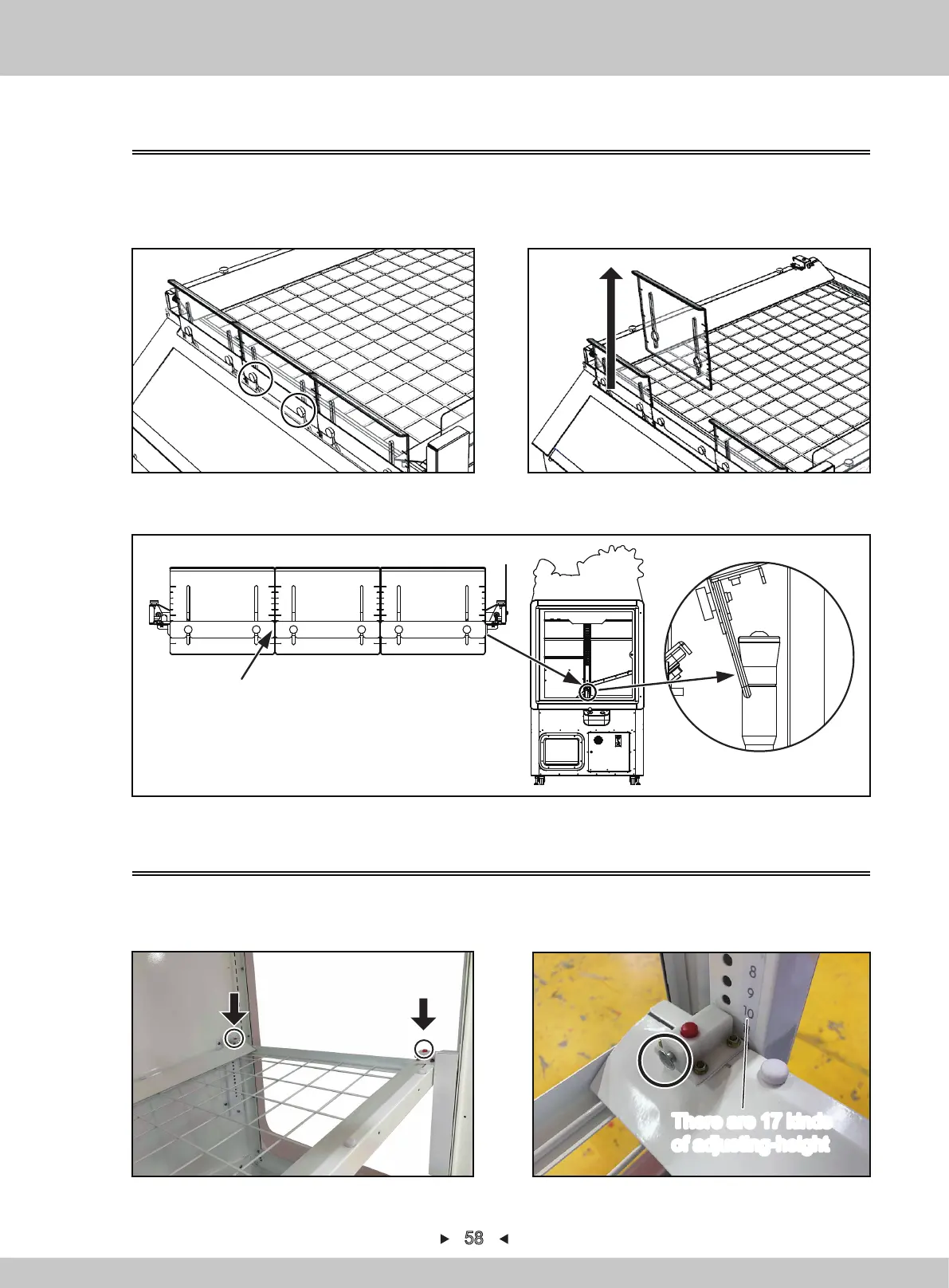

5.2.32 Replacement of prize baffle
1. Press the red button, pop up the metal pin and then adjust the height of the ramp net
2. After aligning the position, push in the metal pin to lock the ramp net.
There are 2 prize-baffles to prevent prize from falling off automatically. The long prize-baffle is
used for the long prize and the short prize-baffle is used for the short prize.
1. Open the acrylic door with the key and unscrew 2 white plastic screws to fix the prize-baffle.
2. Remove the prize-baffle, reinstall in a reverse order after replacing.
Long prize baffle：185×150mm
Short prize baffle：185×80mm
Long prize baffle：185×150mm
Short prize baffle：185×80mm
There are 17 kinds
of adjusting-height
58
Note: When the long prize-baffle is replaced
and as long as the installation position of the
long prize-baffle is lower than the 4th scale,
it is possible to be hit by the jacking-rod.
Please adjust the tilt=angle of the screen
properly to avoid damaging the jacking-rod.
