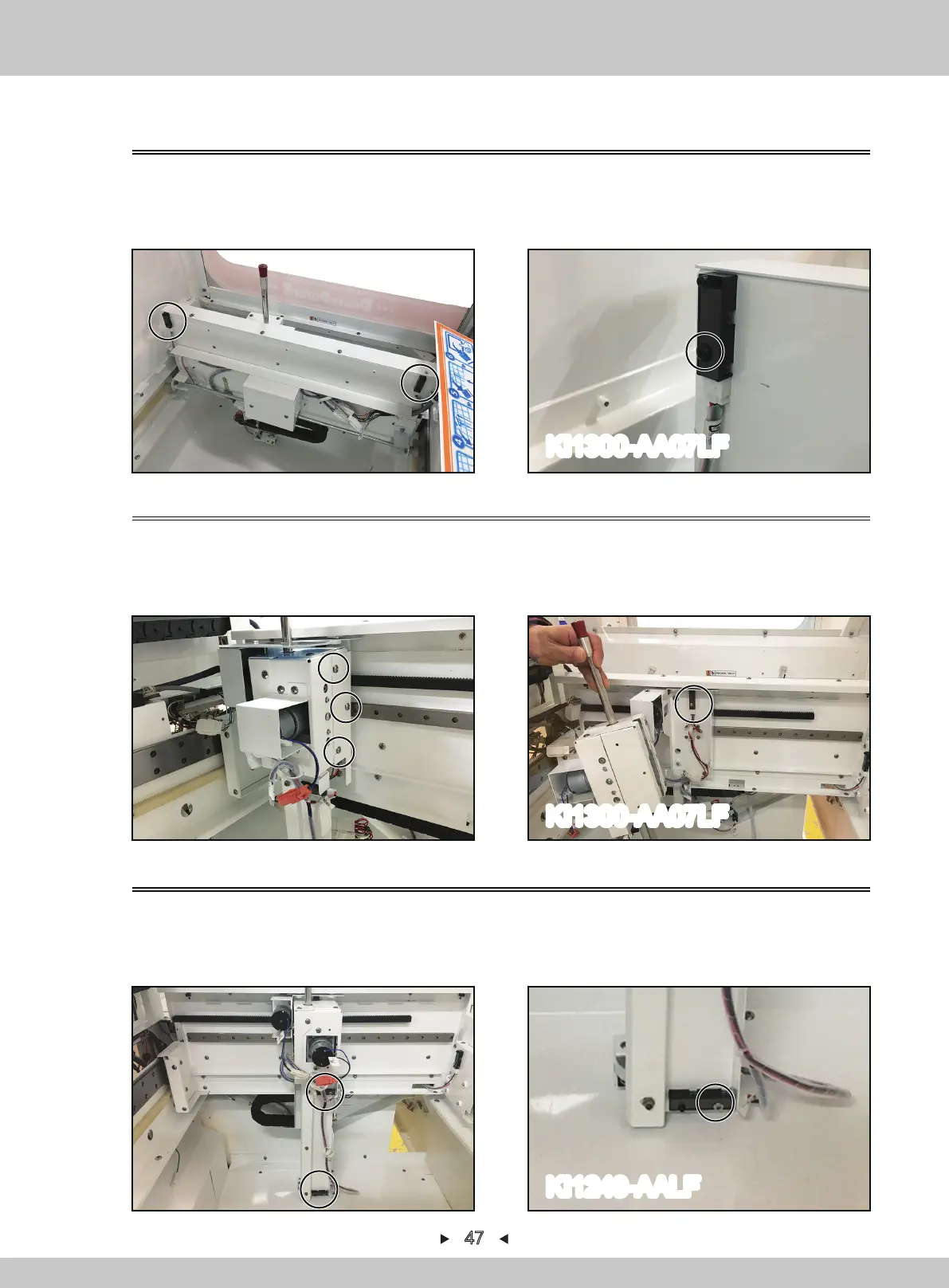

5.2.11 Replacement of front/rear sensors
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,there
are 2 sensors on the longitudinal rail.
2. Remove the screw to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
KI1300-AA07LF
5.2.12 Replacement of longitudinalyl-moving sensors
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,remove 3
screws to fix the longitudinal slider fixing-iron.
2. Remove the screw to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
KI1300-AA07LF
5.2.13 Replacement of upper/lower limit sensors
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,there are 2
sensors on the lifting raceway.
2. Remove the screw to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
KI1249-AALF
