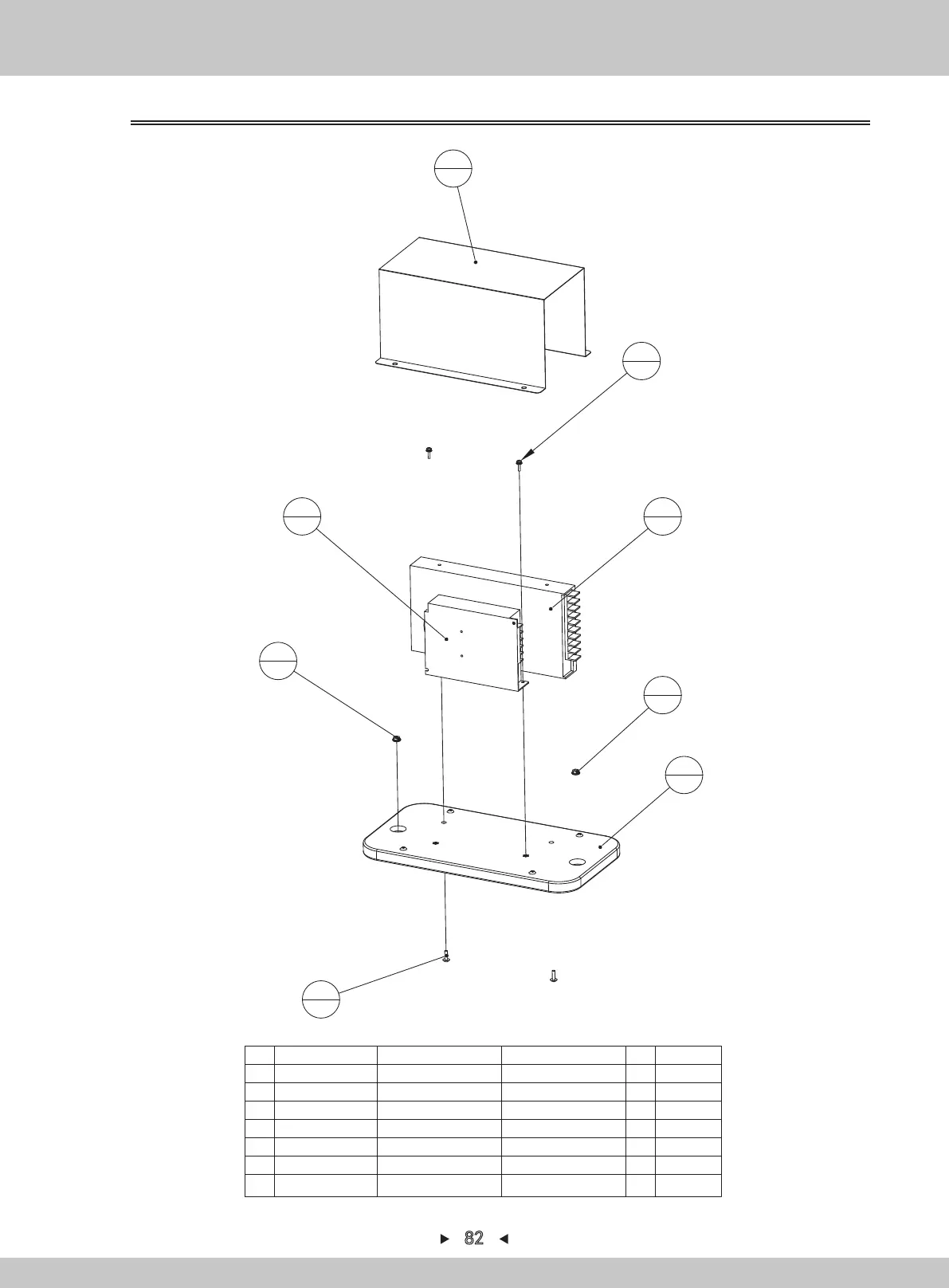

6.3.13 Low-voltage power module (PP-0113000)
5
2
4
1
3
1
7
2
7
2
1
1
6
6
2
1
7 Hexagon nut with flange
M4（color coating）
2
6 Cross flat-head screw
M4*12（chrome plated）
6
5 Cross round-head screw
M3*10（chrome plated）
2
4 Power box K10L-S300D12+5 1
3 Power box K06L-U100S24 1
2 PP-0113D01
Cover for power box
PVC-0.5T 1
1 PP-0113B01
Fixing-board for power box
MDF-15.0T 1
SN Name Qty
Drawing No.
Materials/specifications
Note
1.6.LM204013
1.6.LS241022
1.6.LS831012
1.4.DY020100
1.4.DY020011
