1. The prize-rack tube shall be directly inserted into the display-board supporting-iron.
2. Rotate the prize-rack tube with the right-angle facing up to lock the prize-rack tube.
(complete this step to prevent jacking-up of prize-rack tube)

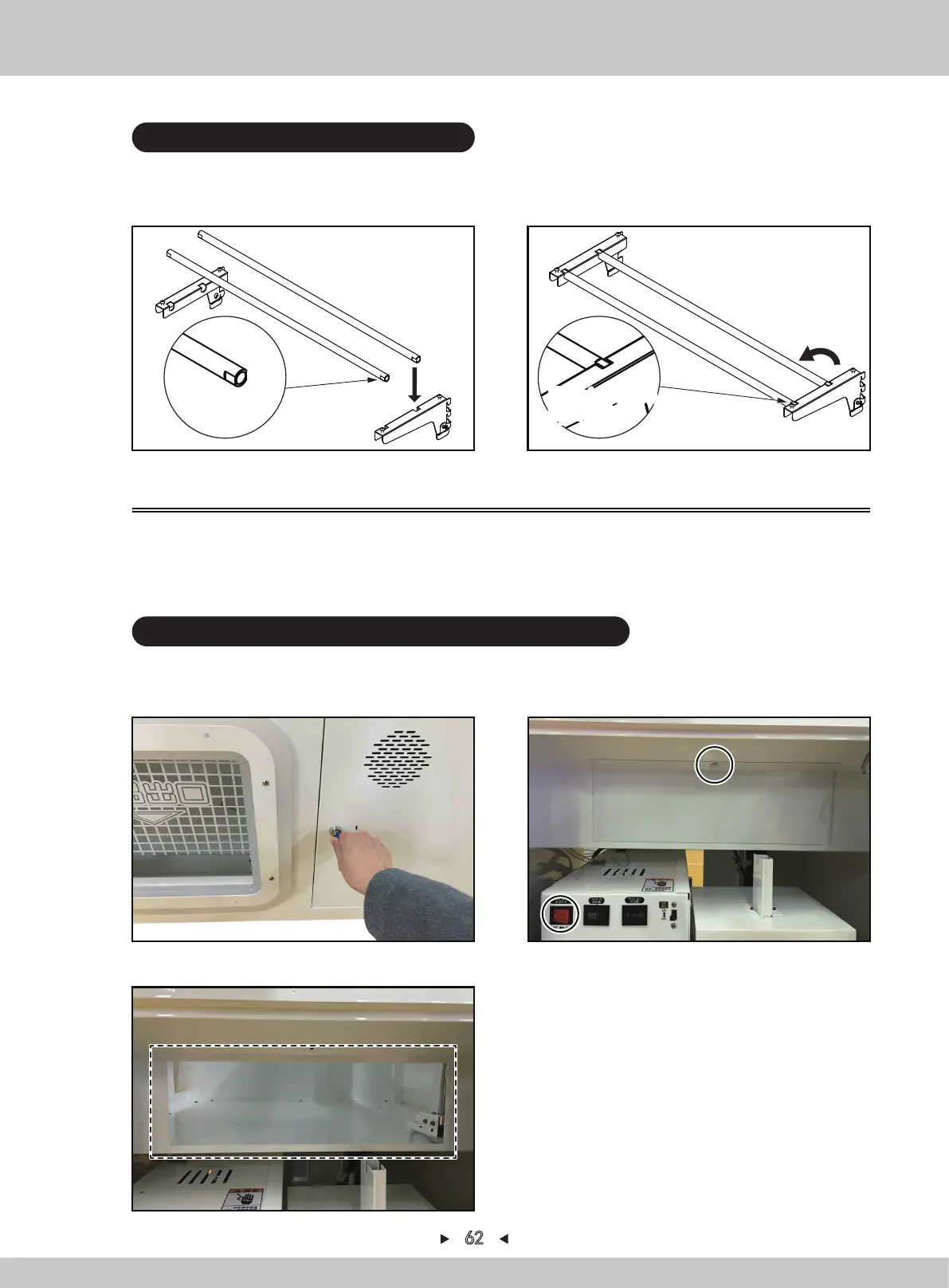

Installation steps of prize-rack tube
Arc upward
Right-angles
upward
5.2.39 Descriptions for hole-cover of lower cover-plate
When the game-area cover-plate of the game-machine needs to be cleaned or the
prizes falling from the grid onto the game-area cover-plate of the game-machine needs
to be taken out, remove the hole-cover of lower cover-plate first and then clean or take
out the prizes.
1. Use the key to open the access-door on the lower right-side of the game-machine.
2. Turn off the game-machine, remove the white plastic screw to fix the hole-cover of the lower
cover-plate and remove the hole-cover of the lower cover-plate.
Removing steps for hole-cover of lower cover-plate
3. Clean or take out the prizes. Reinstall in a reverse order after completion.
