WAHLAP TECH PUSHING POINTS - TILT Components(PP-0108000)

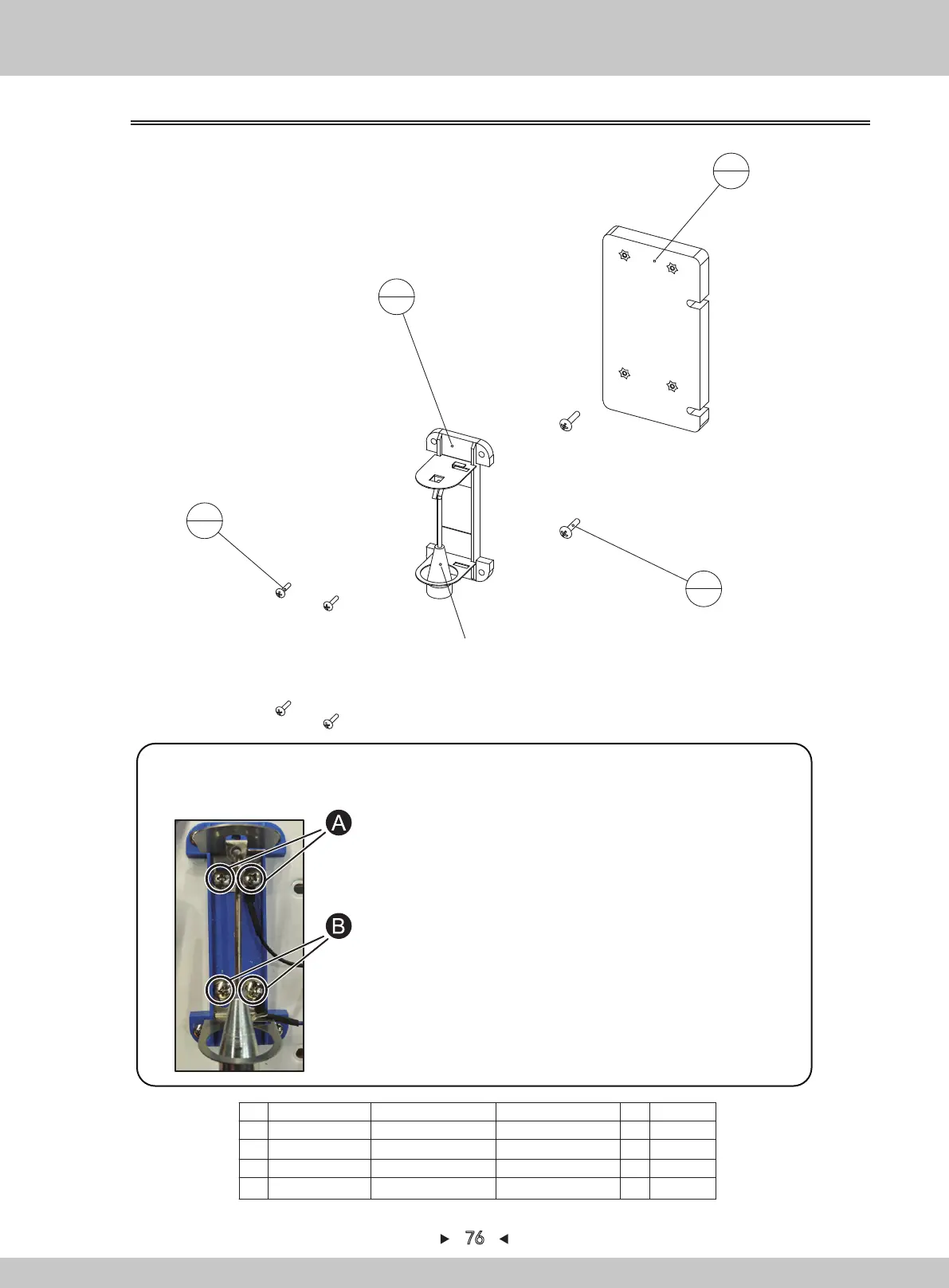

6.3.8 TILT components (PP-0108000)
76
4
Cross flat-head screw M4*16（chrome plated）
2
3
Cross flat-head screw M3*12（chrome plated）
4
2
TILT
For KWM188 machine
1
1 PP-0108B01
TILT board
MDF-12.0T 1
SN Name Qty
Drawing No.
Materials/specifications
Note
1
1
4
2
2
1
3
4
Note：TILT should be coated with the screw glue
in case of falling during transportation!
1.6.LS241032
1.6.LS231022
1.4.QT200010
1. Loosen the 2 screws at "A" and move the iron plate
to adjust the distance of 0~6mm to adjust the accuracy
of the TILT.
2. Loosen the 2 screws at "B" and move the swing hammer
to adjust the distance of 0~6mm to adjust the accuracy
of the TILT.
3. The accuracy of the TILT in the picture is already at the
highest state.
TILT adjust guide
