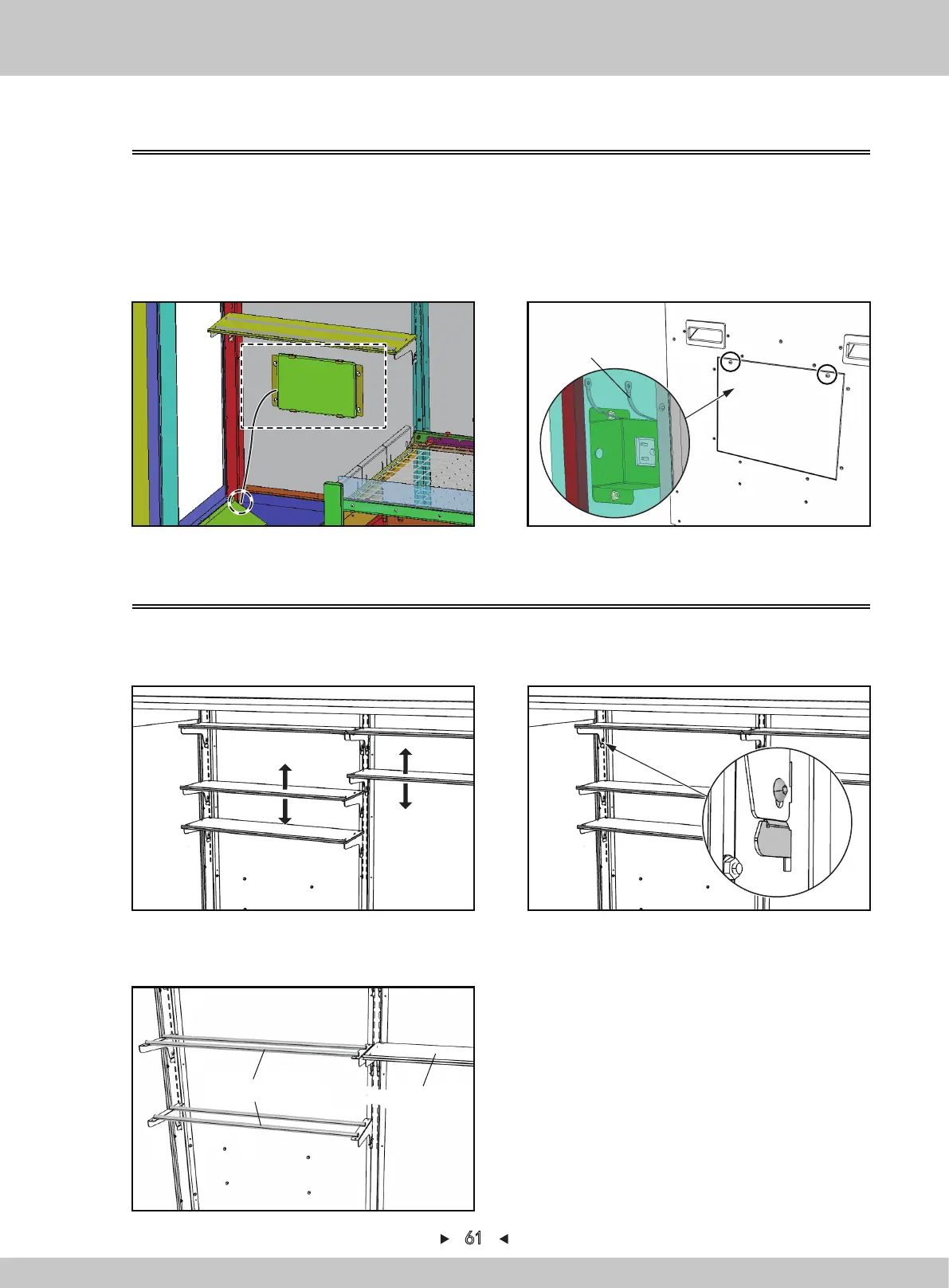

5.2.37 Description for LCD position and operation steps
Position description: the display screen is fixed at the bottom of the left display-board, which
can play the game-play animation.
Usage steps:
1. Open the acrylic door with the key, put in the display screen and wire in the circle, as shown
in Fig 1.
2. Remove 2 screws to fix the left small-door and player can see a power-socket on the left.
Then insert the power plug into the power socket and the display screen can be used.
The adapter can
be fixed on it
5.2.38 Descriptions for prize-rack
1. The height of the prize-rack can be adjusted according to the prize size.
2. The display-board buckle shall be installed before transport to prevent the prize-rack from
moving or falling.
3. There are 2 kinds of prize-racks on the game-machine: Display-board and prize-rack tube.
Prize-rack tube
Display-board
61
