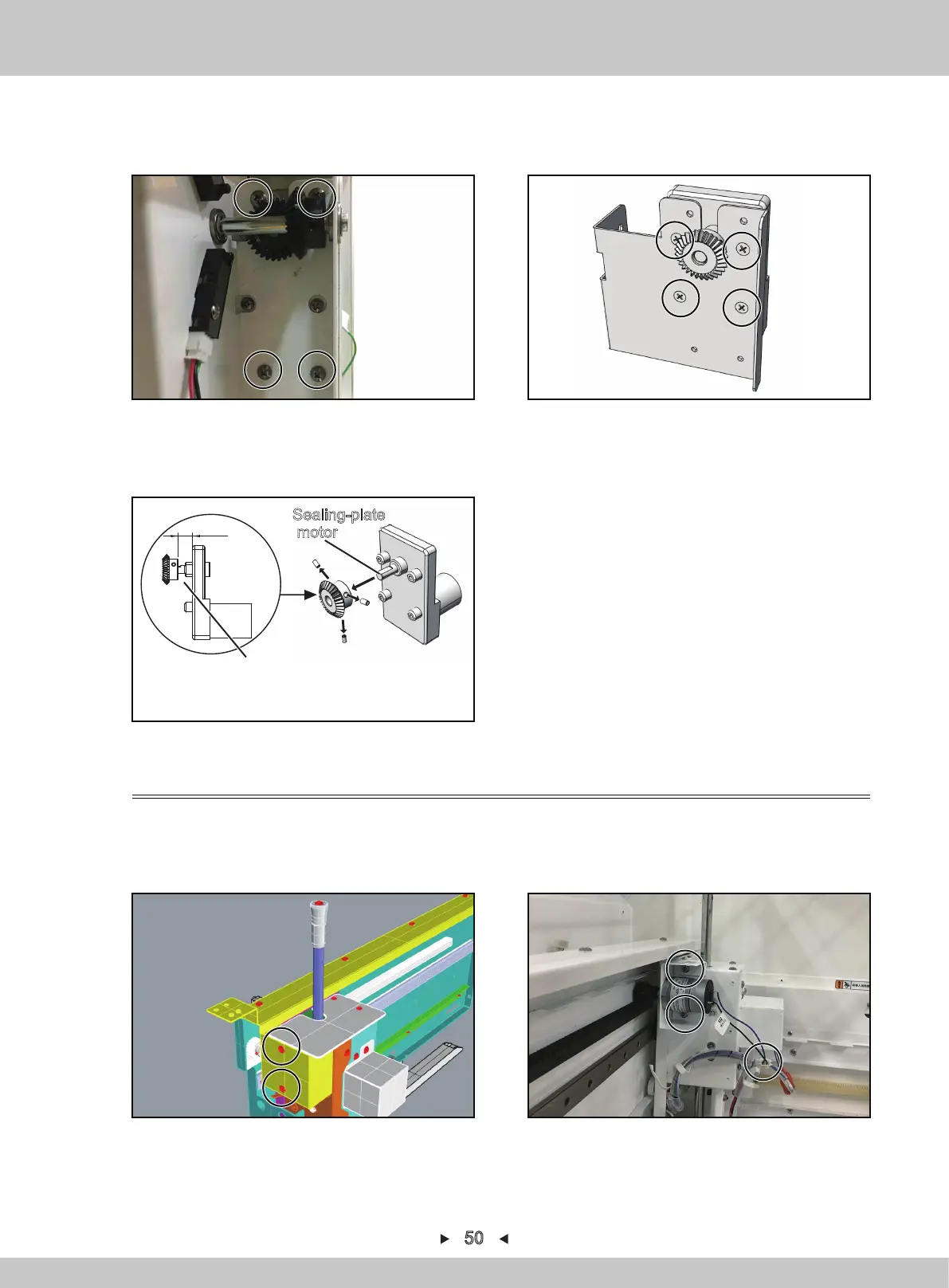

5.2.19 Replacement of longitudinally-moving motor
3. Remove 4 screws that fix No. 2 motor iron on the prize door.
4. Remove 4 screws that fix No. 1 motor iron on the prize door
5. Remove the screws that fix the bevel gear and remove the sealing-plate motor, reinstall in a
reverse order after replacing.
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,remove 2
screws to fix the cover-plate of longitudinally-moving motor.
2. Pull out the corresponding terminal and remove 2 nuts that fix the fixing-iron of the
longitudinally-moving motor.
Note：1.Adjust the gear
mesh-clearance（15.5mm）
2.Coating with screw glue.
15.5mm
Sealing-plate
motor
TG-85E-BG-200-CKA，24V
