WAHLAP TECH PUSHING POINTS - PCB Components(PP-0106000-A)

74

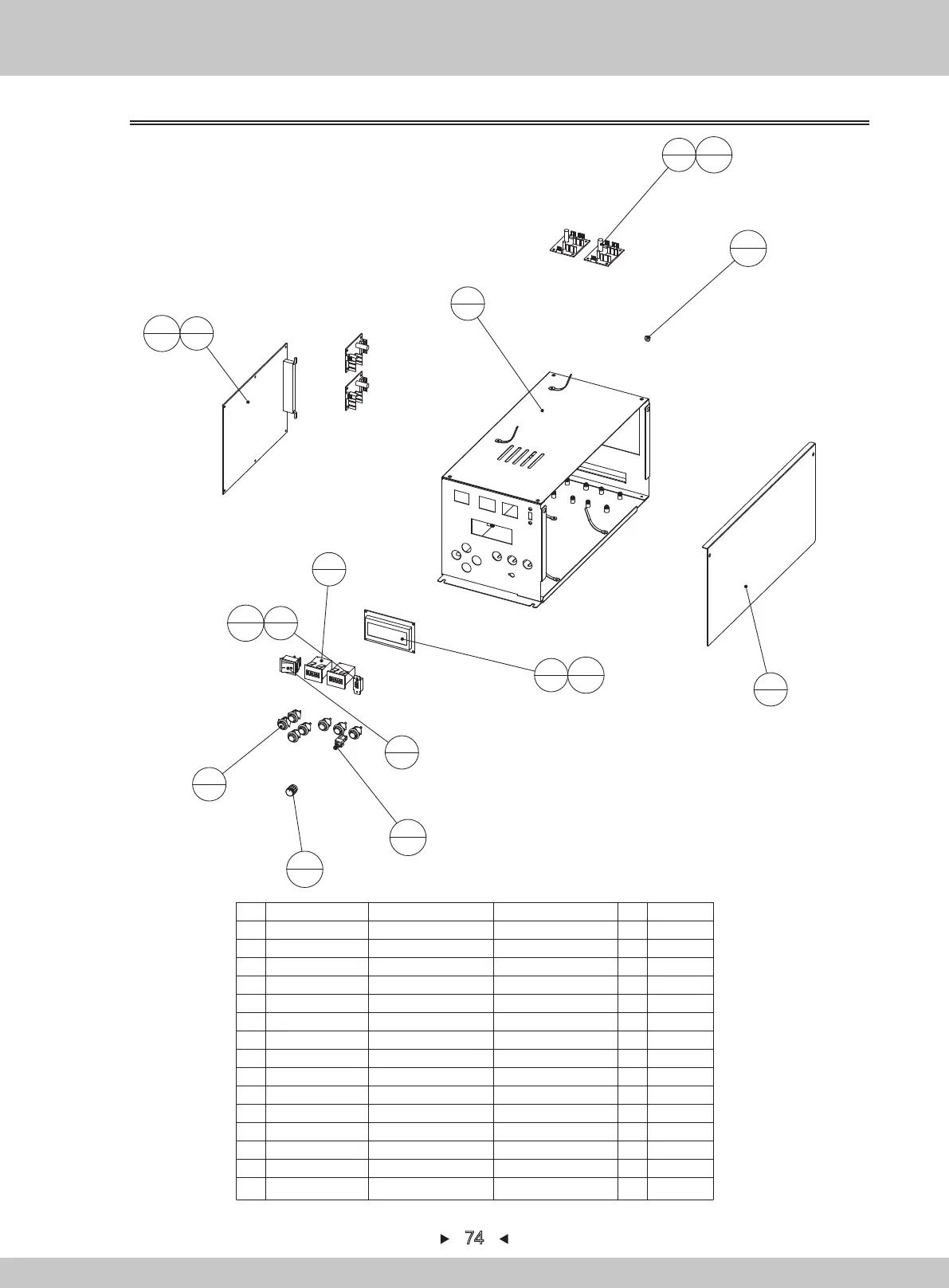

6.3.6.1 PCB components (PP-0106000-A)
3
4
4
1
1
1
2
1
11
1
10
1
7
1
5
1
6
2
9
1
8
7
15
1
12
16
12
6
13
2
12
4
15
Hexagon nut with flange
M4（color coating）
1
14
Cross flat-head screw M4*6（chrome plated）
2
13
Cross flat-head screw
M3*8（chrome plated）
2
12
Cross round-head screw
M3*6（chrome plated）
26
11
Potentiometer knob
Ф13mm
1
10
Volume VR components
VR-B10KΩ 1
9
The ship type switch
4P KCD7-2211N 1
8
Circular card-type button
Sanwa red SDP-103C-22RB
7
7
LCD screen TM204A-1(with terminal) 1
6
Counter
DC 12V 2
5
Slide switch
3A/252V-6A/125V
1
4
Main board
1
3
Motor driver-board
WL_KC_MotorDrive_V1.0 4
2 PP-0106A02
PCB cover-plate
SPCC-1.0T 1
1 PP-0106A01
PCB fixed-iron
SPCC-1.0T 1
SN Name Qty
Drawing No.
Materials/specifications
Note
1.6.LM204013
1.6.LS240012
1.6.LS230032
1.6.LS830012
1.4.VR201310
1.4.VR160010
1.4.SW604010
1.4.AJ500012#
1.4.XS402022
1.4.JS100020
1.4.SW900010
1.3.WA36A00010#
1.4.IC901137
