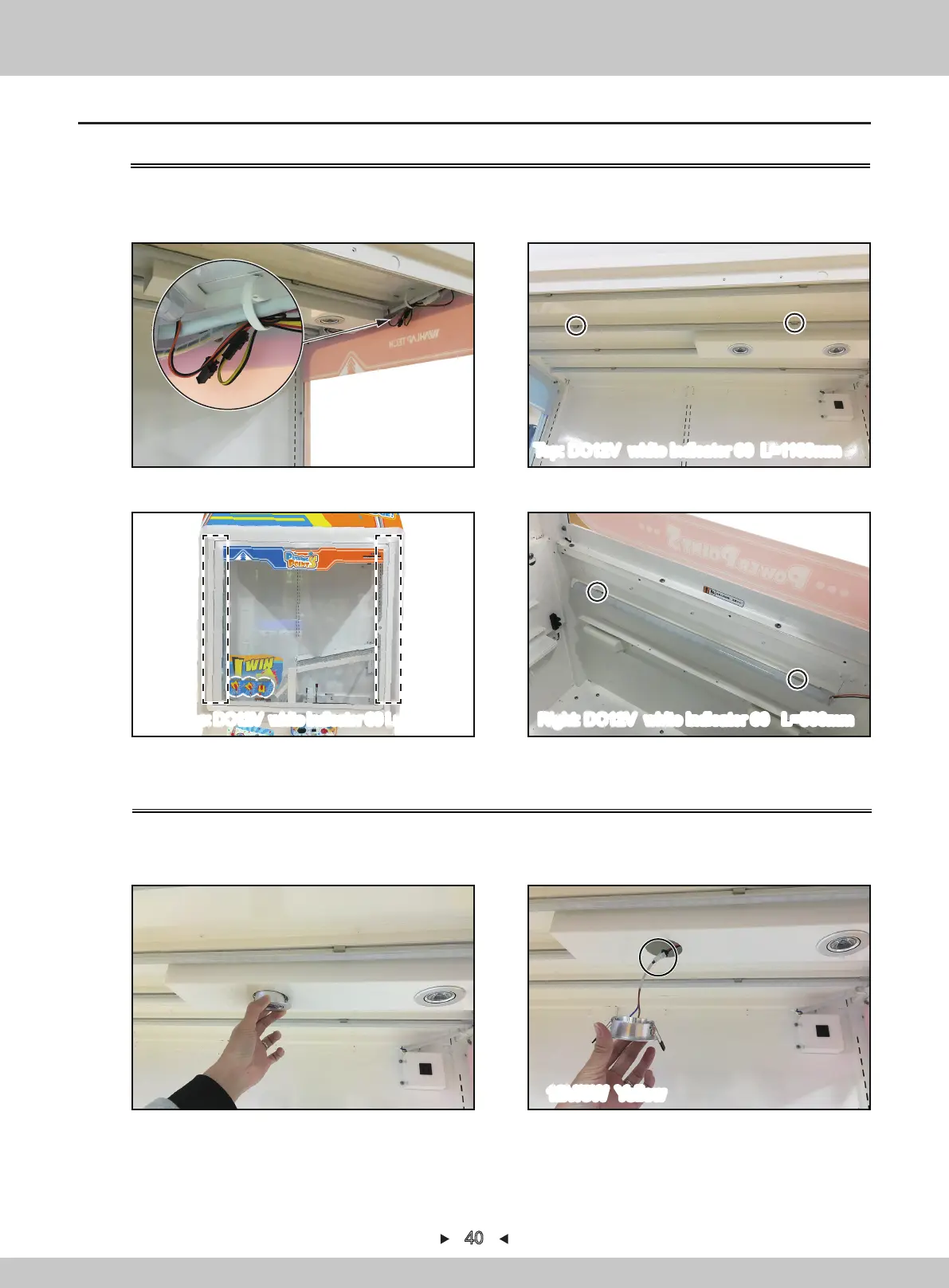

5.2.2 Replacement of ceiling lamp
1. Open the acrylic door with the key, untie the cable ties and pull out the terminal corresponding
to the damaged LED.
2. Remove shelled LEDs from 2 card-slots and reinstall in a reverse order after replacing.
1. Use the key to open the acrylic door and pull out the ceiling lamp. (be careful of fingers)
2. Pull out the corresponding terminal and remove the ceiling lamp,reinstall in a reverse order
after replacing.
Right: DC12V white indicator 60 L=500mmBoth sides: DC12V white indicator 60 L=1000mm
Top: DC12V white indicator 60 L=1100mm
12V/3W Yellow
