WAHLAP TECH PUSHING POINTS - Jacking-Rod Sensor Components(PP-0505000-C)

5
Cross flat-head screw
M3*12（chrome plated）
2
4
Hexagon nut with flange
M3（color coating）
3
3
Sensor
KI1249-AALF 2
2 PP-0505A25
Roller channel-iron
SPCC-1.2T 1
1 PP-0505A20
Lifting raceway-iron
SPCC-1.2T 1
SN Name Qty
Drawing No.
Materials/specifications
Note
1
1
3
2
2
1
5
2
4
3
Note：It is necessary to adjust the position properly and
remove the jacking-rod motor pinch-roller so that the
jacking-rod can slide up and down smoothly!

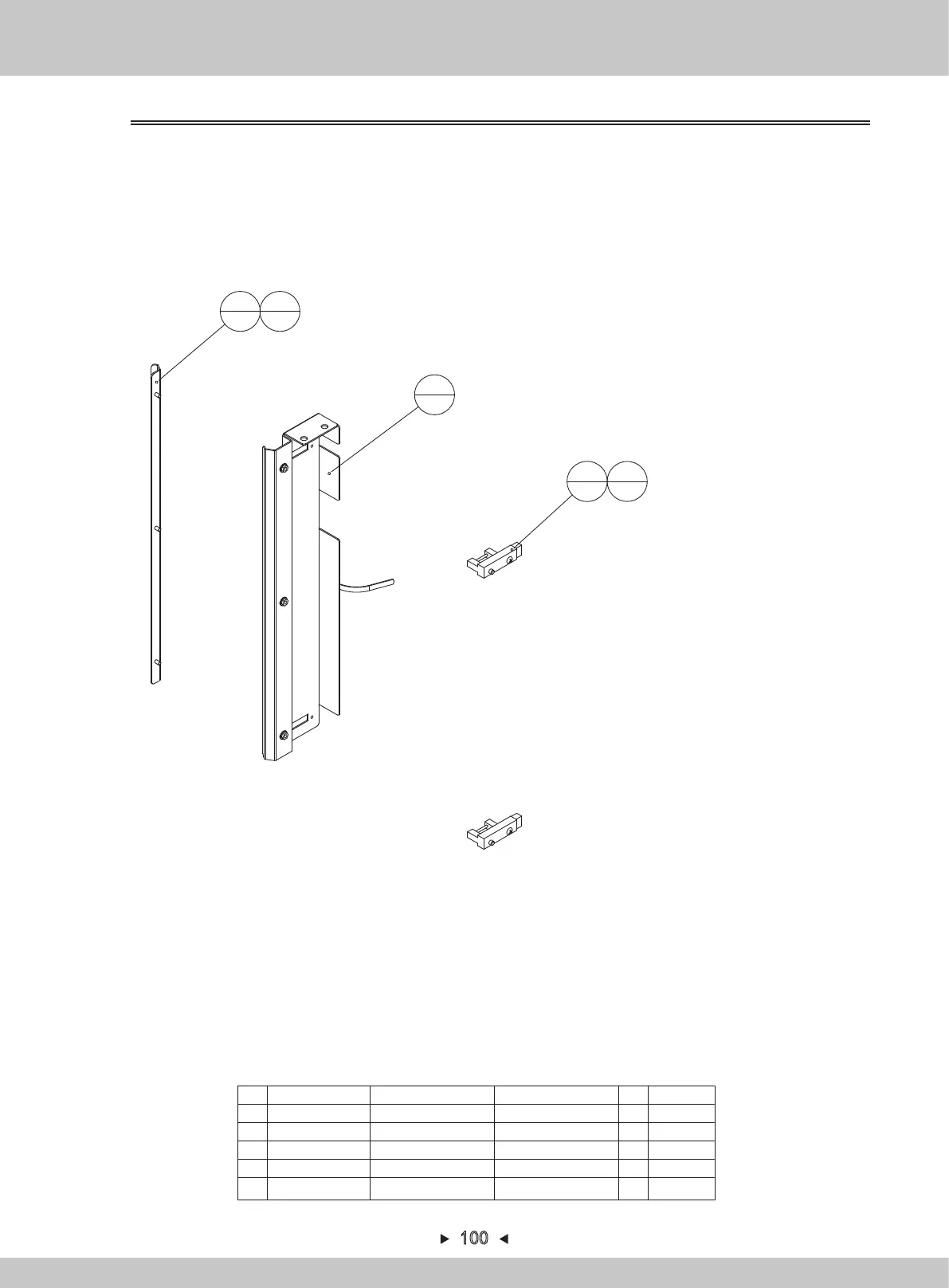

6.7.5.3 Jacking-rod sensor components (PP-0505000-C)
