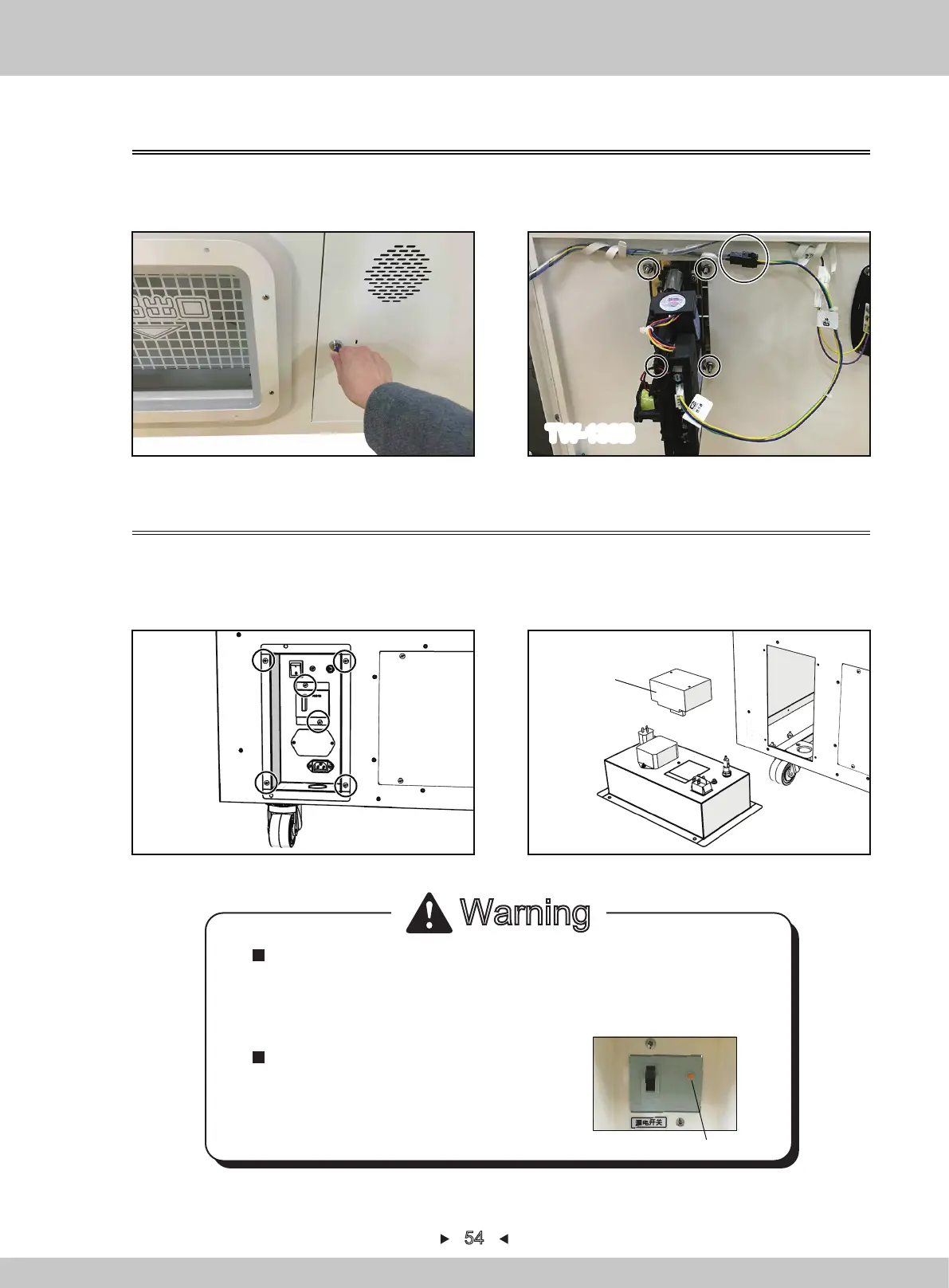

5.2.25 Replacement of coin-acceptor
5.2.26 Change leakage switch
1. Use the key to open the access-door on the lower right-side of the game-machine.
2. Remove 4 screws to fix the coin-acceptor, pull out the corresponding terminal and remove
the coin-acceptor, reinstall in a reverse order after replacing.
TW-130B
54
1. Turn off the game-machine, remove 4 screws to fix the power inlet box and then remove 2
screws to fix the leakage switch.
2. Pull out the corresponding terminal and remove the leakage switch, reinstall in a reverse
order after replacing.
leakage switch
When the leakage switch of the game-machine turns off
automatically, check whether there is the leaky on the circuit and
power-box. The circuits of PP-L0001~PP-L0012 should be
emphatically checked. (please refer to the sections on P112-113)
For the safety, "T" button must be
pressed once a month and the leakage
switch must be turned off automatically.
Warning
"T" button
