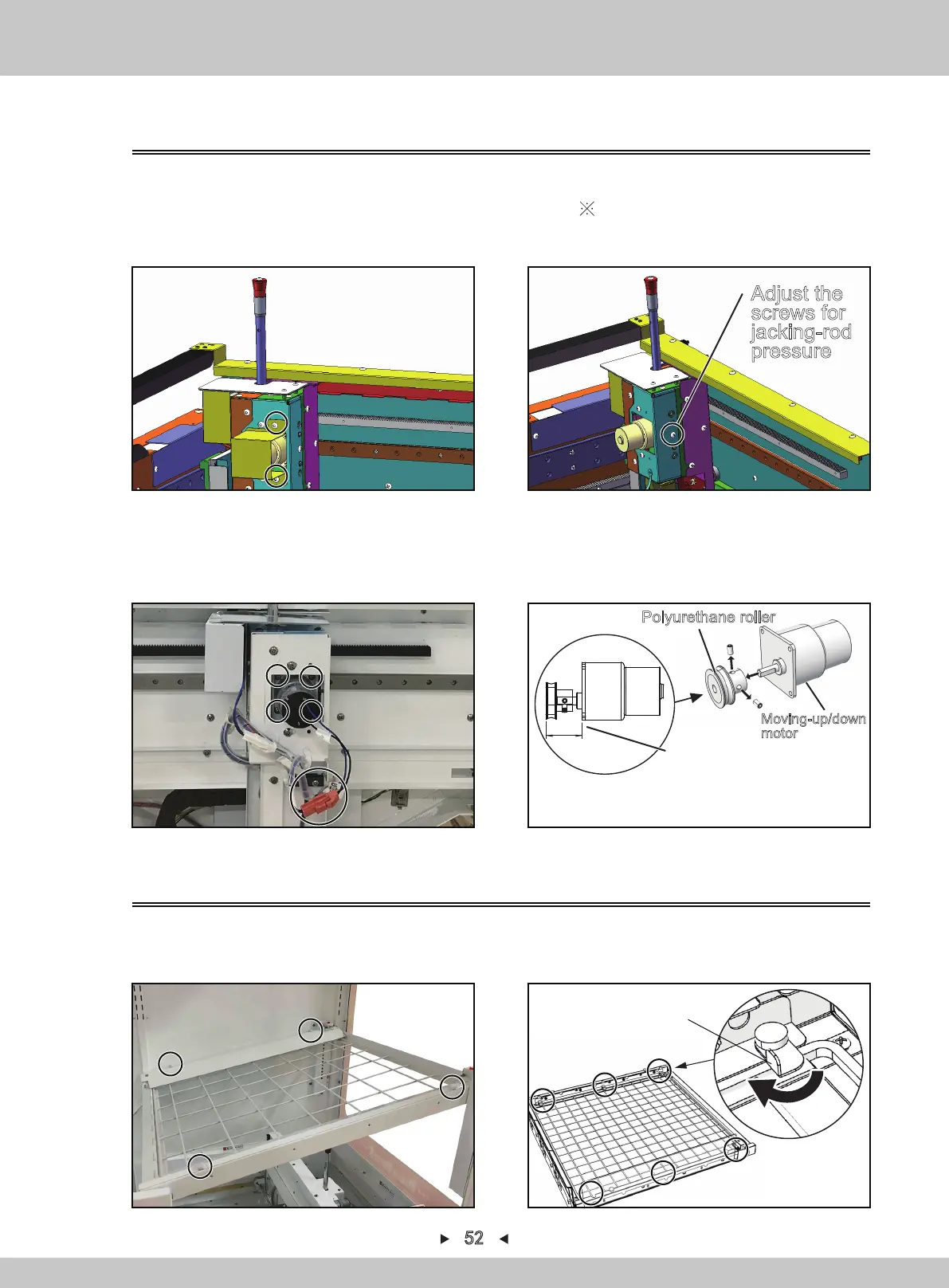

5.2.21 Replacement of moving-up/down motor or polyurethane roller
5.2.22 Replacement of prize net
3. Remove 4 screws to fix the up/down moving motors and pull out the corresponding terminals.
4. Remove the screws to fix the bevel gears and up/down moving motors or polyurethane roller,
reinstall in a reverse order after replacing.
Note：1.Adjust the roller position
properly so that it can press on
the jacking-rod center(27mm）
2.Coating with screw glue.
TG-05L-AMD-150-CKA，24V
1. Turn off the game-machine. Open the acrylic door with the key, remove the net,remove 2
screws to fix the jacking-up motor cover-plate.
2. Tighten the screw to fix the clamping-roller fixing-plate( this screw is used to adjust the
spring-pressure. The looser the screw is, the greater the pressure on the clamping-roller is
and the further the jacking-rod moves up and down)
52
1. Use the key to open the acrylic door, unscrew 4 white plastic screws to fix the net
cover-plate and remove 2 net cover- plates.
2. Unscrew 6 white plastic screws to fix the prize net and turn the mould weight.
Adjust the
screws for
jacking-rod
pressure
Polyurethane roller
Moving-up/down
motor
Mould-weight
