WAHLAP TECH PUSHING POINTS - Replacement of Left;Right Sensors; Replacement of Horizontally-Moving Sensors

46

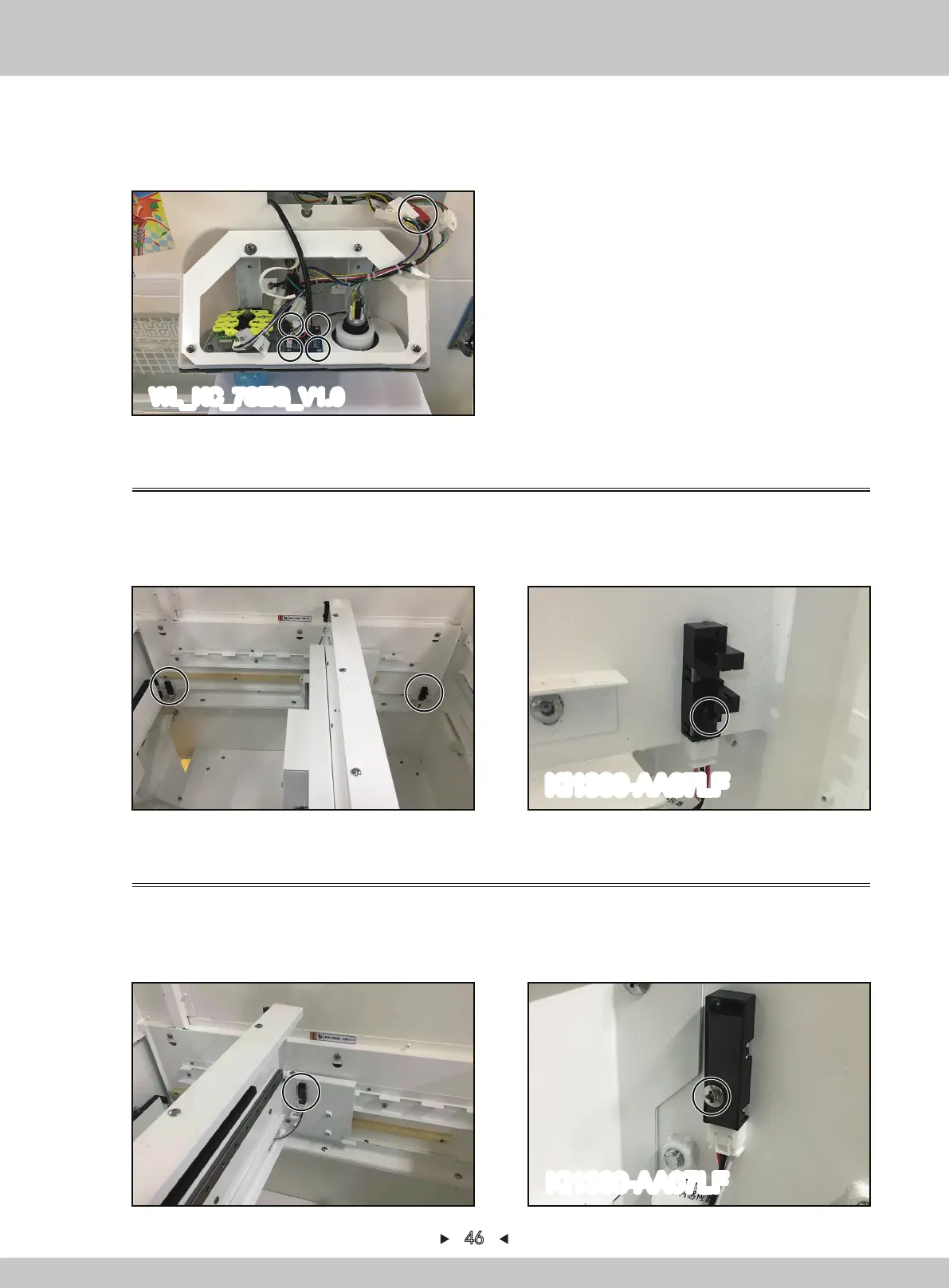

3. Remove 4 screws that fix the digital display board, cut off the cable tie, pull out the
corresponding terminal and remove the digital display board, reinstall in a reverse order
after replacing.
WL_KC_7SEG_V1.0
5.2.9 Replacement of left/right sensors
1. Turn off the game-machine and remove the screen. There are 2 sensors on the horizontal
guide-rail.
2. Remove the screw to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
5.2.10 Replacement of horizontally-moving sensors
1. Turn off the game-machine. Open the acrylic door with the key, remove the screen,there is 1
sensor on the horizontal roller-plate.
2. Remove the screw to fix the sensor, pull out the corresponding terminal and remove the
sensor, reinstall in a reverse order after replacing.
KI1300-AA07LF
KI1300-AA07LF
