6.9 Prize-lane cover-plate components (PP-0800000)
8
Hexagon flat-head screw
M4*8（black coating）
3
7
Cross flat-head screw
M4*10（chrome plated）
2
6
Hexagon flat-head screw M4*6（chrome plated）
18
5 PP-0101A08
Short sealing-plate limit-iron
SPCC-1.2T 1
4 PP-0800A04
Long sealing-plate limit-iron
SPCC-1.2T 1
3 PP-0800A03
Rear prize-lane cover-plate
SPCC-1.2T 1
2 PP-0800A02
Front prize-lane cover-plate
SPCC-1.2T 1
1 PP-0800A01
Left prize-lane sealing-plate
1
SN Name Qty
Drawing No.
Materials/specifications
Note
3
1
7
2
1
1
2
1
6
4
6
8
6
6
5
1
4
1
8
3
Note：One-sided sticky
sponge-strip
20mm Wide X 15mm Thick X 2m Long
Note：One-sided sticky sponge-strip
20mm Wide X 15mm Thick X 2m Long

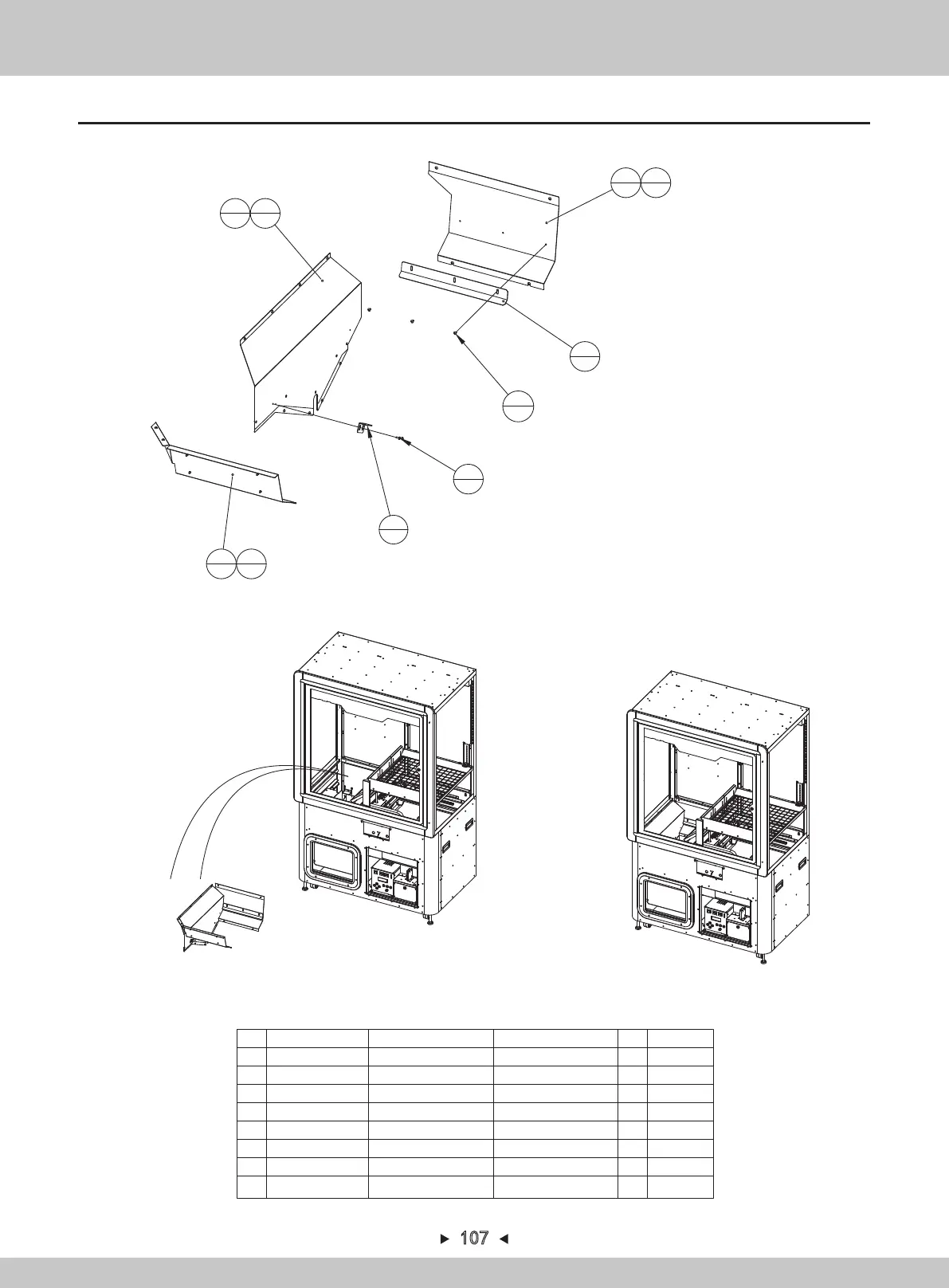

Schematic diagram for installing
the components onto the game
Effect after installation
1.6.LS140012
1.6.LS241012
1.6.LS140021
