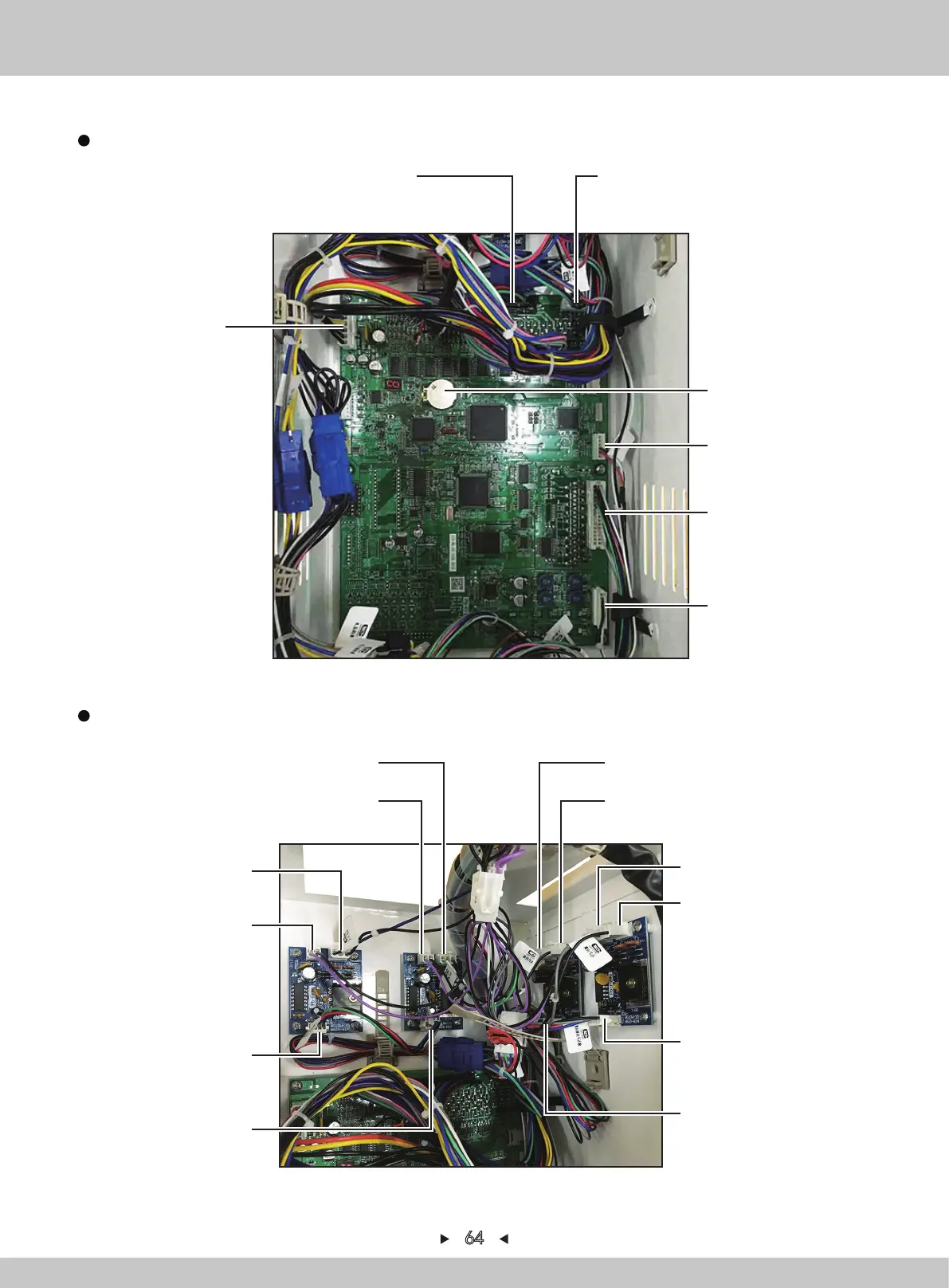

I/O control-line
（Including the control
lines of sealing-plate motor
and moving-up/downr motor）
Power line
24V、12V、5V
Main-board (NTM-020R MAIN PCB）
Motor driver-plate (WL_KC_MotorDrive_V1.0）
Battery
(CR2032 3V)
Volume control
LCD
Loudspeaker
audio cable
64
The control lines of
longitudinal/horizontally-moving
motor
24V Power
Moving-up/down
motor output
Horizontally-moving
motor output
24V Power
Longitudinally-moving
motor output
24V Power
The control lines of
longitudinally-moving
motor
The control lines of
horizontally-moving
motor
24V Power
Sealing-plate motor output
The control lines of
sealing-plate motor
The control lines of
moving-up/down
motor
