ENTRAPMENT SENSOR CONNECTIONS
Entrapment Sensor Connecons
Devices, such as gate edge sensors and photoelectric beams, must be installed to protect against
entrapment. These external entrapment protecon devices are required so the gate installaon is in
compliance with UL 325 Safety Standards.

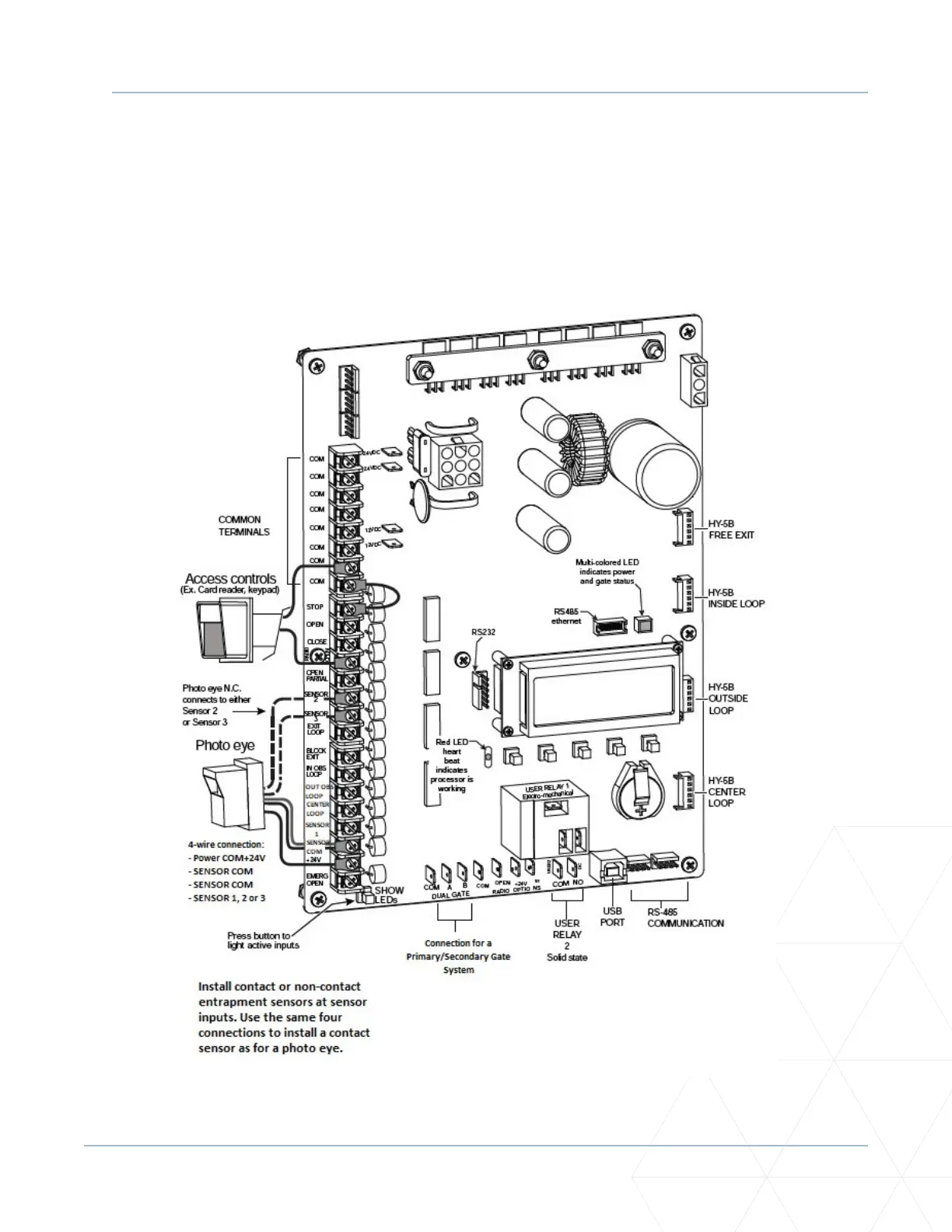

Figure 32 illustrates how to connect dierent sensors to the SmartDC Controller:
Figure 32. Entrapment Sensor Connecons
