INSTALLING A LOCK FOR A HIGH VOLTAGE SYSTEM
Installing a Lock for a High Voltage System
To install a lock on a higher voltage system
(115V or 230V), take the following steps:
1. Connect one lead of the power supply
to one lead of the lock’s coil. See
Figure 38.
2. Connect the other lead of the lock’s
coil to NO on USER 1 RELAY.
NOTE: Connect to NC on USER 1 RELAY if
installing a maglock.
3. Connect the COM on USER 1 RELAY
to the second lead wire in the power
supply (115V or 230V).
4. Set the User Relay funcon in the
Installer Menu to RL1 - 6. Refer to
“Seng the User Relay Funcon in
the Installer Menu” on page 141.

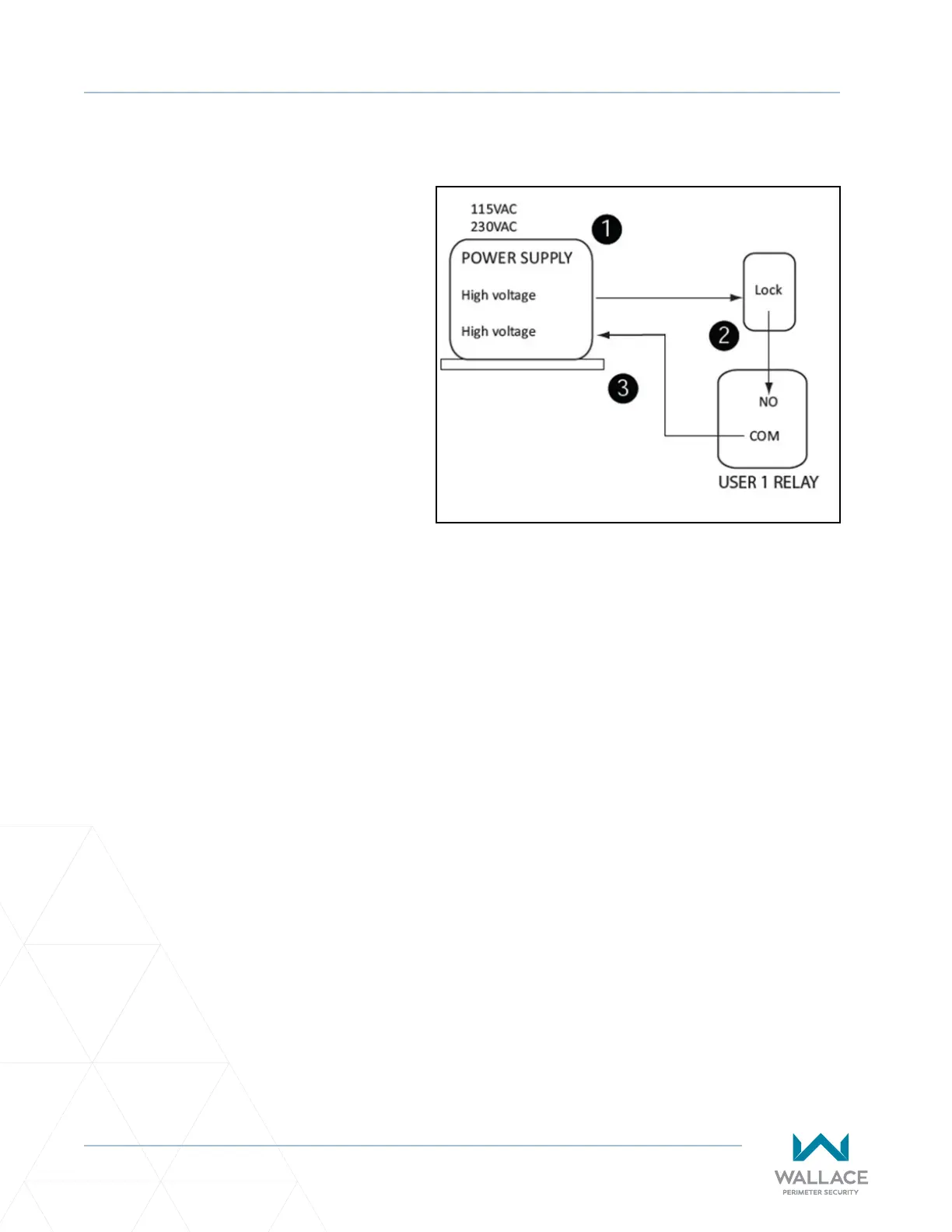

Figure 38. Lock Installaon – High Voltage
