USING THE SMARTDC CONTROLLER BUTTONS IN MENU MODE
Using the SmartDC Controller Buons in Menu Mode
The buons on the SmartDC Controller let you navigate, change, or clear the informaon in the display
menus. Refer to Figure 24.
The buons with text above and below have two funcons. Use these buons to enter operang
commands or navigate through the User and Installer Menus. The singular use of these keys is dependent
on the operator mode.
Three dierent modes exist:
• Run Mode - gate is operaonal awaing commands. Refer to Using the SmartDC Controller Buons
in RUN Mode herein.
• Menu Mode - motor disengages and operator commands are ignored. Data entry, menu navigaon,
and menu selecon can be accomplished via the Controller buons or through a S.T.A.R.T. soware
connecon using the USB port.
• Fault Mode - alerts, faults or errors appear on the display. Some errors or faults can be reset with
the STOP buon while more serious faults require the RESET buon or cycling power. Faults indicate
a need for diagnosis and resoluon. Refer to “SmartDC Controller Troubleshoong” on page 151�

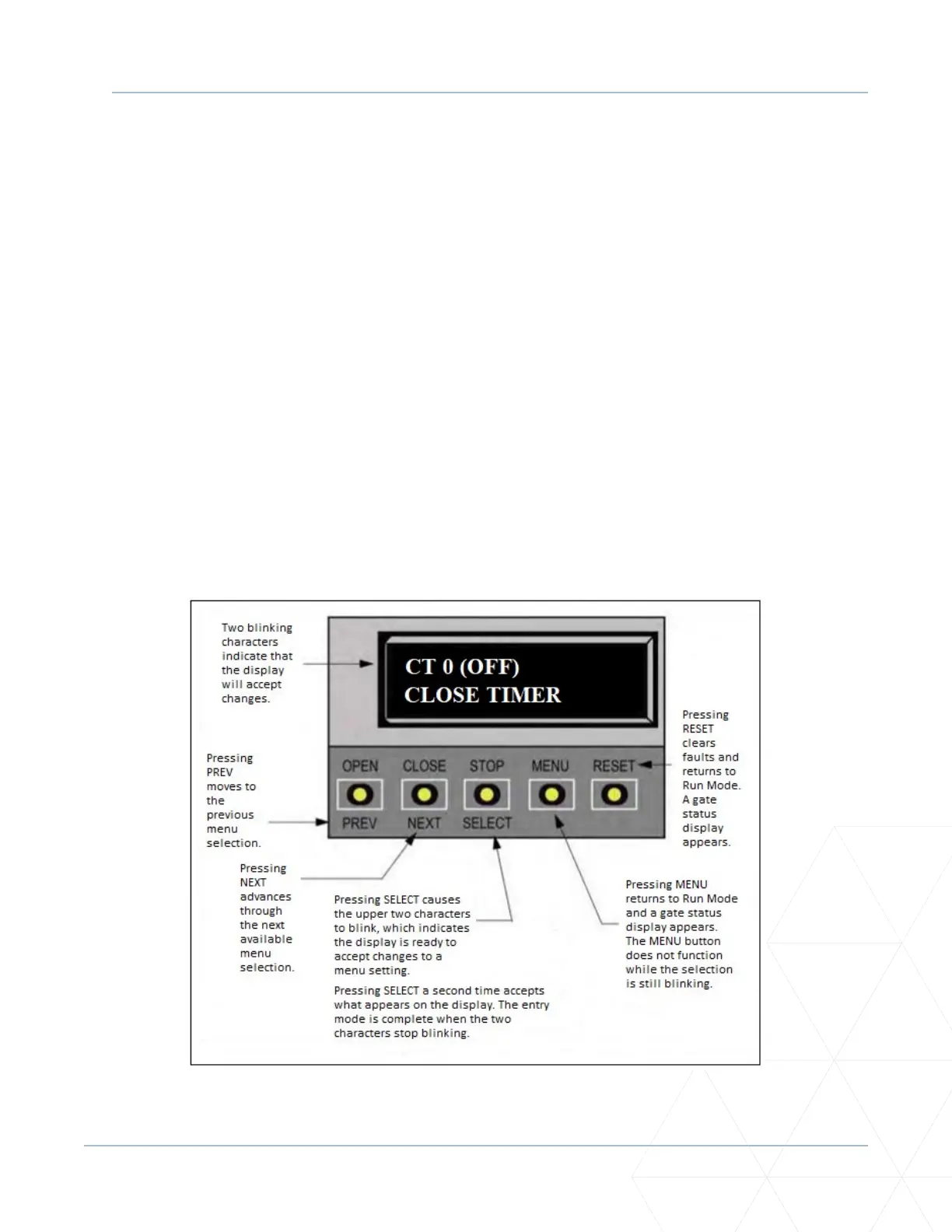

Figure 24. Funcon of the SmartDC Controller Buons in Menu Mode
