ADJUSTING THE DRIVE HEIGHT
Adjusng the Drive Height
Raise the operator to the correct height so that it engages the tooth rack in the gate beam. Clearance
between the tooth rack and spur gear should be 0.11” (2.7mm); an 11ga e wire can be used as a gauge
to set the correct clearance. See Figure 4.
Adjusng the Spur Gear Alignment
1. To adjust spur gear alignment with the tooth rack, loosen but DO NOT REMOVE the two (2) – ¼ -20 x
2.0” retaining bolts and lock nuts on spur gear. See Figures 5 and 6.
2. Insert two (2) – ¼ -20 hex bolts into the threaded holes in the taper bushing. Alternately ghten the
hex bolts to release the taper bushing. When bushing is loose remove the 2 hex bolts. See Figure 7.
3. Adjust spur gear so it is centered on the tooth rack. Re-ghten the two (2) - ¼ -20 x 2.0” retaining bolts
and lock nuts on spur gear.

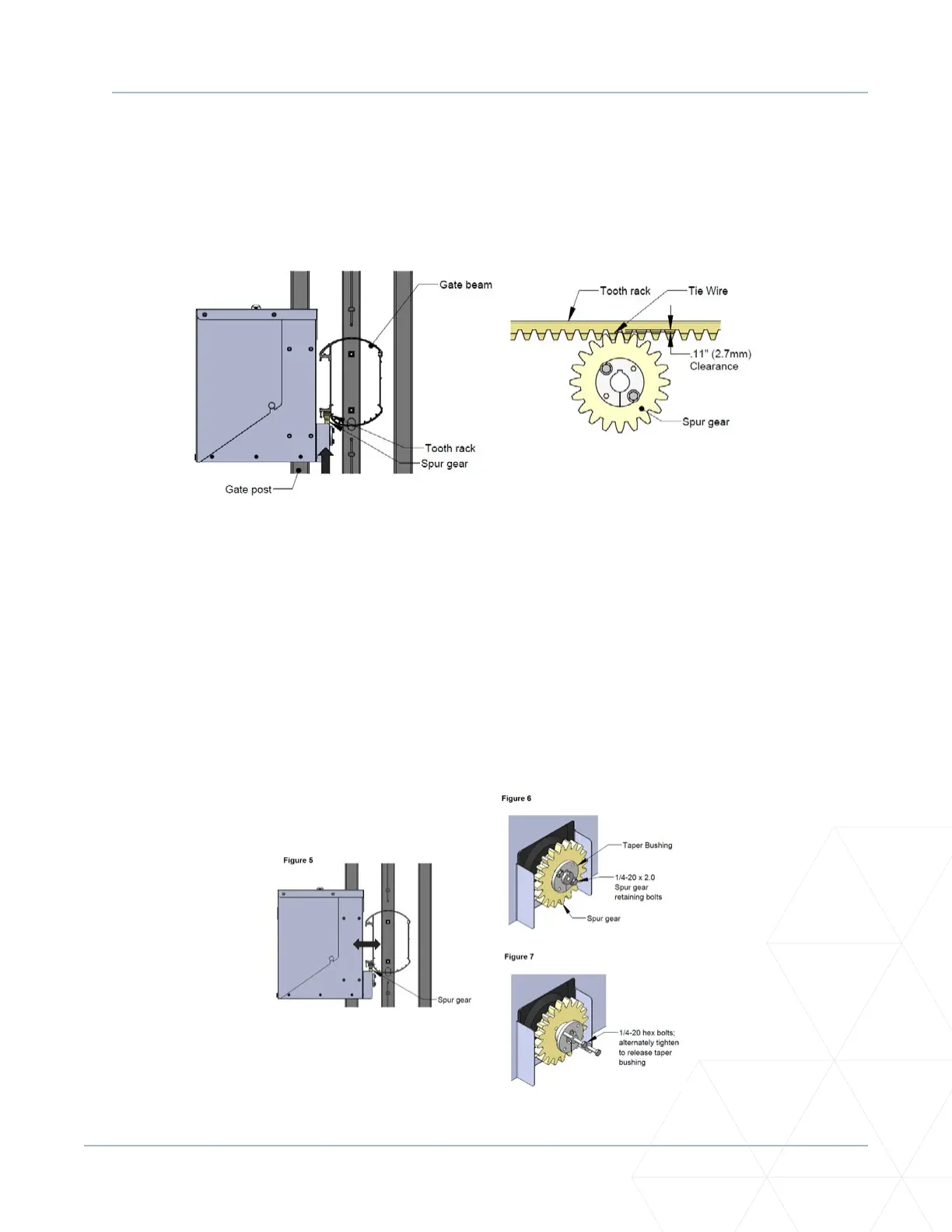

Figure 4. Adjusng Drive Height
Figure 5, 6 & 7. Adjusng Spur Gear Alignment
