INSTALLING THE TOOTH RACK
Installing the Tooth Rack
Hook tooth racks together and slide them into rail throughout the enre length of gate. See Figure 8.
Tooth racks can be .80” (2cm) to 1.18” (3cm) shorter than gate length; tooth rack must not protrude past
the end of the gate beam. See Figure 9.

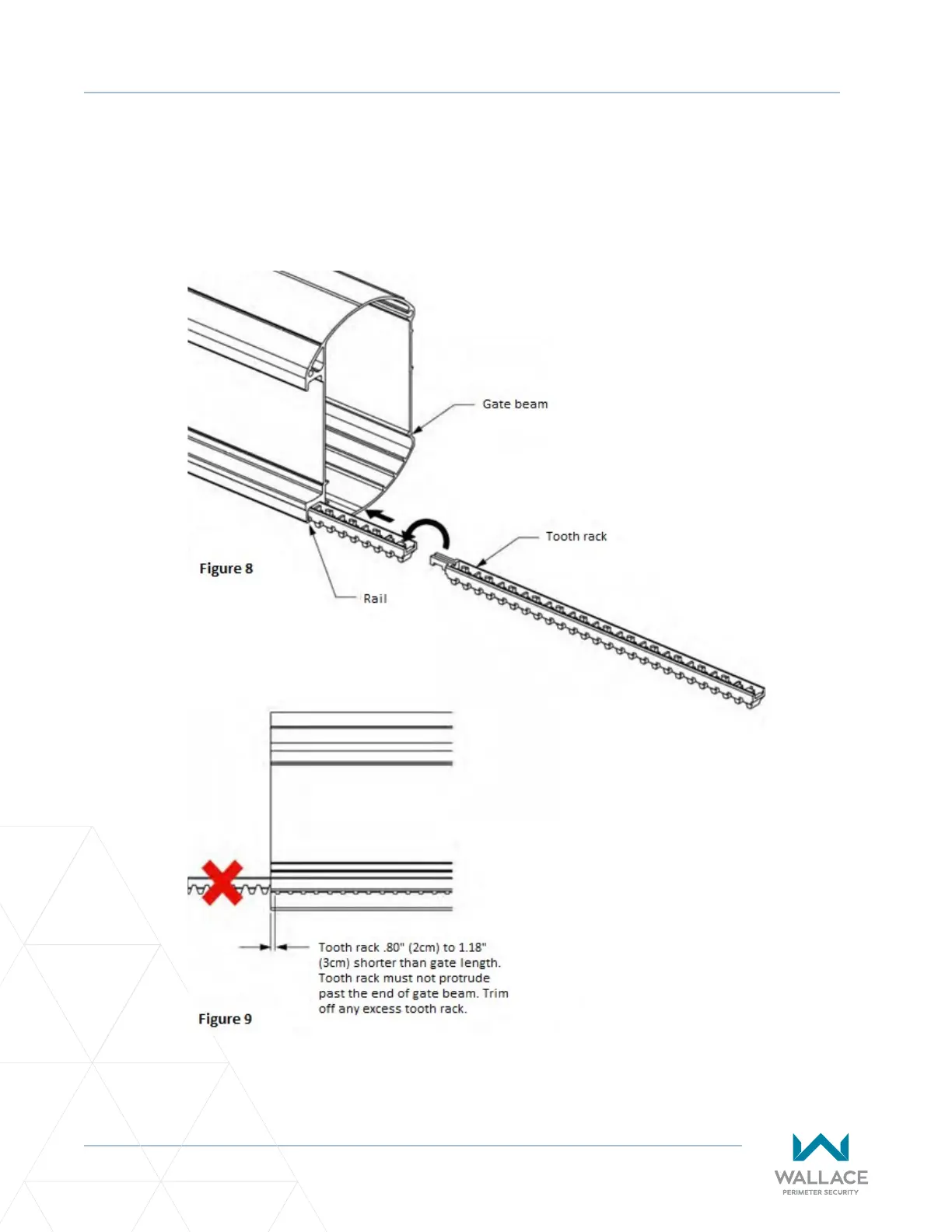

Figure 8 & 9. Tooth Rack Installaon
