Maintenance3303−2/A1
Winterthur Gas & Diesel Ltd.
4/ 8
8) Put the chain of the manual ratchet
(H3, Fig. 5) around the connecting
rod (3).
9) Use the turning gear to turn the crank
to the fuel side. At the same time,
operate the manual ratchet (H3) to
keep a light tension on the chain.
Note: Make sure that there is no load on
the corners (X) of bearing shell (1).
10) Use the turning gear to turn the crank
to 100° after TDC.
11) Do an inspection of the top bearing
shell.
2015
Bottom End Bearing − Removal, Inspection and Installation

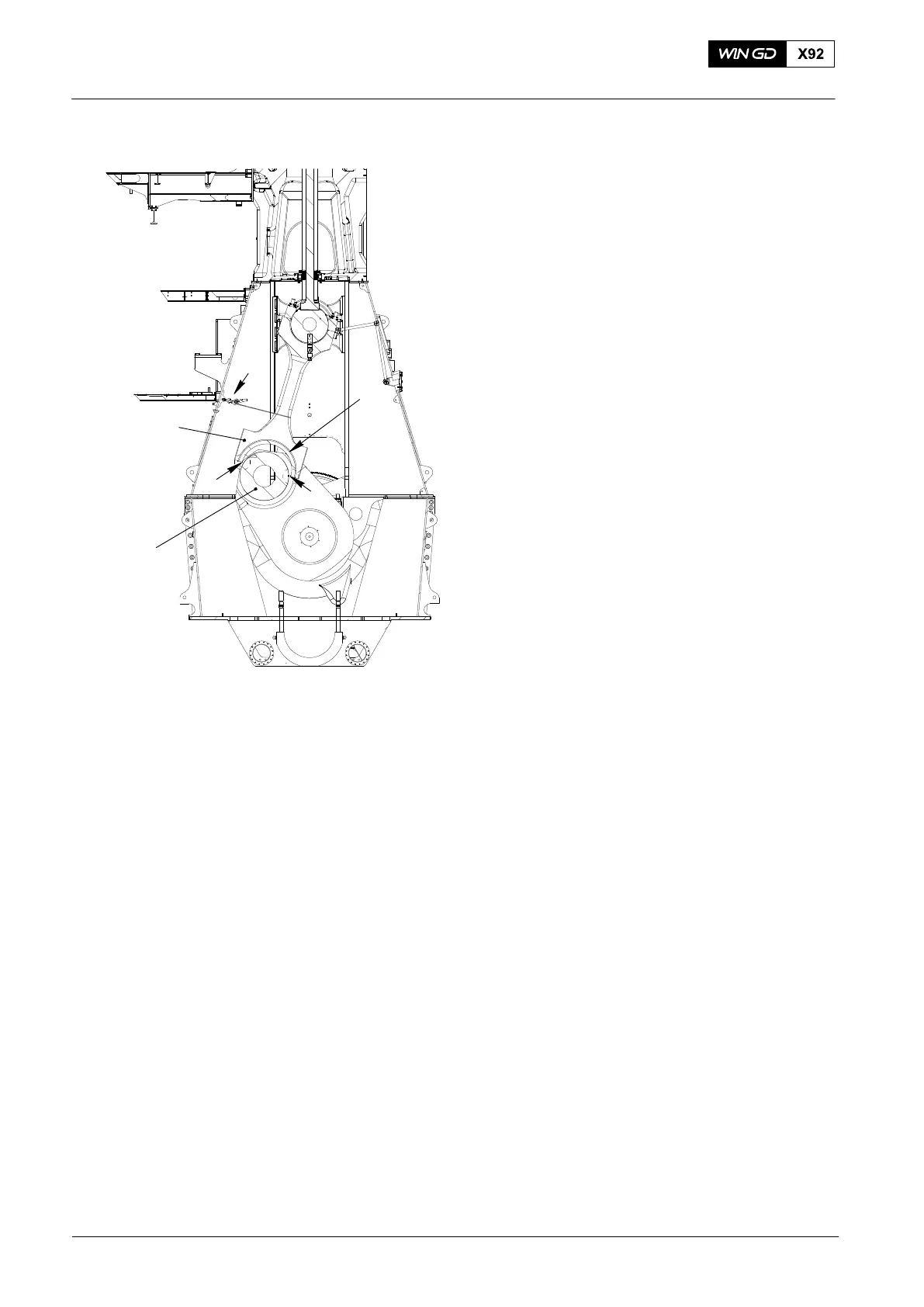

Fig. 5
H3
1
2
3
X
X
WCH03013
