3) Operate the turning gear to turn the
crankshaft until the applicable crank (2,
Fig. 1) is at TDC.
4) Lock the turning gear.
5) Attach the eye bolts (94045-M24) to the
bearing cover (3).
6) Attach the manual ratchets (H2, H3)
and shackles (94019L) to the column.
7) Connect the manual ratchets (H2, H3)
to the shackles (94019L) and eye bolts
(94045-M24) on the bearing cover (3).
8) Apply a light tension to the manual
ratchets (H2, H3).
2017
Bottom End Bearing − Removal, Inspection and Installation
EXHAUST SIDE
H
2
2
3
94045-M24
H3
94019L
1
4
WCH03783

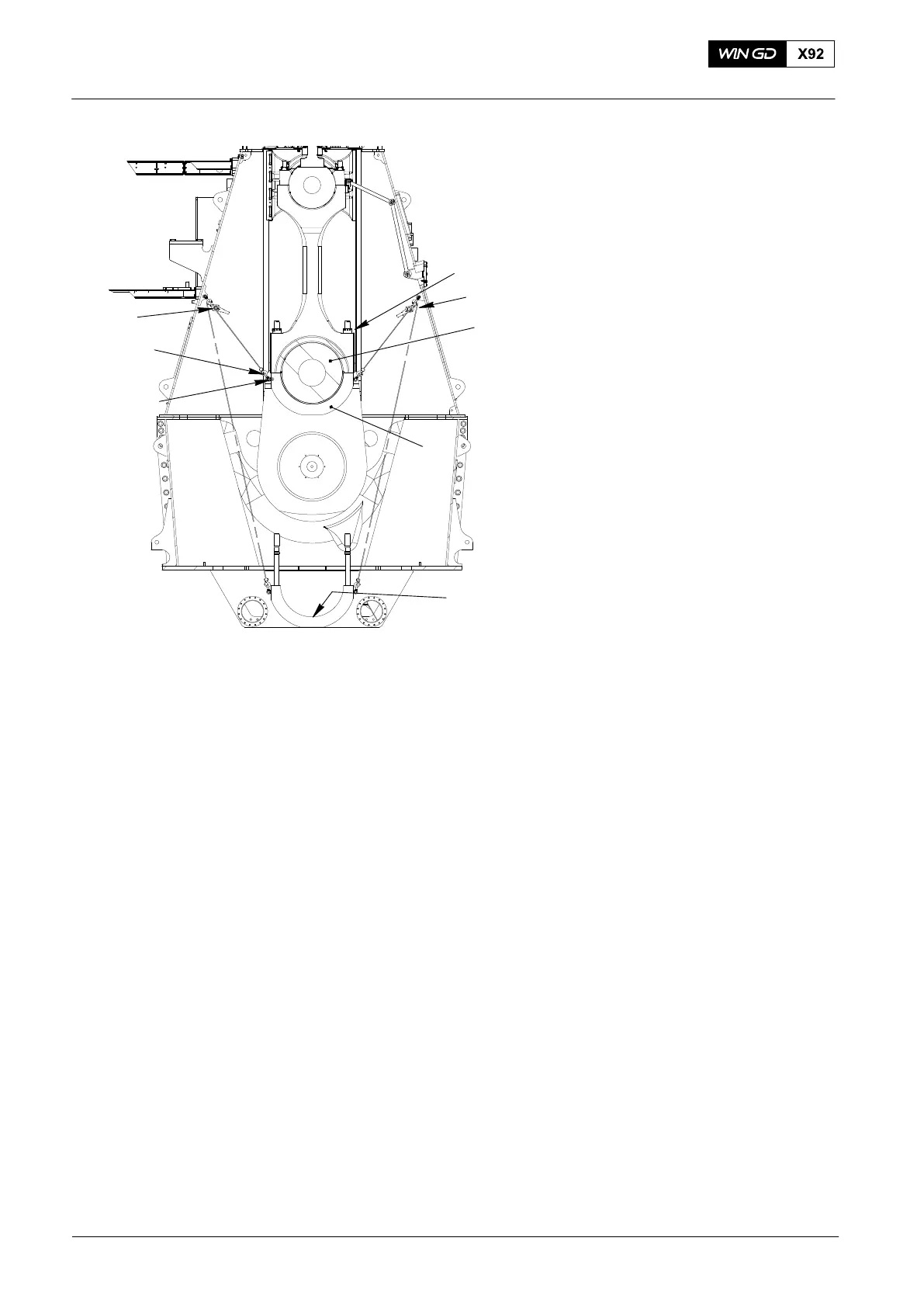

Fig. 1
