6) Remove the manual ratchet (H6).

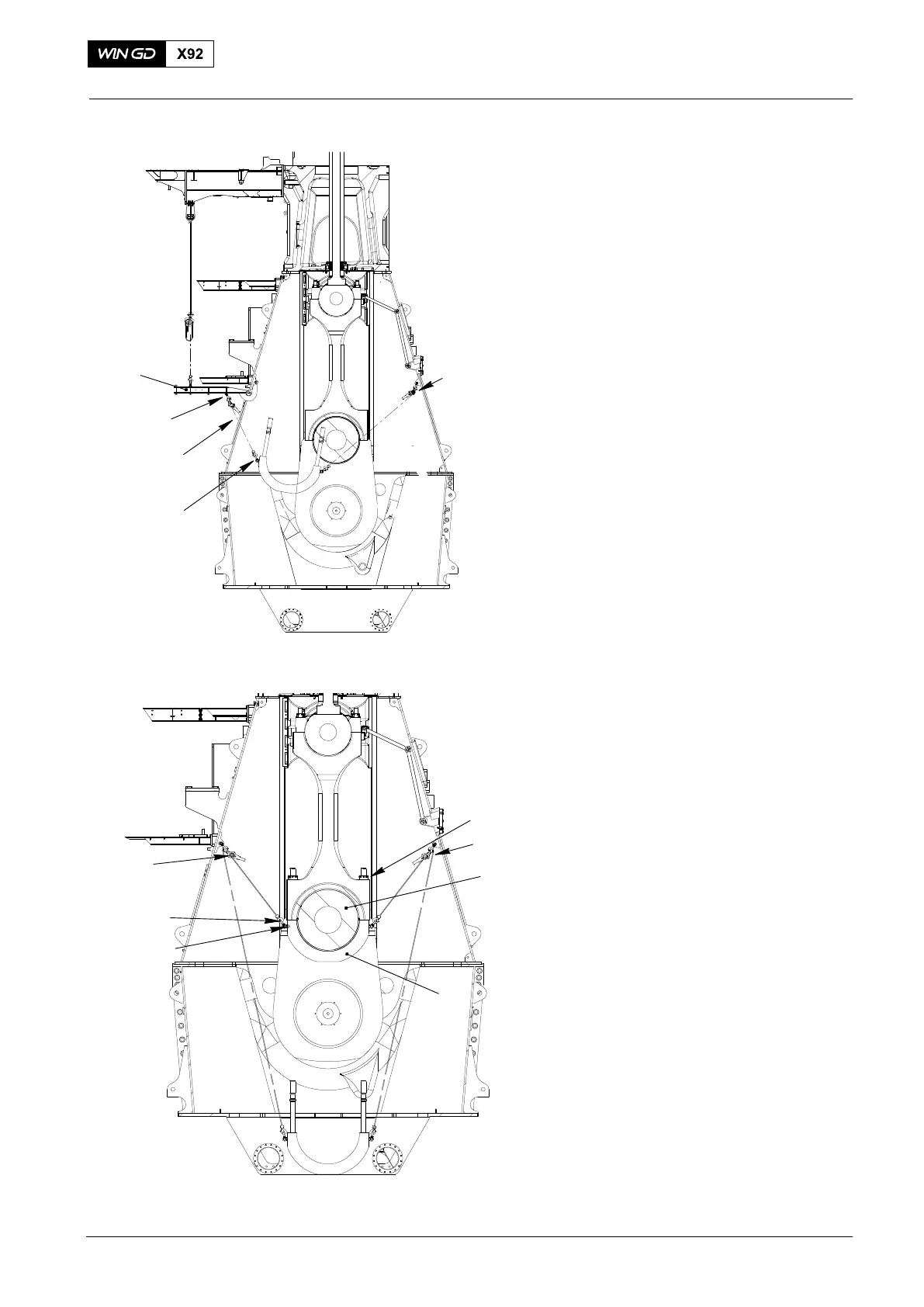

7) Operate the manual ratchets (H2, H3,
Fig. 18) to lower the bearing cover on
to the crankcase floor.
8) Remove the manual ratchet (H3) from
the support (94116D).
9) Attach the manual ratchet (H3, Fig 19)
to the shackle (94019L).
10) Operate the manual ratchets (H2 H3) to
lift the bearing cover (1) into position.
2017
Bottom End Bearing − Removal, Inspection and Installation
H2
H3
9
4016D
94019G
94019L
WCH03783
Fig. 18
H2
2
3
94045-M24
H3
94019L
1
WCH03783
94019L
Fig. 19
