8. Bearing Cover −
Installation
1) Attach the support (94116D) to the
column, refer to paragraph 2, step 7).

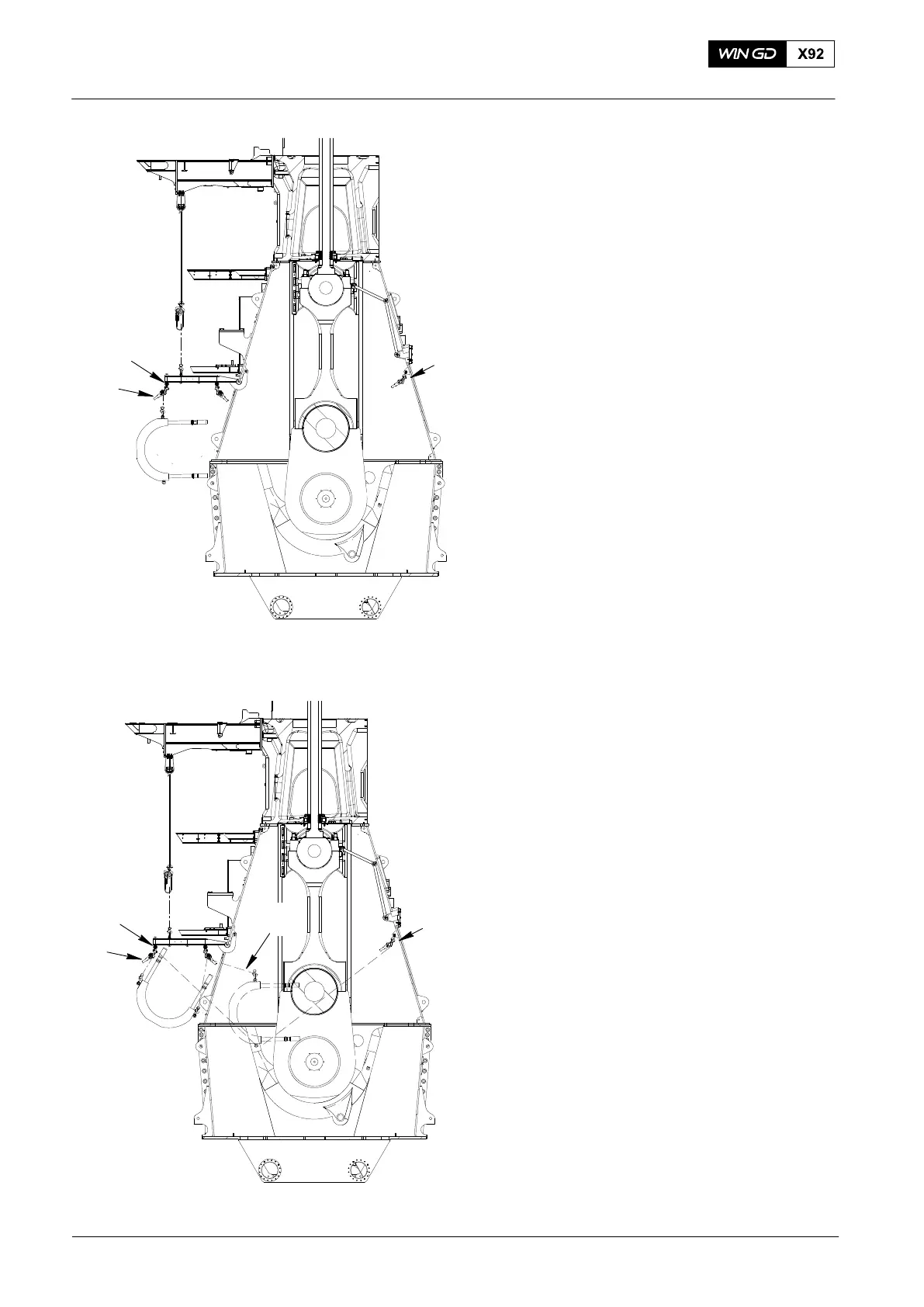

2) Attach the manual ratchet (H6, Fig. 16)
to the bearing cover.
3) Operate the manual ratchet (H6) to lift
the bearing cover to the position
shown.
4) Attach the manual ratchets (H2, H3,
Fig. 17) to the shackles on the bearing
cover.
5) Operate the manual ratchets (H2, H3,
H6) to move the bearing cover through
the column door.
