WARNING
Injury Hazard: Before you
operate the turning gear,
make sure that no
personnel are near the
flywheel.
15) Operate the turning gear to move the
crank to TDC. At the same time, make
sure that there is no load at points (X,
Fig. 14).
16) Remove the two supports (94322) and
(94322A) (Fig. 7).
7. Bottom Bearing Shell −
Installation
1) Attach the four eye bolts (94045-M10),
(Fig. 15) to the bottom bearing shell (3).
2) Attach the chain (94327) to the four eye
bolts (94045-M10).
3) Lift the bottom bearing shell (3).
4) Clean the seating surface of the
bearing cover (2) and the bearing
shell (3).
5) Put oil on the surface of the bearing
shell (3).
6) Attach the bottom bearing shell (3) to
the bearing cover (2) with the four
screws (1).
Note: Make sure that the distance
between each end of the bearing
shell and the connecting rod rod is
the same.
7) Remove the chain (94327) and the four
eye bolts (94045-M10).
2017
Bottom End Bearing − Removal, Inspection and Installation
H3
1
2
3
X
X

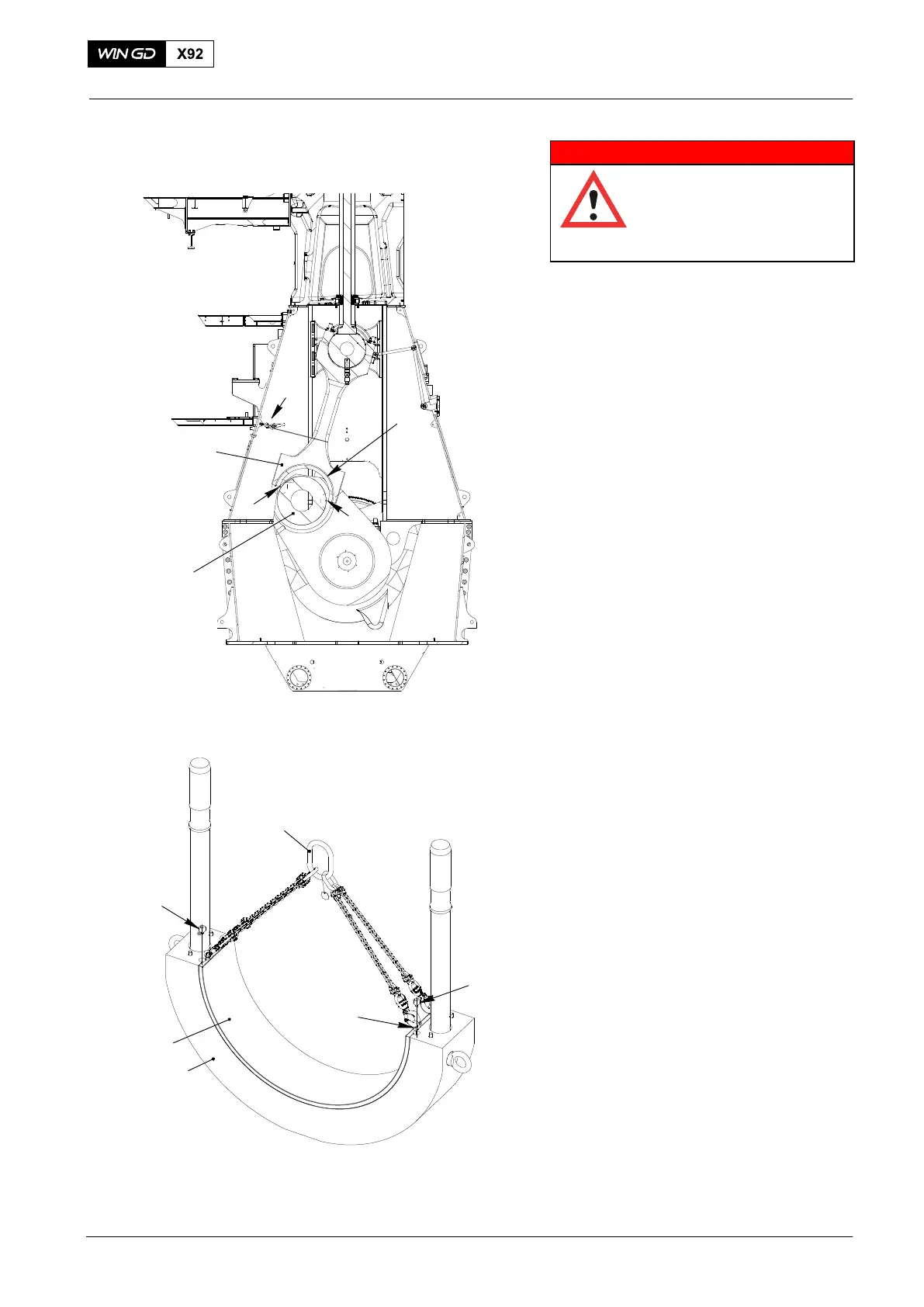

WCH03783
Fig. 14
1
1
94327
2
94045-M10
3
Fig. 15
WCH03013
