WinGD X92 - Page 293

Maintenance
3303−5/A2
Winterthur Gas & Diesel Ltd.
7/ 8

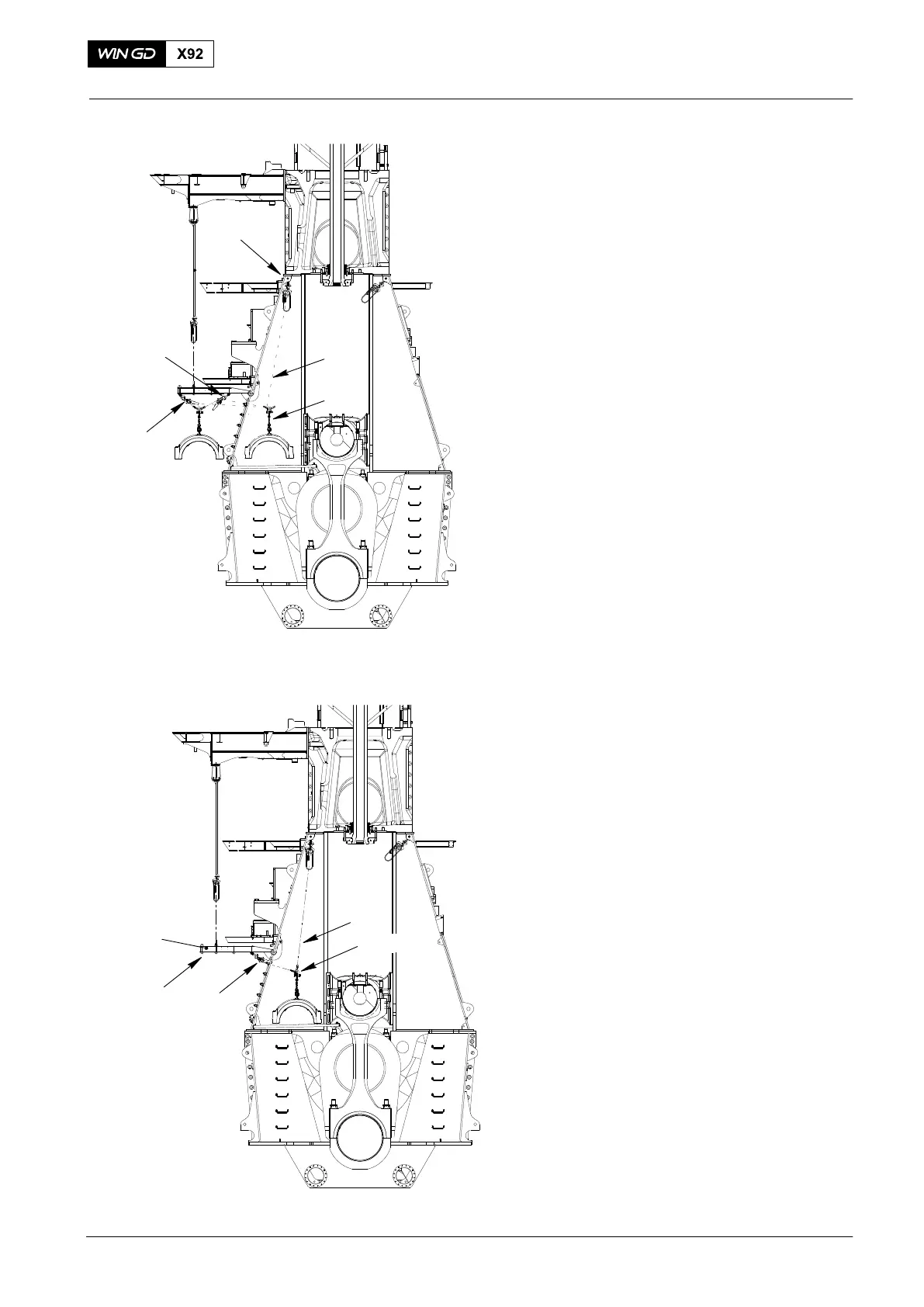

12) Attach the chain block (H3, Fig. 12) to
the shackle (94019P) and the shackle
on the chain (94325).
13) Operate carefully the chain block (H3)
and the manual ratchets (H1, H2) to
move the bearing cover through the
column door.
14) Remove carefully the manual
ratchet (H2).
15) Operate the chain block (H3, Fig. 13)
and the manual ratchet (H1) to lift the
bearing cover.
2017
Top End Bearing Cover − Removal, Inspection and Installation
H2
H1
94019G
WCH03784
H3
94019P
Fig. 12
94325
Fig. 13
H1
H3
94019G
94116D
WCH03784
94019L
94019G
