6) Install the support (94116D), refer to
paragraph 2, step 5).
7) Attach the manual ratchets (H1 and H2,
Fig. 10) to the support (94116D).
8) Attach the manual ratchet (H2) to the
shackle on the chain (94325).
9) Operate the manual ratchet (H2) to lift
the bearing cover to a sufficient height.
10) Attach the manual ratchet (H1) to the
shackle on the chain (94325).
11) Operate the manual ratchets (H1, H2)
to move the bearing cover to the
position shown in Fig. 11.
2017
Top End Bearing Cover − Removal, Inspection and Installation
H2
WCH03784
H1

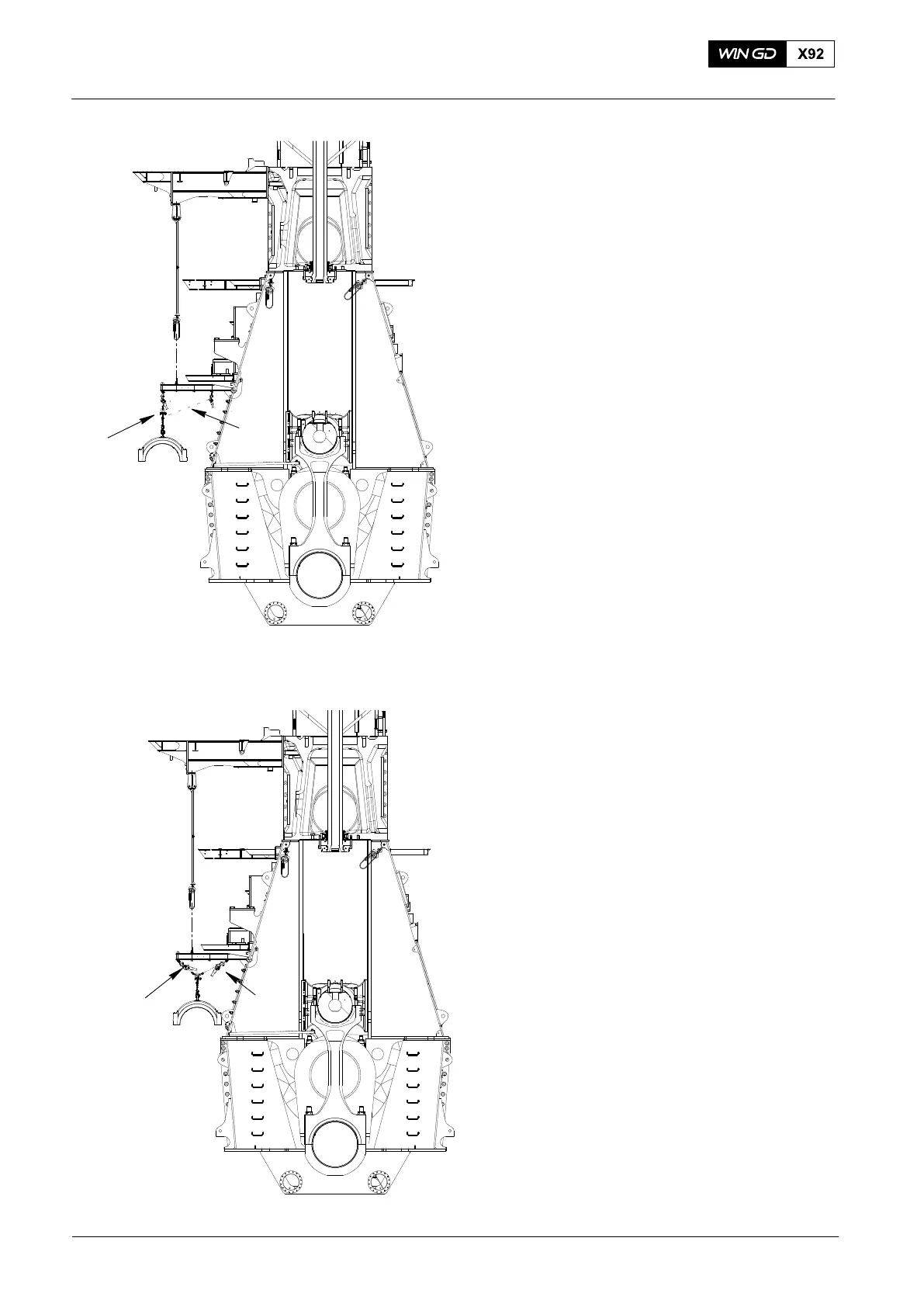

Fig. 10
H2
H1
94019G
WCH03784
Fig. 11
94325
