Maintenance
8460−1/A1
Winterthur Gas & Diesel Ltd.
3/ 5
2. Removal
CAUTION
Damage Hazard: Make sure
that you do not damage
the sealing faces or the
hydraulic pipes.
1) Remove the six screws (2, Fig. 3) from
the flange (4).
2) Carefully move the flange (4) away
from the top housing (3).
3) Remove the six screws (1, Fig. 4) from
the flange (3).
4) Carefully move the flange (3) away
from the VCU (2).
CAUTION
Injury Hazard: The weight
of the hydraulic pipe is
approximately 70 kg. Use
approved equipment or
sufficient personnel to lift
and move the hydraulic
pipe.
5) Carefully remove the hydraulic pipe (4).
6) Apply protection to the sealing
faces (SF) to prevent damage and
contamination.
Hydraulic Pipe for Exhaust Valve Drive: Removal, Grind Sealing Faces and Installation
2015

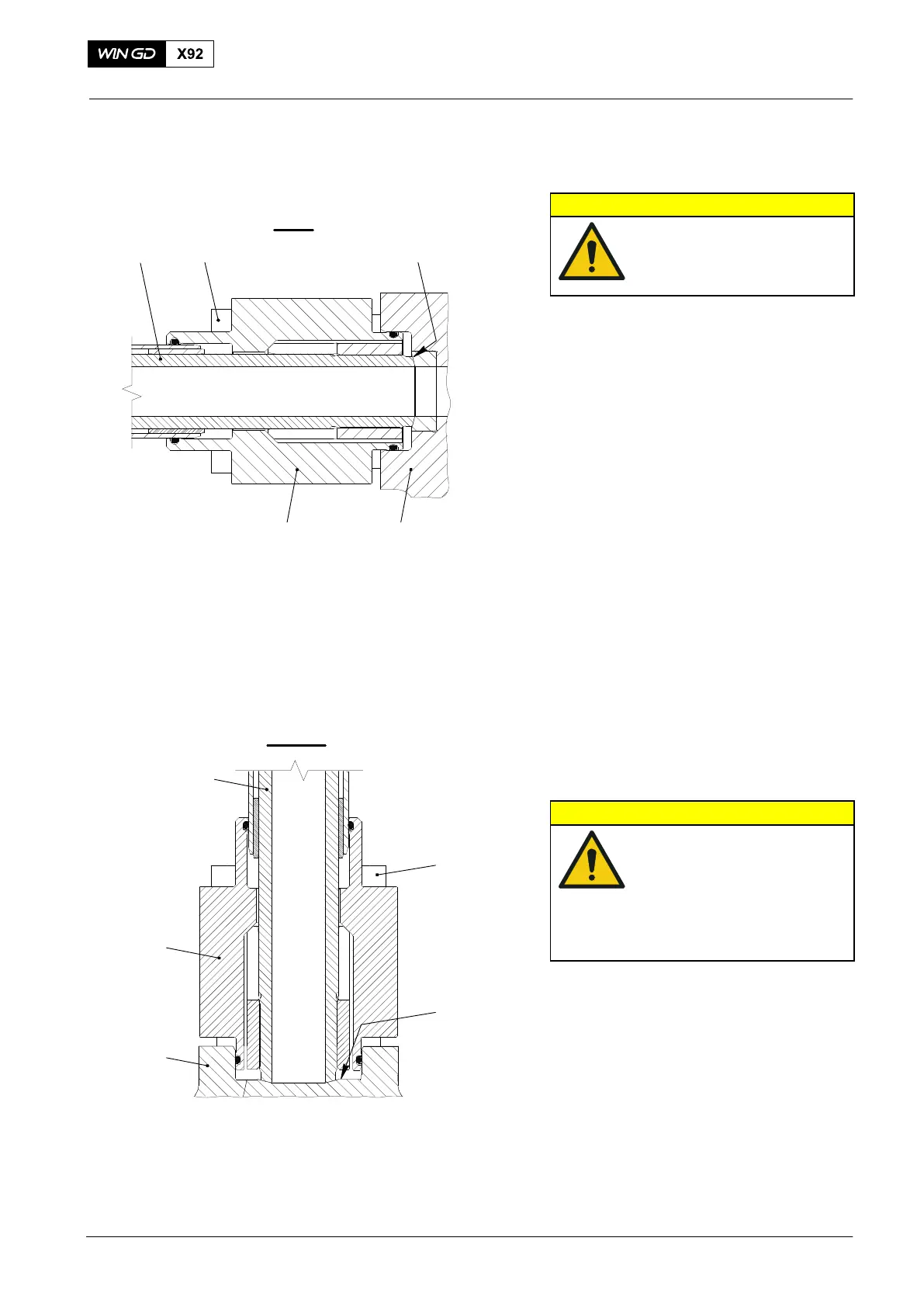

Fig. 3
I - I
WCH02952
1SF2
43
Fig. 4
II - II
1
SF
3
2
WCH02952
4
