Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
7/ 41

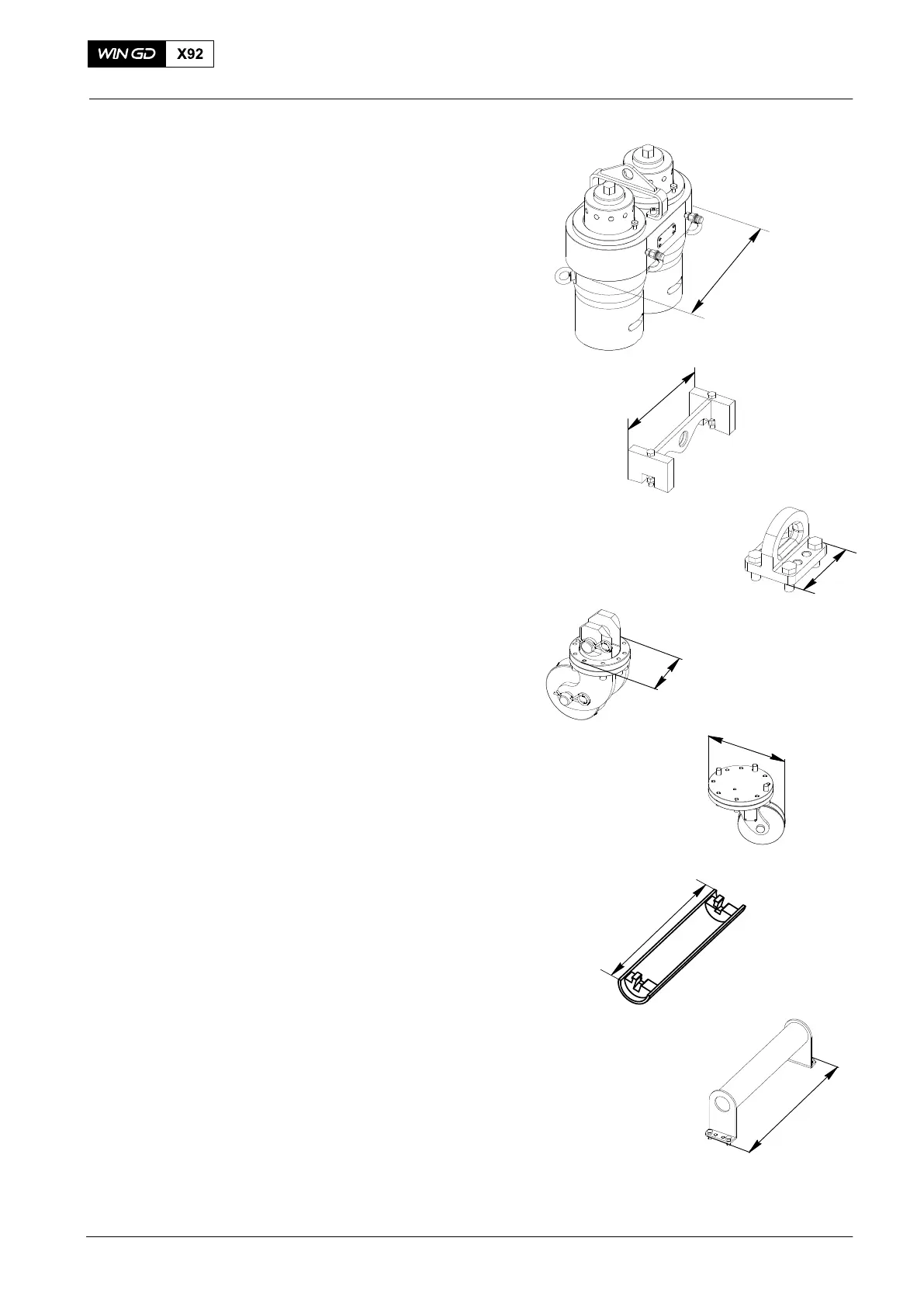

94114 2 Double pre-tensioner
for elastic studs to main bearing
X = 447 mm
Mass approx. 173 kg
X
WCH02821
94116A 1 Lifting tool
for removal and fitting of main bearing
shell
X = 266 mm
(WLL 150 kg)
WCH02247
X
94116C 1 Lifting lug
for removal and fitting of main bearing
cover
X = 120 mm
(WLL 1800 kg)
WCH02247
X
94117 1 Roller support
for removal and fitting of main bearing
cover
X = 210 mm
(WLL 1200 kg)
X
016.732/08
94117A Roller support
for removal and fitting of:
− main bearing, cover, shell
WLL 1600 kg
X = 367 mm
X
94117B 1 Deviation pipe
To remove and install the:
− main bearing, cover, shell
− connecting rod, cover, shell
− etc.
X = 700 mm
WCH02247
X
94117C 1 Deviation pipe
for removal and fitting of:
− main bearing, cover, shell
− connecting rod, cover, shell
− etc.
X = 774 mm
X
WCH01819
Standard Tools
2017−11
