Xerox B310

Left Side Removals
LLeefftt CCoovveerr RReemmoovvaall

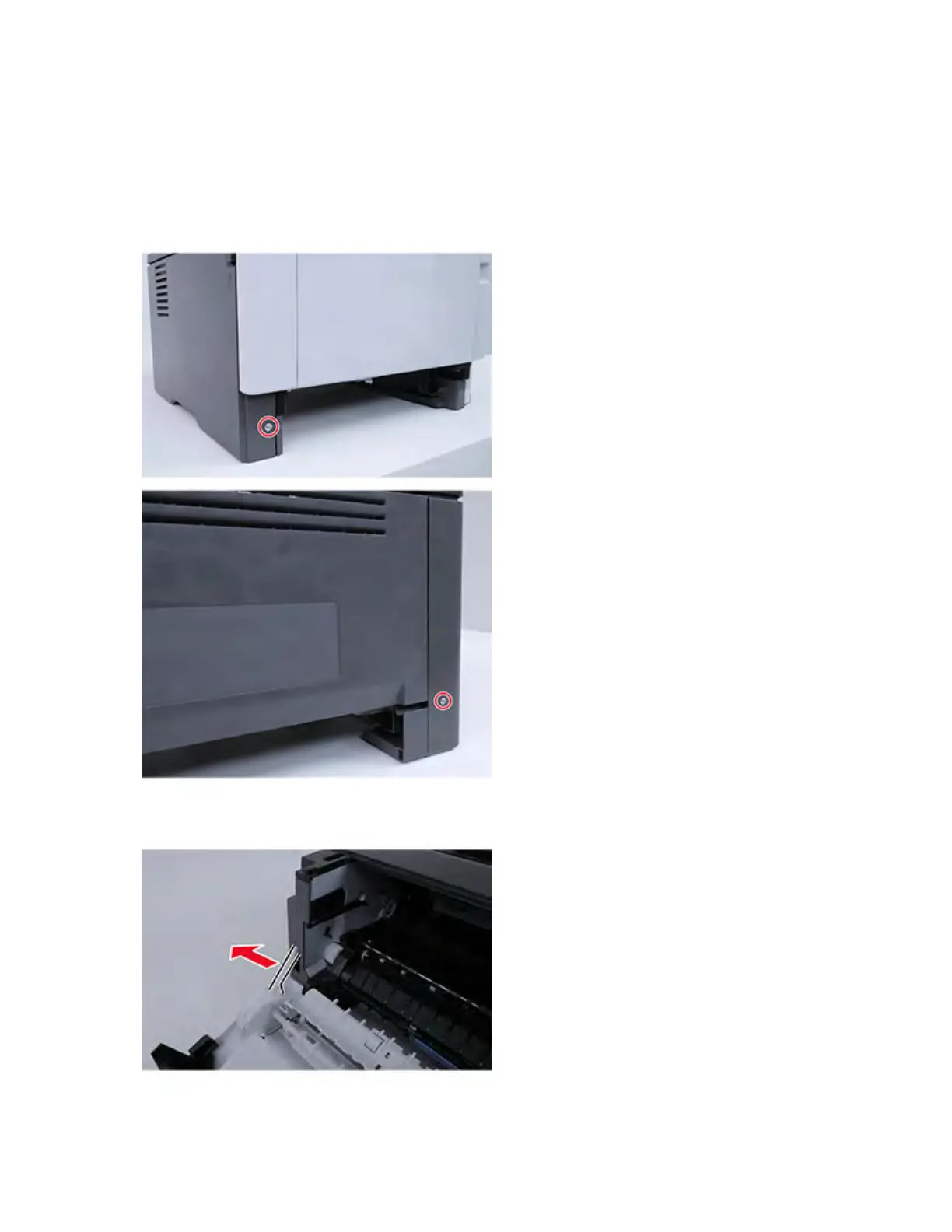

1. Remove the screw at the front, and then remove the screw at the rear of the cover.
2. Open the front door, and then release the left front door link.
Xerox
®
B310 Printer
Service Manual
147
Parts Removal
