Xerox B310

Front Removals
CCoonnttrrooll PPaanneell RReemmoovvaall
1. Remove the left cover. See Left cover removal.
2. Remove the right cover. See Right cover removal.
3. Remove the top cover. See Top Cover Removal.

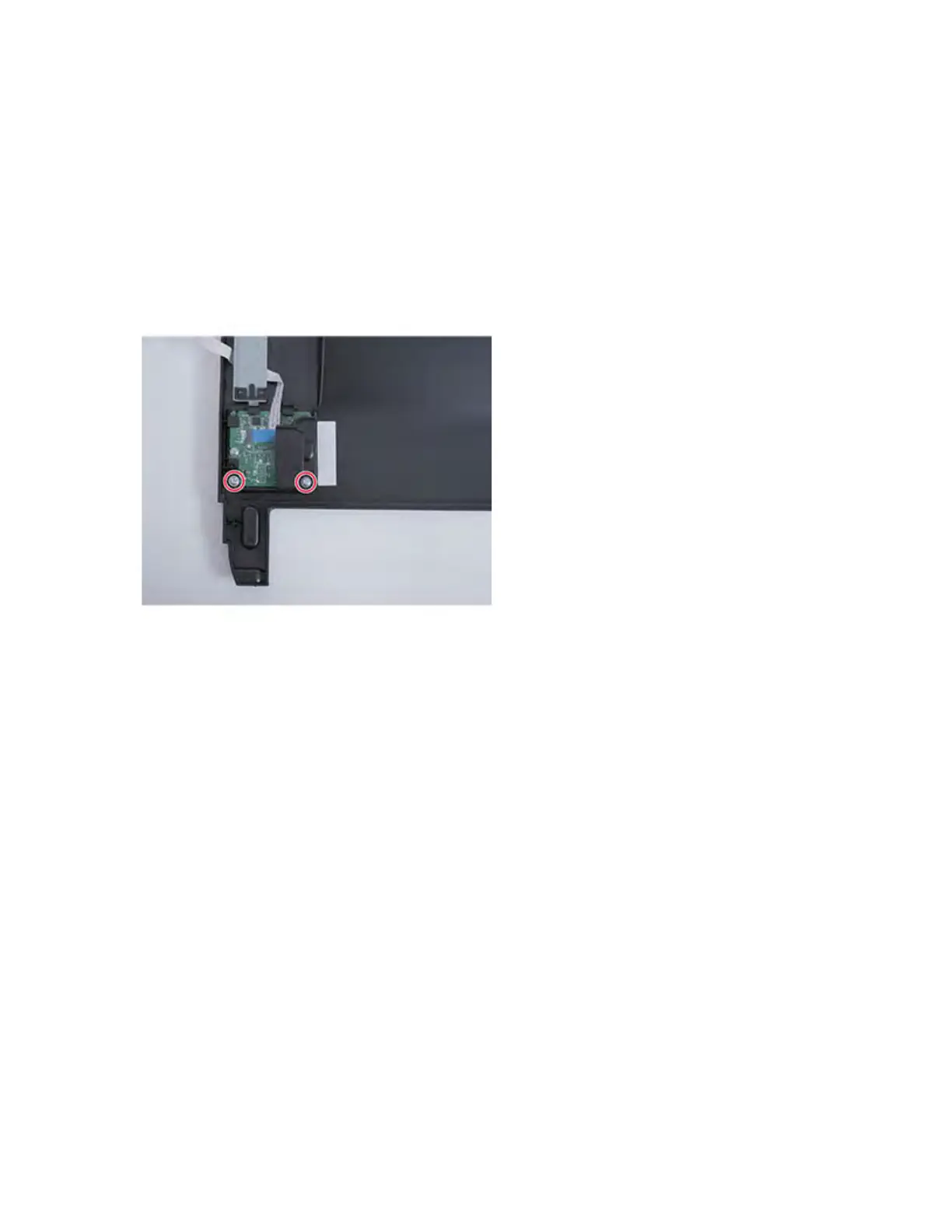

4. Remove the two screws, and then remove the control panel.
CCoonnttrrooll PPaanneell CCaabbllee RReemmoovvaall
1. Remove the left cover. See Left cover removal.
2. Remove the right cover. See Right cover removal.
3. Remove the top cover. See Top Cover Removal.
4. Remove the control panel. See Control Panel Removal.
Xerox
®
B310 Printer
Service Manual
165
Parts Removal
