Xerox B310

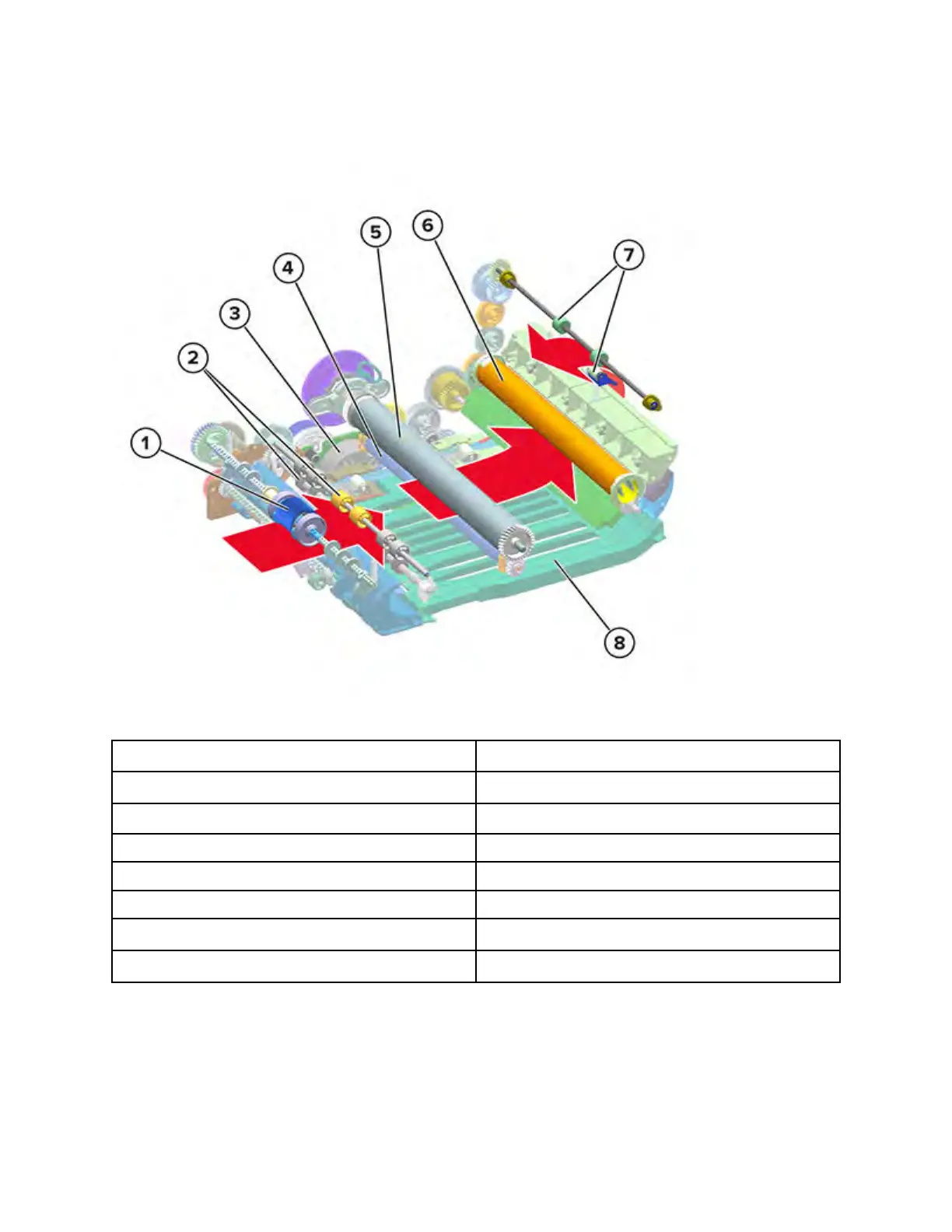

MMaaiinn DDrriivvee
1 MPF pick roller
2 Transport roller
3 Motor (main drive)
4 Transfer roller
5 Photoconductor
6 Fuser
7 Paper exit roller
8 Duplex
The motor (main drive) provides mechanical power to the printer.
The motor transfers power through several gears to the following parts:
• MPF pick roller
• Transport roller
224
Xerox
®
B310 Printer
Service Manual
Theory Of Operation
