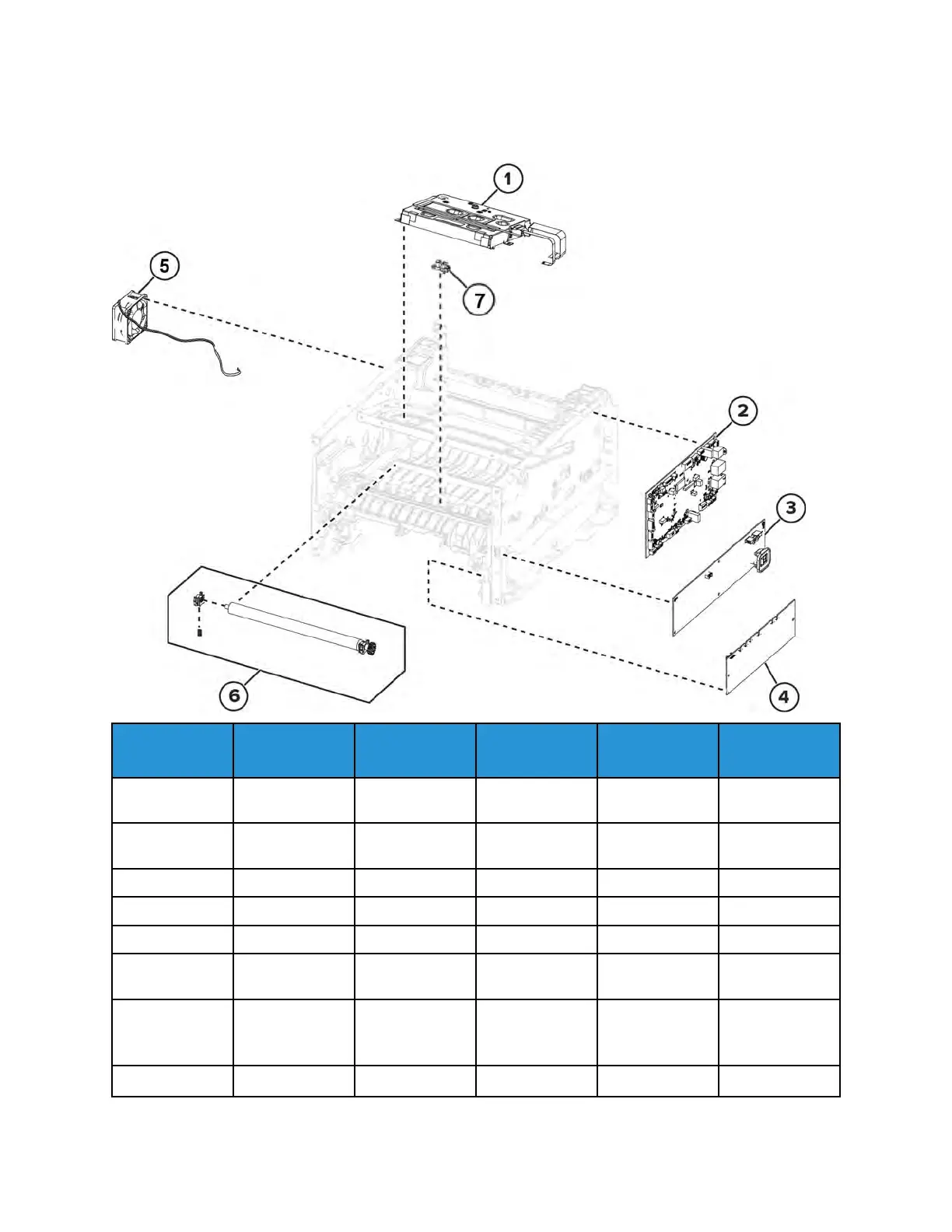

Assembly 2: Electronics
Asm-index P/N Units/mach Units/FRU
Description
Removal
procedure
1 046N00243 1 1 Printhead Printhead
removal
2 109N00869 1 1 Controller board Controller board
removal
3 112N00265 1 1 LVPS 110V LVPS removal
3 112N00266 1 1 LVPS 220V LVPS removal
4 112N00269 1 1 HVPS HVPS removal
5 127N07968 1 1 Main fan Main Fan
Removal
6 022N02903 1 3 Transfer roller,
bearing, and
spring
Transfer roller
removal
7 130N01897 1 1 Sensor (input)
Xerox
®
B310 Printer
Service Manual
197
