TTrraannssffeerr RRoolllleerr RReemmoovvaall
Note: For a video demonstration, see Transfer roller removal.
1. Open the front door.

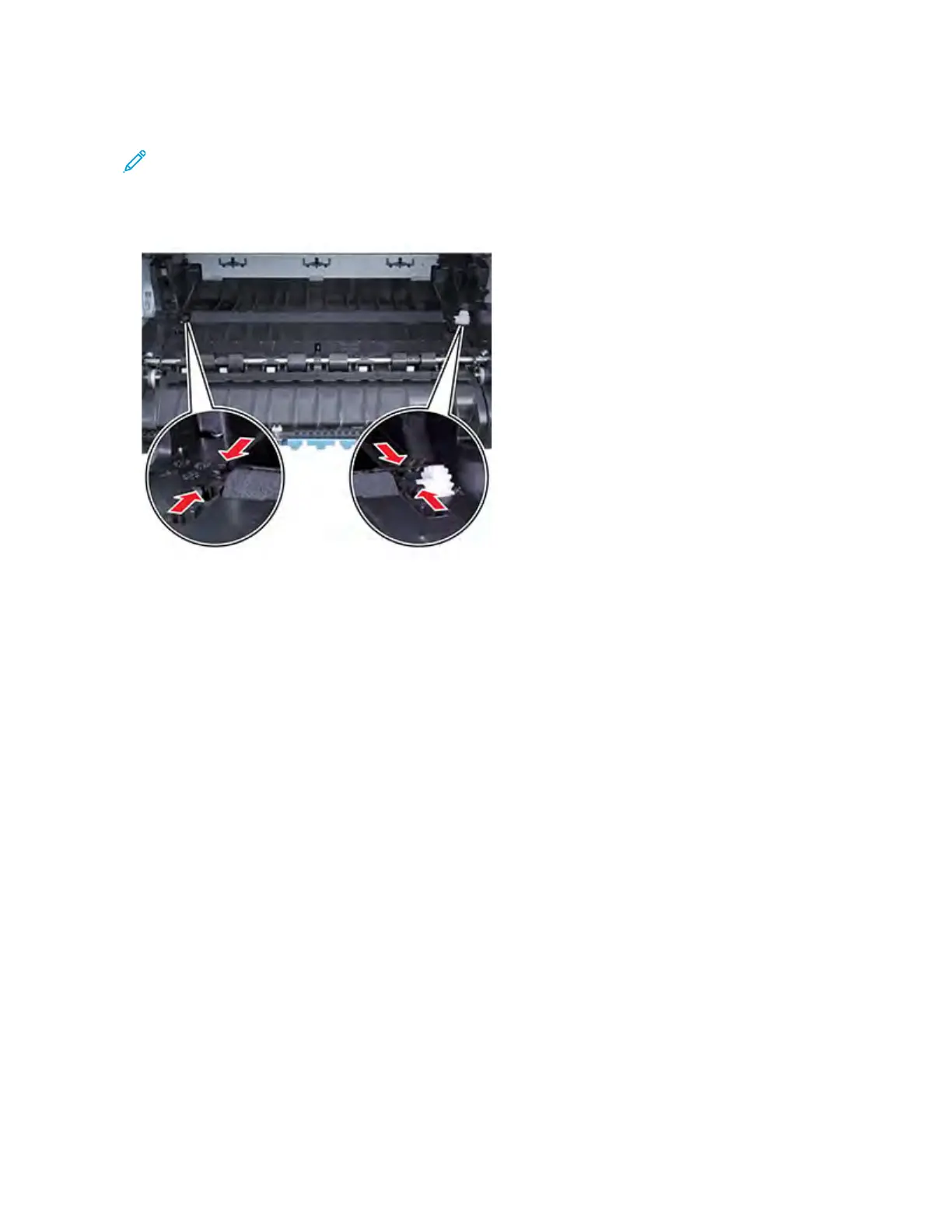

2. Release the two latches, and then remove the transfer roller.
Installation notes:
• Do not touch the foam on the roller.
• The shaft has grease. To avoid contaminating the roller, do not touch the shaft.
• Make sure that the spring is properly installed on the left side of the roller.
MMPPFF PPiicckk RRoolllleerr RReemmoovvaall
1. Open the front door.
168
Xerox
®
B310 Printer
Service Manual
Parts Removal
