3. Place the printer on its right side.

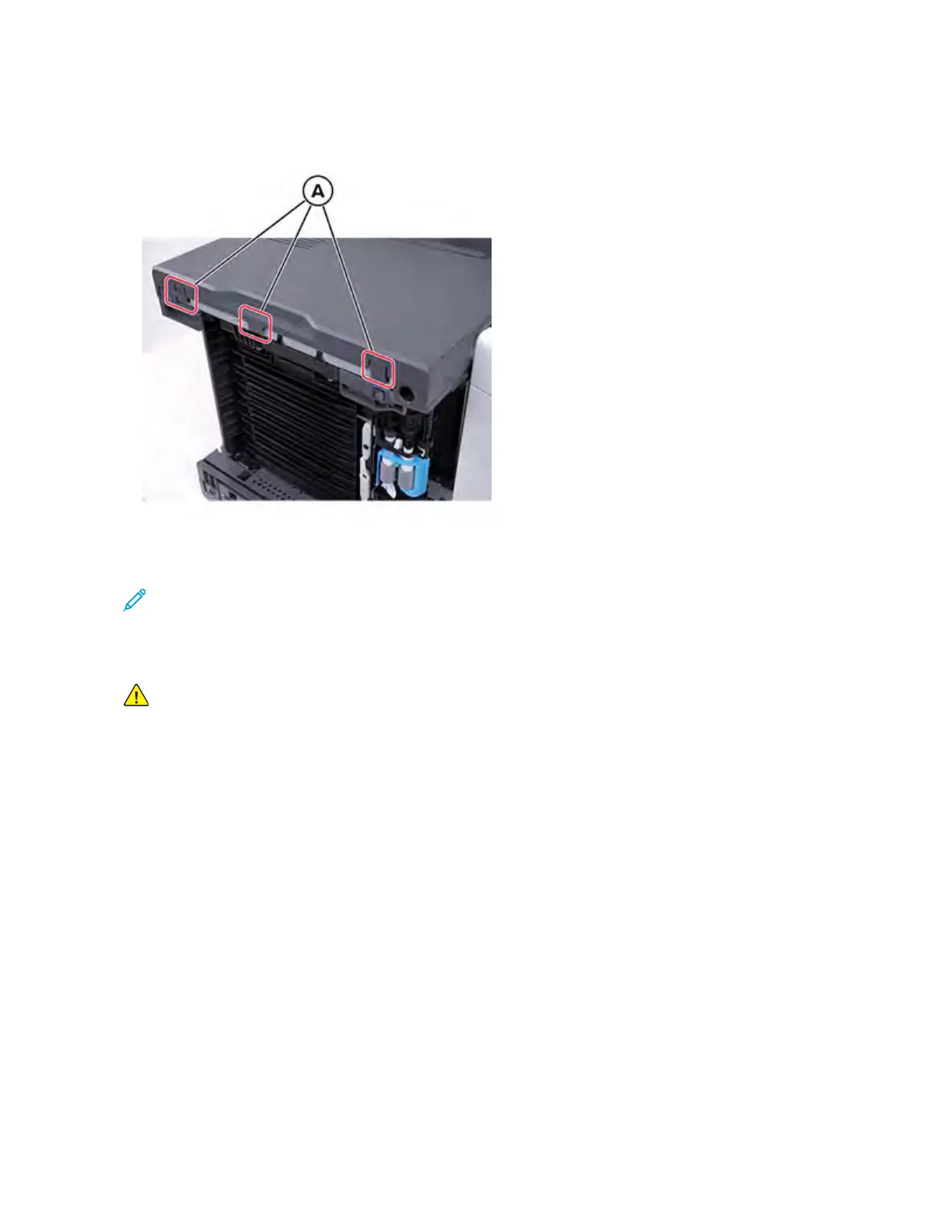

4. Release the three latches (A) at the bottom of the cover, and then remove the cover.
MMaaiinn DDrriivvee GGeeaarrss RReemmoovvaall
Note: For a video demonstration, see Main drive gears removal.
1. Remove the left cover. See Left cover removal.
2. Place the printer on its right side.
Warning: If the printer is not placed on its right side, then the gears fall out of place when the
gear plates are removed.
148
Xerox
®
B310 Printer
Service Manual
Parts Removal
