Xerox B310 Service Manual

9 Fuser
10 Paper exit roller
The pick roller picks and the feed roller feeds the paper to the separator roller or separator pad. The
feed roller feeds the paper to the transport roller. For MPF print jobs, the MPF pick roller picks and
feeds the paper to the transport roller.
The transport rollers feed the paper to the transfer roller. At the transfer roller, the photoconductor
transfers the developed image to the paper to create the printed image.
As the paper passes the fuser, heat and pressure are applied to permanently bond the toner to the
paper.
After printing, the paper exit roller ejects the paper to the output bin.
DDuupplleexx PPrriinntt JJoobb

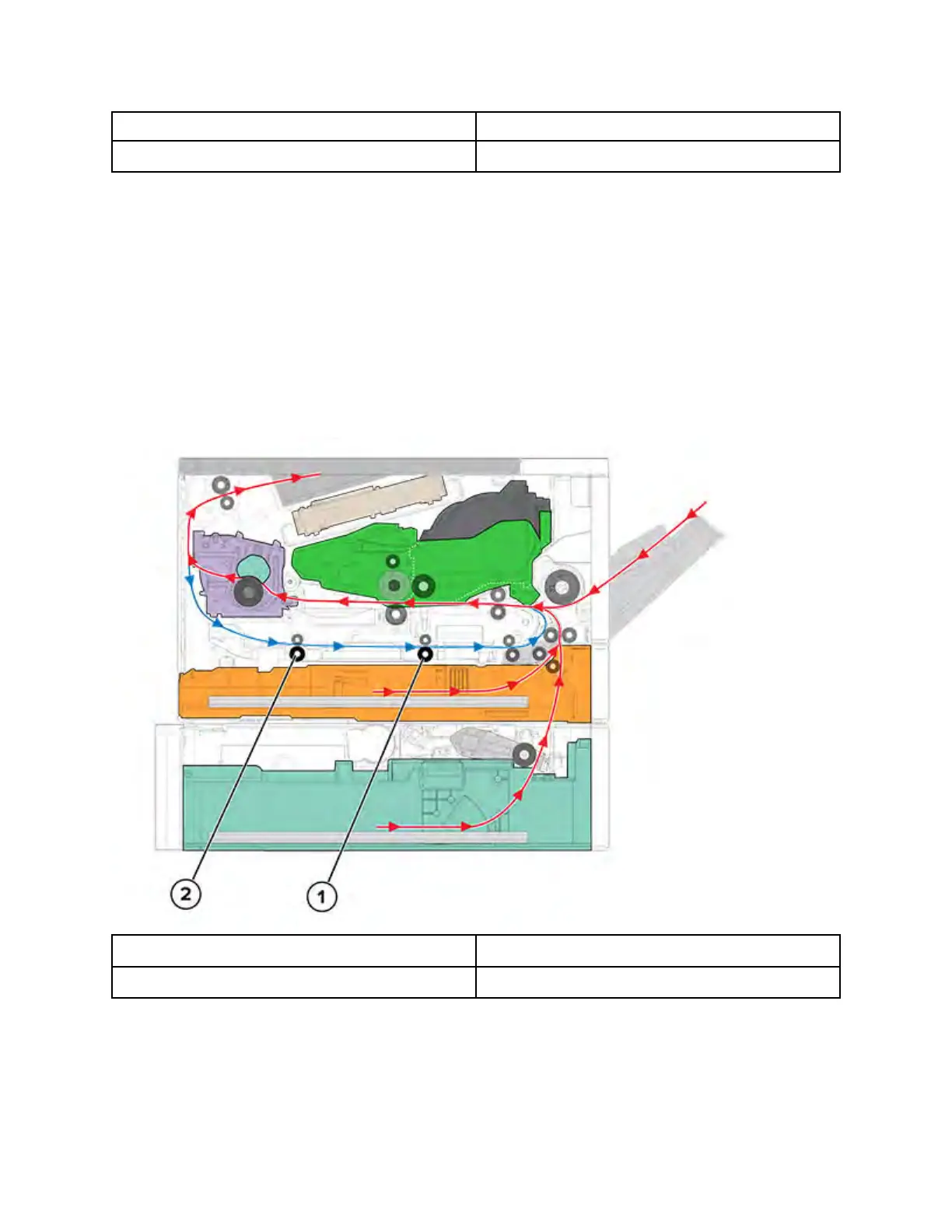

1 Duplex rear roller
2 Duplex front roller
After the first side is printed, the paper stops at the output bin while still in the paper exit roller. The
paper is fed again into the duplex paper path to have the opposite side printed.
The paper travels along the duplex path until it enters again the transport roller. From there, the
paper continues its path until the print job is done.
222
Xerox
®
B310 Printer
Service Manual
Theory Of Operation

Xerox B310 Specifications

General

Color	Yes
Print technology	Laser
Resolution color	4800 x 4800 DPI
Duplex printing mode	Auto
Warm-up time (from sleep mode)	15 s
Time to first page (black, normal)	6.7 s
Time to first page (color, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Duplex print speed (black, normal quality, A4/US Letter)	17 ppm
PCL fonts	6
Printer fonts	PCL, PostScript
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	80000 pages per month
Recommended duty cycle	0 - 6000 pages per month
Number of PostScript fonts	158
Number of print cartridges	4
Page description languages	HTML Direct Image Space, PCL 5, PCL 6, PDF 1.7, PostScript 3, XPS
Processor frequency	1000 MHz
Sound pressure level (printing)	50 dB
Sound pressure level (duplex printing)	52 dB
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Mopria Print Service
USB connector	USB Type-A / USB Type-B
USB 2.0 ports quantity	1
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 11, Windows 8, Windows 8.1
Total input capacity	251 sheets
Total output capacity	125 sheets
Paper tray 1 input capacity	250 sheets
Multi-Purpose tray input capacity	1 sheets
Custom media width	98 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Heavy paper, Labels, Letterhead, Lightweight paper, Plain paper, Pre-Printed, Recycled paper, Rough paper
Paper tray media weight	60 - 216 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Cables included	AC
Included cartridge capacity (CMY)	1500 pages
Included cartridge capacity (black)	1000 pages
Display	LCD
Control type	Buttons
Product color	Blue, White
Display diagonal	2.4 \
Market positioning	Home & office
AC input voltage	220 - 240 V
AC input frequency	47-63 Hz
Power consumption (max)	530 W
Power consumption (off)	0.2 W
Power consumption (standby)	22 W
Power consumption (printing)	360 W
Power consumption (PowerSave)	1.61 W
Harmonized System (HS) code	84433210
Operating temperature (T-T)	10 - 32.2 °C
Operating relative humidity (H-H)	15 - 80 %
Package depth	567 mm
Package width	534 mm
Package height	450 mm
Package weight	23800 g

Weight and Dimensions

Depth	421 mm
Width	442 mm
Height	308 mm
