REP 12.95-171, REP 12.96-171
Repairs/Adjustments
2. Remove the reverse roller and coupling from the reverse roller shaft, Figure 2.

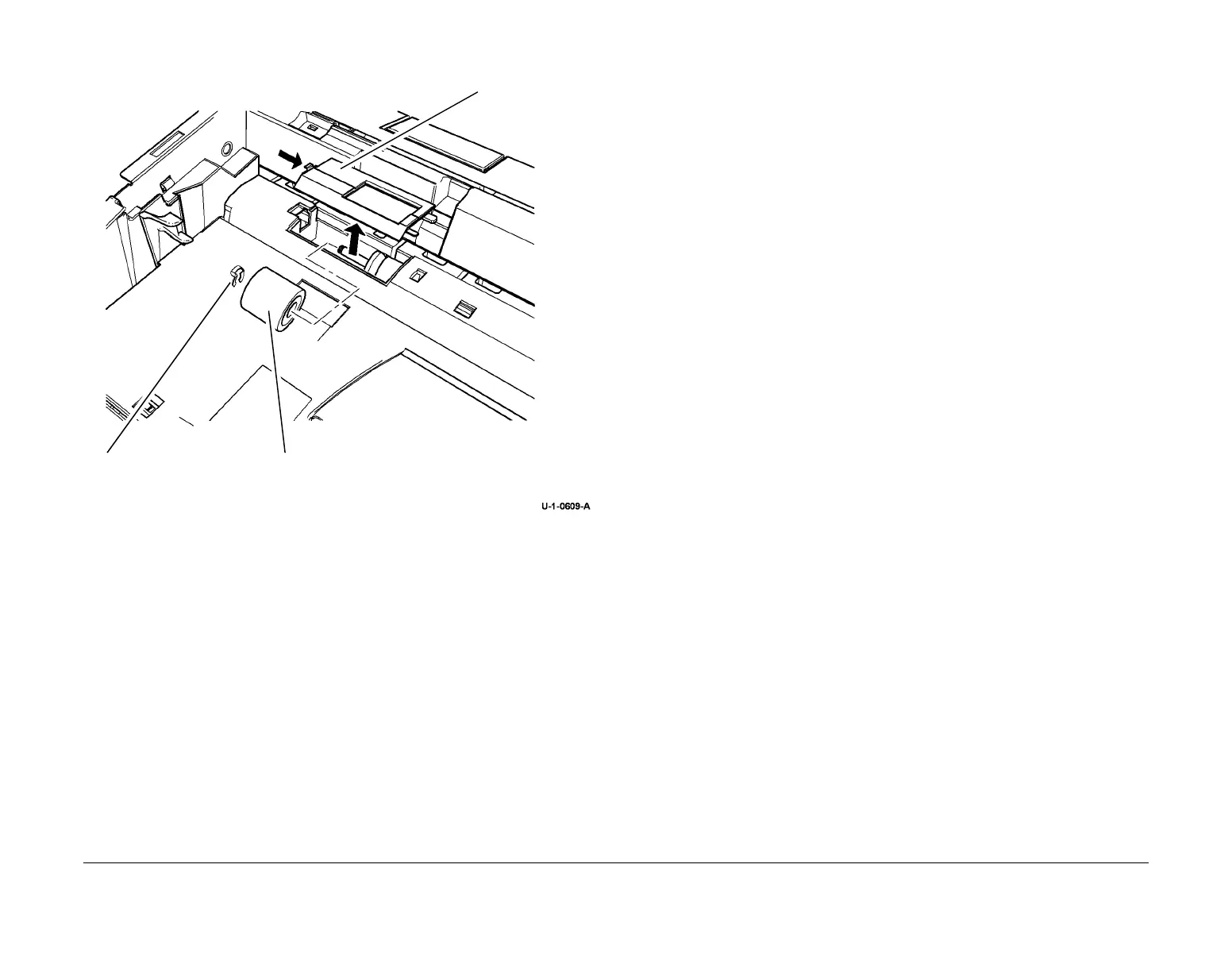

Figure 2 Reverse roller removal
Replacement
1. Reverse the removal procedure to replace the reverse and the pickup roller assemblies.
2. After replacing the pickup roller assembly close the Inserter top cover fully to engage the
link arm with the pickup roller.
3. If a new inserter pickup assembly is installed, reset the inserter feed count to zero. Refer
to dC135 CRU / HFSI Status.
REP 12.96-171 HVF Fixed and Adjustable Casters
Parts List on PL 12.100.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
CAUTION
Do not remove more than one caster at a time unless the HVF frame is properly supported and
stable.
1. Undock the Tri Folder from the HVF, REP 12.82-171.
2. Undock the HVF from the copier and remove the HVF front and rear covers, REP 12.1-
171.
3. Get help to lift and support the HVF frame securely at a position close to where the caster
is to be removed, GP 16. Support the frame approximately 4 inches (approximately 2
reams of paper) above the floor so that the caster is not supporting the unit.
3
Remove the reverse feed roller.
1
Release the tab
then remove the
retard cover.
2
Remove the clip.
cover is not shown.
