Xerox ColorQube 9303 Series Service Manual

February 2013
4-237
ColorQube® 9303 Family
REP 12.96-171
Repairs/Adjustments

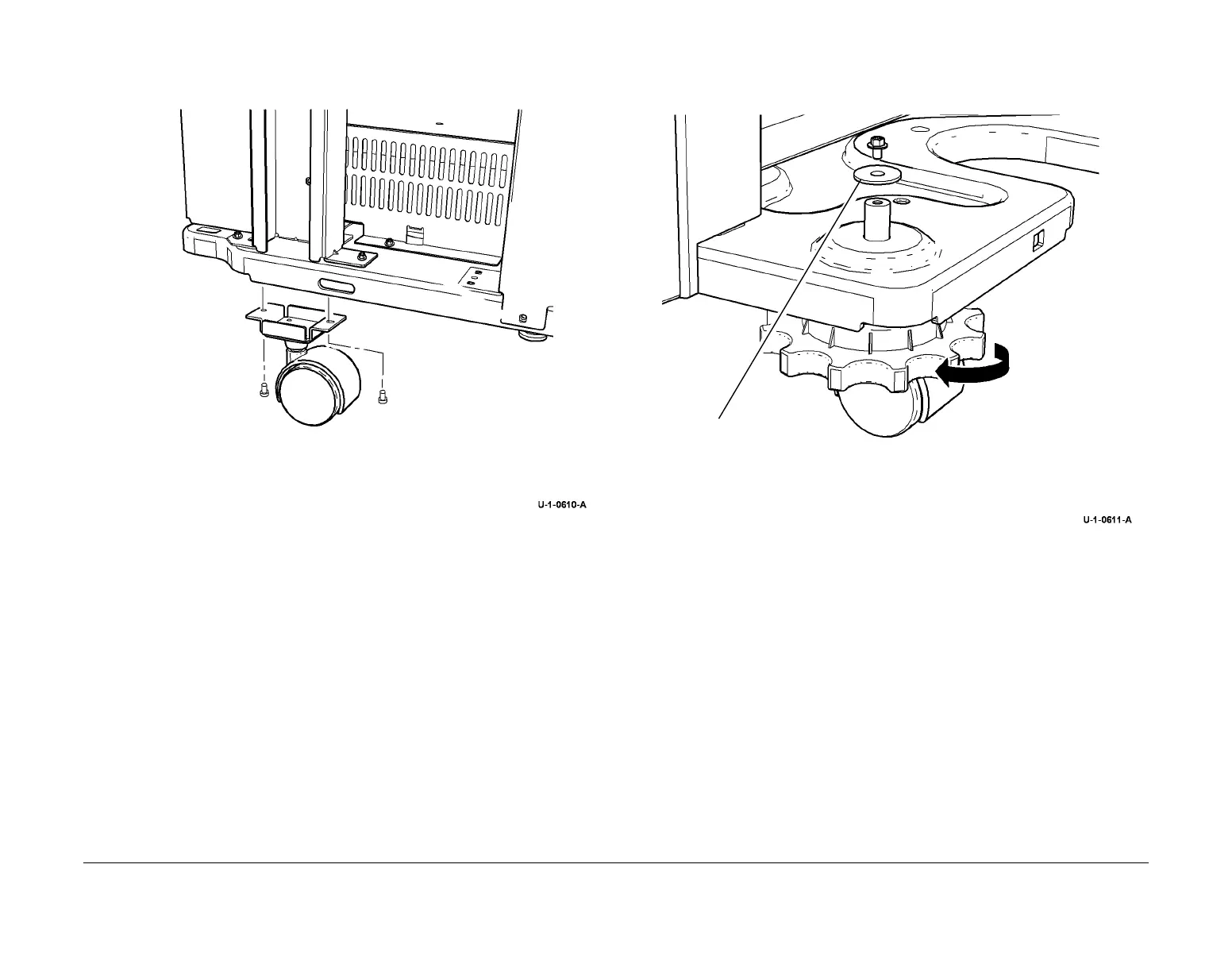

4. Remove the 2 screws and remove the fixed caster, Figure 1.
Figure 1 HVF Fixed Caster Removal
5. Support the HVF frame. Remove the screw and stop plate and rotate the caster adjust-
ment wheel to unscrew the caster from the frame, Figure 2.
Figure 2 HVF Adjustable Caster Removal
Replacement
Reverse the removal procedure to replace the HVF fixed and adjustable casters.
Stop plate
