Xerox PHASER 6121MFP - Adf Feed Roller

8-14 Phaser 6121MFP Service Manual
Service Parts Disassembly

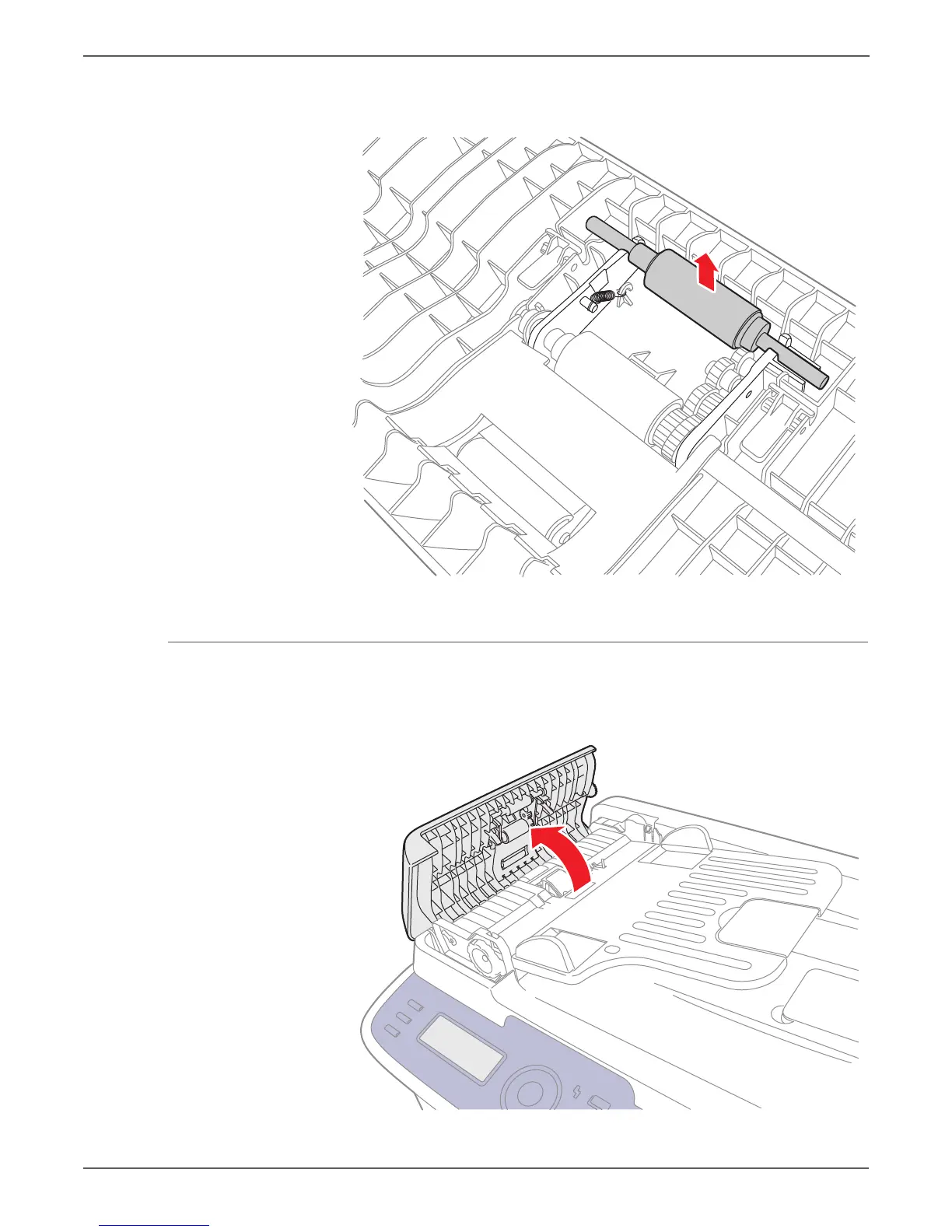

3. Unsnap the ADF Pick-up Roller shaft from the assembly, and remove the roller
from the shaft.
ADF Feed Roller
PL1.1.4
1. Open the ADF Top Cover.
s6121mfp-369
s6121mfp-203
