10-10 Phaser 6121MFP Service Manual
Wiring
Wiring Diagrams

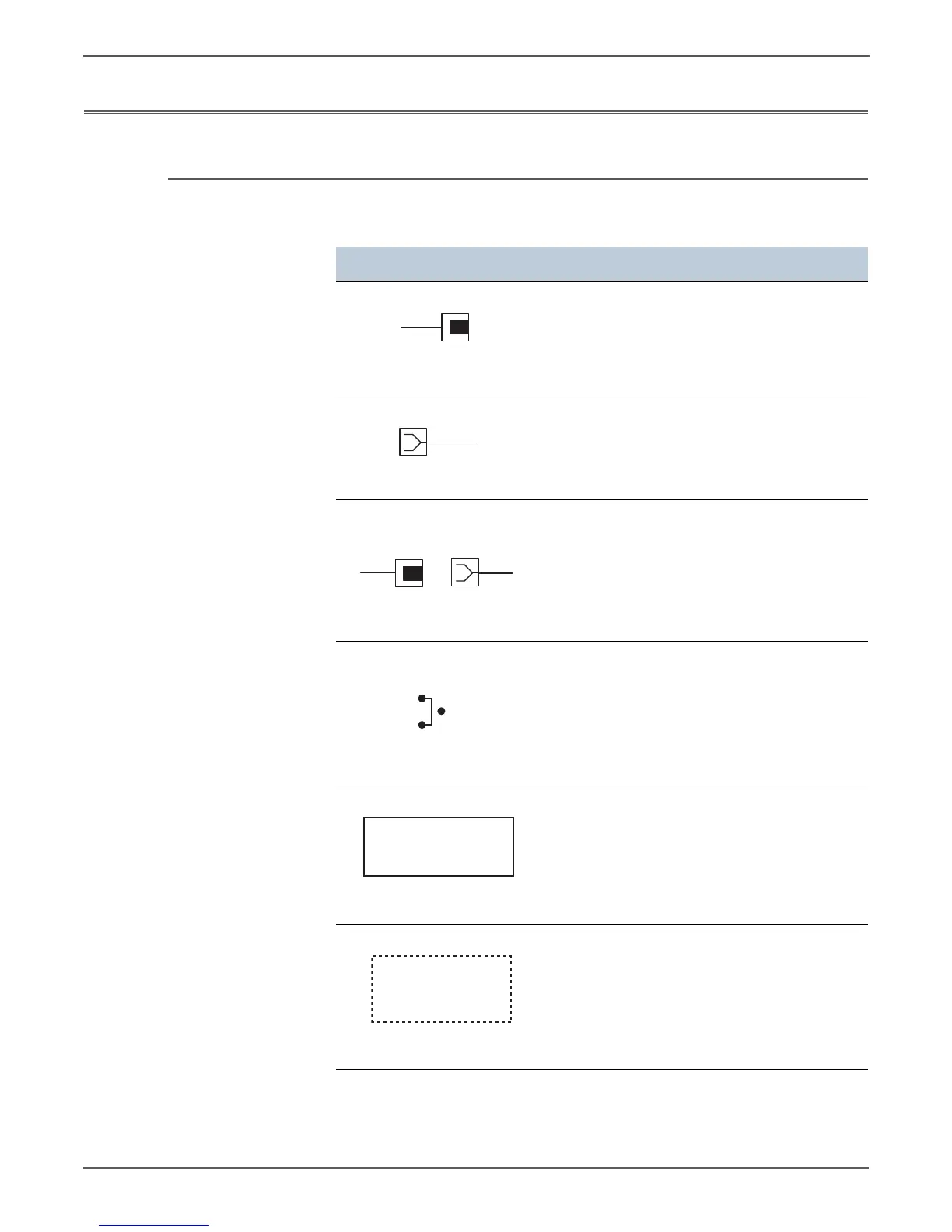

Notations Used in the Wiring Diagrams
The following table lists the symbols used in the wiring diagrams.
Symbol Description
Denotes a Plug.
Denotes a Jack.
Denotes Pin yy and Jack yy of the connector
Pxx and Jxx.
Denotes a Jumper Point (JPxxx/xxx). Each end
of the Jumper connection has a numeric
designation.
Denotes the parts.
PL X.Y.Z implies the item “Z” of plate (PL) “X.Y”
in Parts List.
Denotes functional parts attached with
functional parts name.
Jack
Fuser
PL X.Y.Z
Subassembly 1
To Next Page
